EASY UP 4310

A
V
1
5
4
3
1
0
Quantity:

Description



WARNING!

  The AV154310 model was replaced by the new product configuration AV3121A3242G, for a new equivalence you must add this accessory adjustable heelrests (AC0686), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.






Gas spring height adjustment, electric lift with elongated seat.

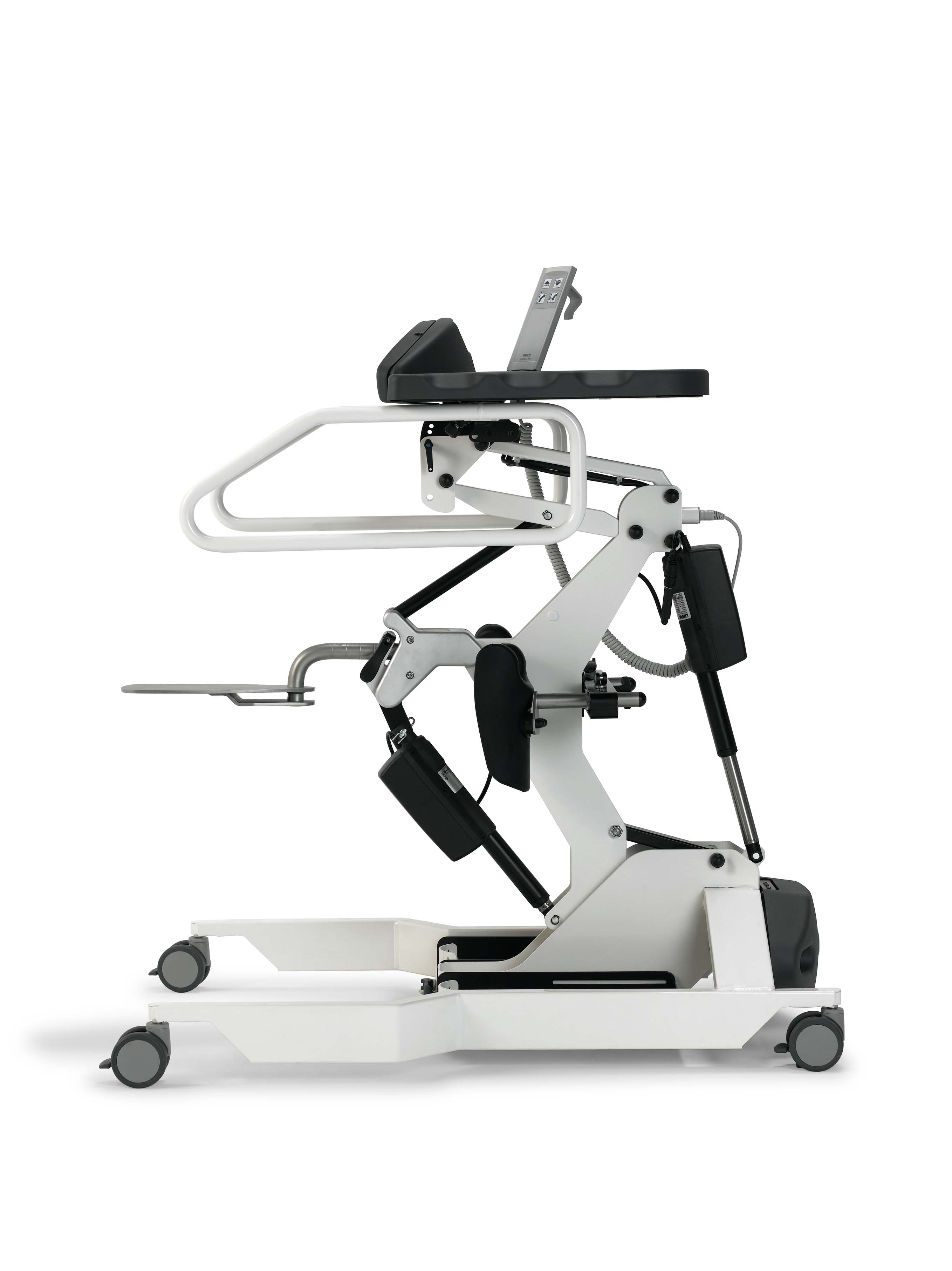

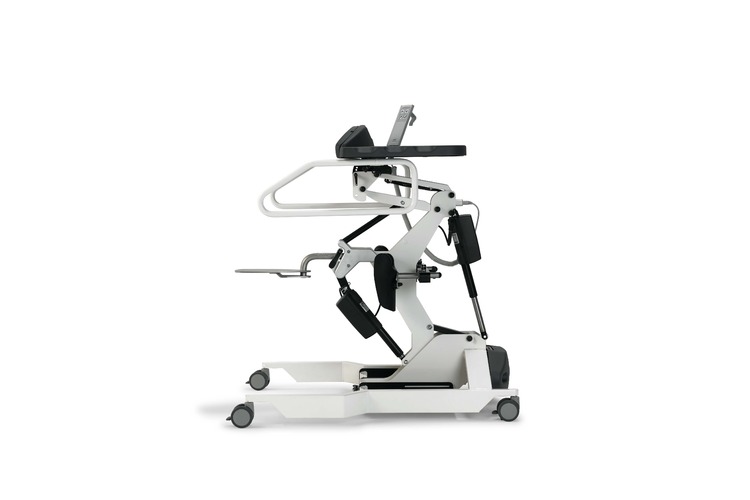

(The product pictures referes to item code AV 15 2410)


This technology enables the user to assume and maintain an upright position, and to move indoors with the assistance of a carer.
The user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor operated by hand control, while the movement of the movement of the thoracic support accompanies them throughout the lift.
The thoracic support has a safety sensor for the user to stop the standing sequence at any time. A series of adjustment ensure the aid can be adapted to the user's morphological characteristics. Bigger tray.
In particular, the main body can adjust to the user's height by means of a gas spring assisted system, or electrically via a motor unit. To better restrain the trunk at the sides, the handles can be tilted and adjusted in depth.

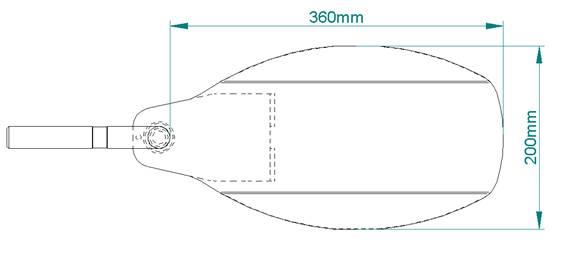

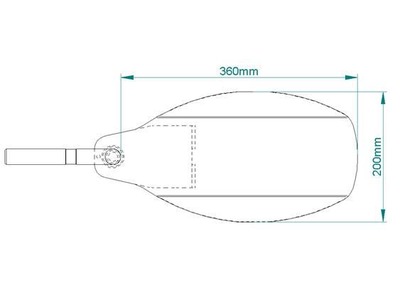

The seat, elongated and fixed, is designed to help the user transfer from their wheelchair to the aid.

Accessories

Accessories

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.

Foot Strap

AC0047
Foot strap to stabilize the feet on the plates.

Pocket For Long Seat

AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.

Lateral Supports

AC0049
Soft supports for the lateral restraint.

Lateral/Posterior Supports

AC0050
Soft supports for better lateral and posterior restraint.

Long Handles

AC0051
Long handles with supports for lateral and posterior restriant.

Axillary Support

AC0072
Axillary support.

Rear Body Support

AC0074
Rear body support

Locking Devices

AC0075
Locking devices

Head Support

AC0076
Head support

Stability Grip

AC0440
Stability grip for more stability in case of specific needs.

Long Seat Padding

AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.

Back Strap

AC0783
Back restraint strap. Applied by an assistant. One size only.
Technical Spec.

Technical Spec.

Weight:
53 kg
Maximum load:
140 kg
User height:
min 140 cm - max 200 cm
Handles-thoracic support assembly:
movable - can be lifted up
Servo-assisted lift:
electric
Structure height adjustment:
gas
Overload protection:
electronic
Overload indicator:
acoustic and visual
Parking brake:
on all 4 casters
Frame height from ground:
31 mm
Operation time (lift):
about 30 lift cycles with user weighing 140 kg and charged batteries
Average battery charging time:
6 - 8 hours
Battery charging level:
multi-color display on equipment
Auto off:
as standard
Fault diagnostic and maintenance:
on display
Lift stop button:
as standard
Lift stop button inhibit:
as standard
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0397877
Documents

Documents


Le regolazioni della serie EASY UP

Brochure
Language: Italian
DOWNLOAD
PDF 359.82 KB

Leaflet EASY UP

Brochure
Language: Italian
DOWNLOAD
PDF 480.96 KB

Adjustments for the EASY UP Series

Brochure
Language: English
DOWNLOAD
PDF 366.04 KB

EASY UP Leaflet

Brochure
Language: English
DOWNLOAD
PDF 443.66 KB

EASY UP Leaflet

Brochure
Language: French
DOWNLOAD
PDF 478.25 KB

EASY UP Leaflet

Brochure
Language: Spanish
DOWNLOAD
PDF 447.13 KB

AV154310 - User and maintenance manual

User and Maintenance Manual
Language: Spanish
DOWNLOAD
PDF 791.71 KB
Register to access the content

EASY UP Leaflet

Brochure
Language: German
DOWNLOAD
PDF 452.72 KB

EASY UP Leaflet

Brochure
Language: Dutch
DOWNLOAD
PDF 675.27 KB

AV154310 - User and maintenance manual

User and Maintenance Manual
Language: Dutch
DOWNLOAD
PDF 816.36 KB
Register to access the content

EASY UP Leaflet

Brochure
Language: Polish
DOWNLOAD
PDF 704.41 KB

AV154310 - User and maintenance manual

User and Maintenance Manual
Language: English/Italian
DOWNLOAD
PDF 1.7 MB
Register to access the content

AV154310 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 176.56 KB
Register to access the content
