Description

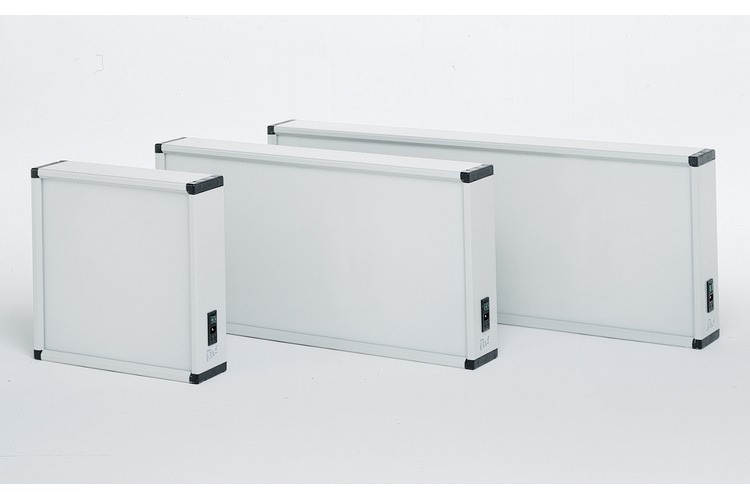

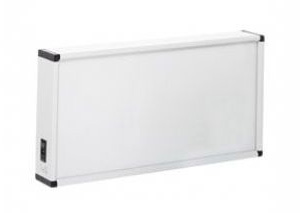

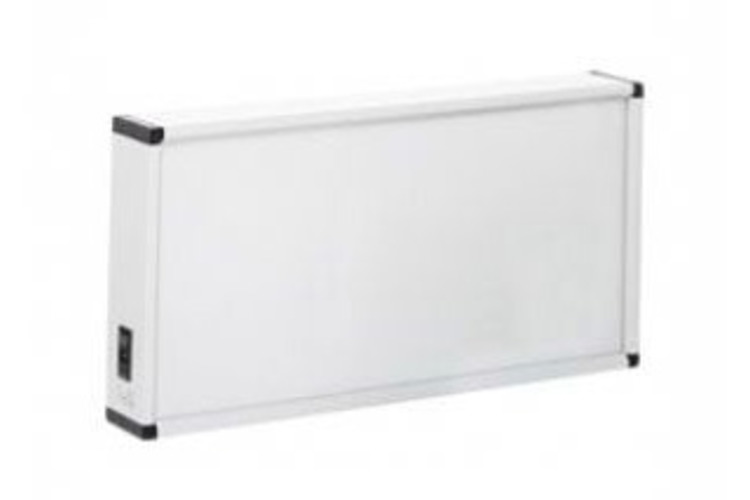

Dedicated professional high quality Xray viewer. 3 cold cathode fluorescent lamps (33W each, total 100W) provide a uniform and flicker-free light distribution to facilitate accurate film reading without eye strain. Body made from oven-baked epoxy powder aluminium profiles with built-in X ray film clips. The various sections are held together with nylon corner joints. Lamp fitting gives off cold light with an acrylic opalescent white plate. The unit must be fixed it to the wall by two hooks.

Technical Spec.

Technical Spec.

Dimensions:
90 x 12 x 43 h cm
Colour temperature:
4000 K
Illumination:
3 fluorescent lamps, 33 W each (100 W total)
Power:
220 V - 50/60 Hz
Regulations:
EEC 62-5 Directive 89/336
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 101 x 55 x 20 h kg 10 mc 0.1111
Documents

Documents


Scheda tecnica

Insights
Language: Italian
DOWNLOAD
PDF 87.37 KB

06215 - User and maintenance manual

User and Maintenance Manual
Language: English/Italian
DOWNLOAD
PDF 7.08 MB
