CHILDREN'S PARALLEL BARS PLUS 2M

0
1
3
9
1
Quantity:

Description

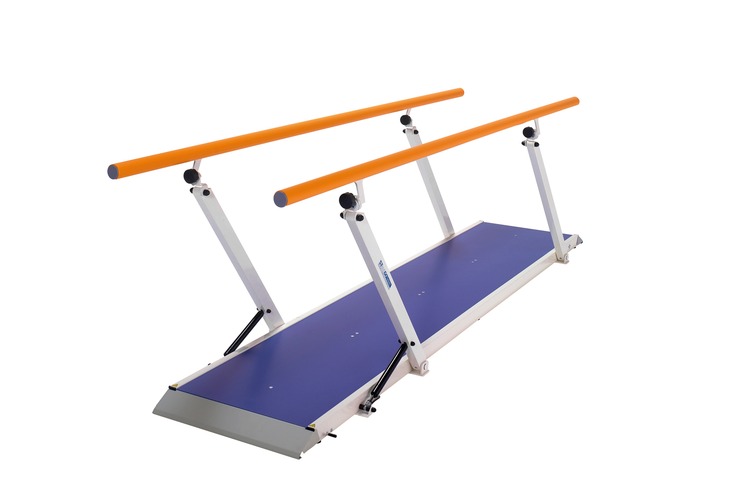

This is a 2-meter long parallel bar system for children, dedicated for the physical therapy and rehabilitation training activity. Height adjustment 62 ÷ 80 cm. It consists of a painted steel framework and a wearproof bi-laminated wooden platform, equipped with access ramps, thermoplastic and non-slip handrails. All parts can easily be washed.

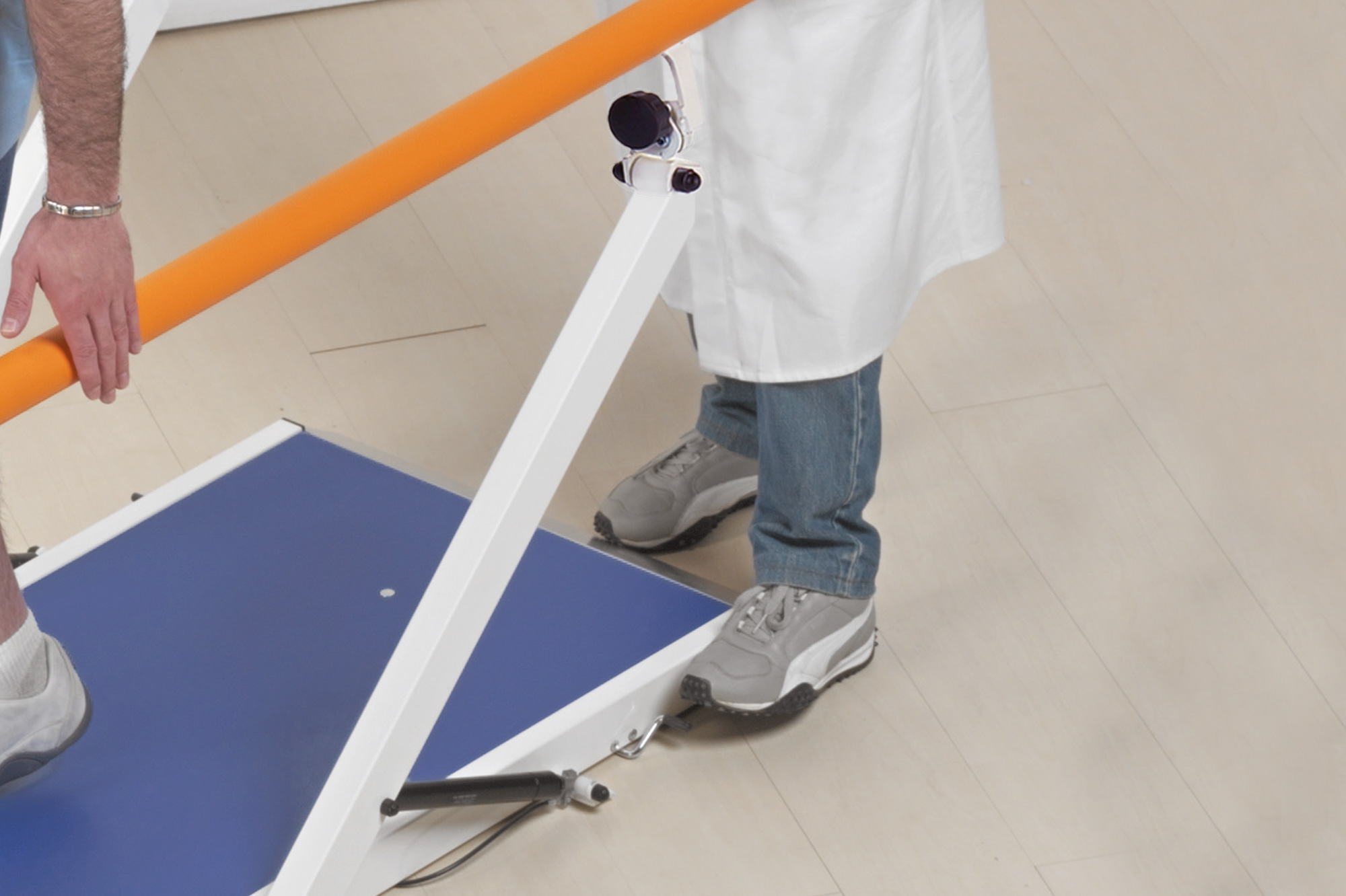

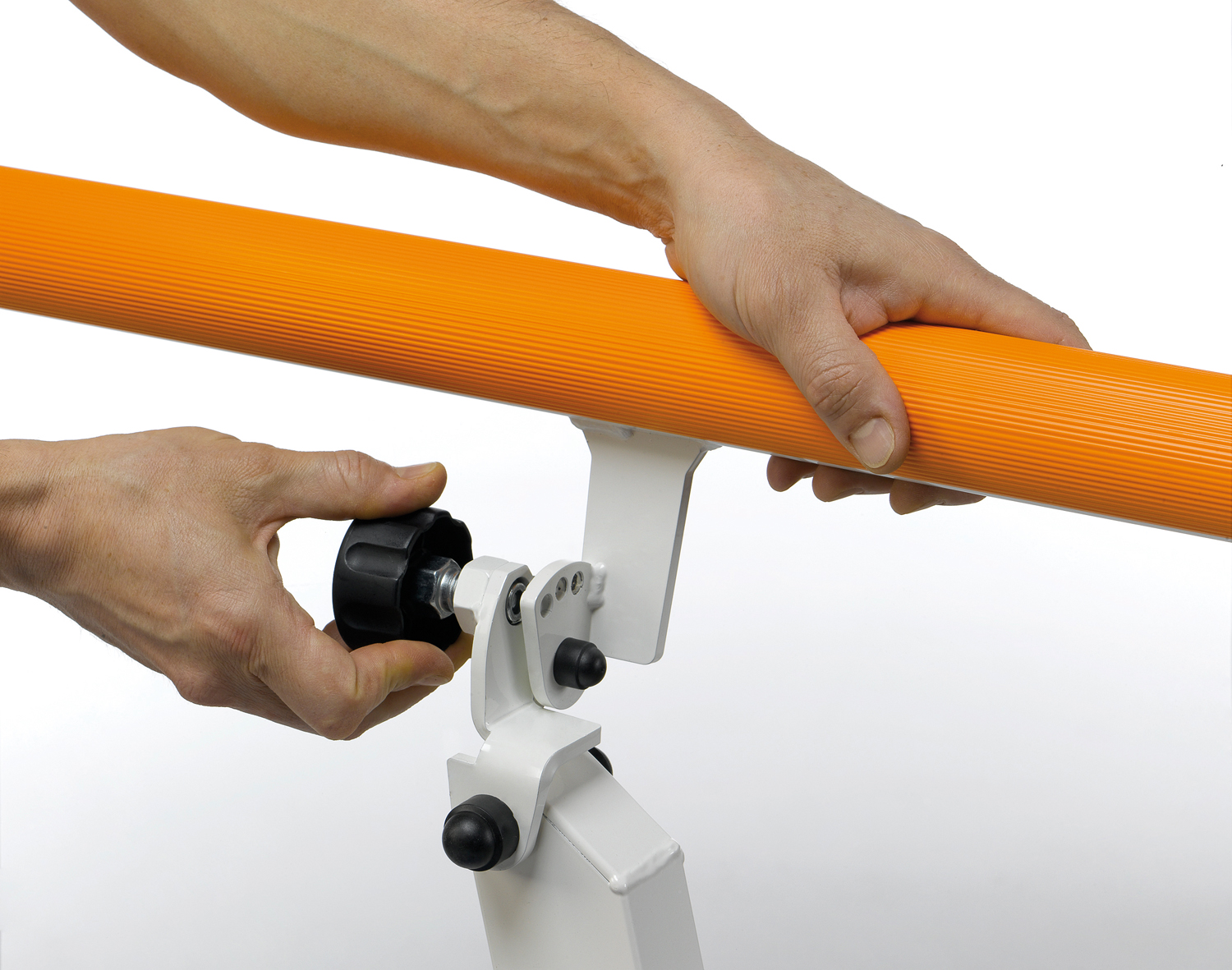

These parallel bars can be adjusted in height with the innovative “STandGOSystem™”, which allows immediate adaptation to the body of the user – both adults and children. The height of the handrails can also be modified during rehabilitation. Additionally, the distance between the handrails can be adjusted.



Thermoplastic modules or bags can be used on the platform to create specific therapeutic rehabilitation walk paths.



The modularity allows creating parallel bar systems of the desired length by removing the access ramps from the coupling side.



Accessories

Accessories

Obstacle-Hurdle Modules

01330
Pair of modules with a magnetic catch.

Cart For Portable Walk Paths

01335
It is in painted steel and can be used for every type of module (empty).

Set Of Therapy Walk Paths

01379
A series of thermoplastic modules and bags containing different materials can be used as accessories to create ambulation walkpaths.

Parallel Bar Glider

01380
Parallel bar glider applicable to all parallel bars. It offers greater support to the person during ambulation.

1 Kg Gait Bag

02400
Walking sand bag, 1 kg

2 Kg Gait Bag

02410
Walking sand bag, 2 kg

3 Kg Gait Bag

02420
Walking sand bag, 3 kg

300 G Motor Training Bag

02500
300 g motor training bag. Contains PVC granules. Four cover colors available.

Motor Training Bag Set

02510
Motor training bag set. It includes 16 motor training bags.

Set Of Sensory Bags

08585
It includes 12 bags containing different materials in order to offer different support sensibility.

Rolls And Bags

08586
Pair of modules, including awooden roll and a sensory bag.

Sensory Modules

08587
Pair of thermoplastic textured modules for ambulation walk paths

Hemispheres

08589
Pair of thermoplastic modules with hemispheres.

Concave-Convex

08591
Pair of concave-convex thermoplastic modules.

Limit Bar

AC0550
The limit and support accessory can be requested to assist the user with changing the walking direction, and extending the therapeutic rehabilitation course.
Technical Spec.

Technical Spec.

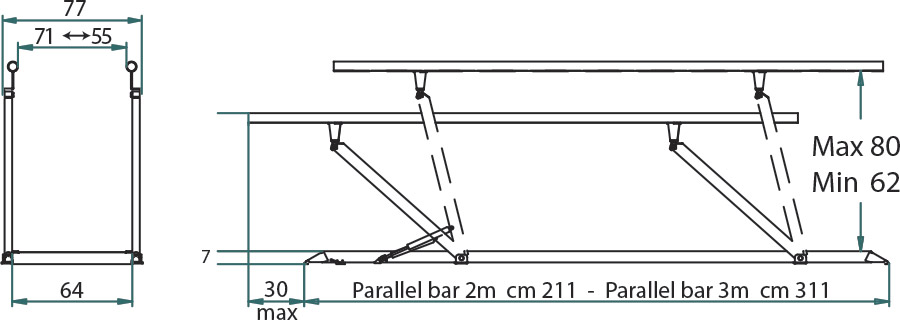

Max dimensions (cm):
211 x 81 x 87 H
Handrail height adjustment system:
double gas sprint
Min – max handrail height (cm):
64 ÷ 80
Handrail width adjustment system:
Manual, 3 positions
Handrail width min - max (cm):
55 ÷ 71
Individual handrail loadbearing capacity:
135 Kg
Modularity (combination of more parallel bars):
Removable access slide
Weight:
71 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0085086
Video

Video

Documents

Documents


Parallel bars and stairs Plus line

Power Point presentation.
Insights
Language: English
DOWNLOAD
PDF 1.04 MB
Register to access the content

01391 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 282.84 KB
Register to access the content

01391 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 581.4 KB
Register to access the content

01391 - User and maintenance manual

User and Maintenance Manual
Language: French
DOWNLOAD
PDF 503.88 KB
Register to access the content

01391 - User and maintenance manual

User and Maintenance Manual
Language: English/Italian
DOWNLOAD
PDF 1.36 MB
Register to access the content

01391 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 202.08 KB
Register to access the content
