ADJUSTABLE HEIGHT WORK TABLE

0
8
4
6
1
Quantity:

Description

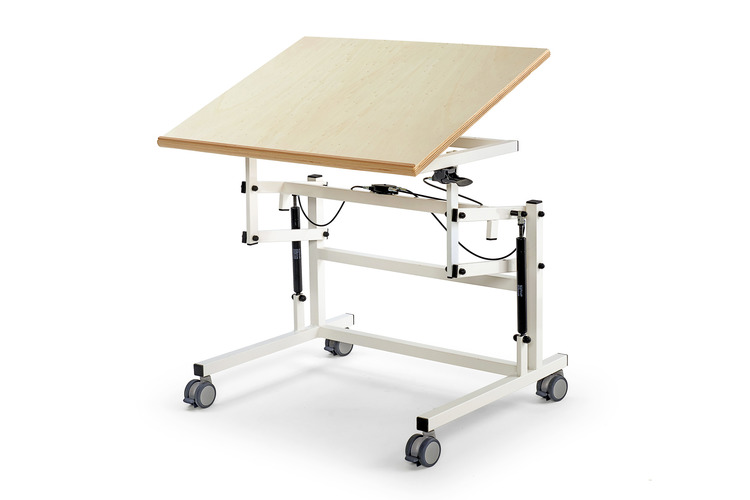

Our one section occupational table is adjustable in height from 68 to 105 cm by two quality gas springs, and an ergonomic handle located under the work surface. This handle can be reached effortlessly with one hand; it activates the springs for quick, silent and easy adjustment up to the desired height of the top.
This feature allows the user to work in a sitting or standing position, or in an alternative position suitable for the user.

The top is made of wood, thickness of 2.3 cm. It is also adjustable in inclination up to 45°; this particular feature enables the user to adjust the wooden board to numerous intermediate degree.

Moreover, the edges of this table top are curved and is characterized by a solid steel structure painted with white epoxy powders. It is equipped with 75 mm diameter swivelling, non-marking wheels with individual brake. Our table can , therefore , be easily moved or transferred from one place to another. The structure was designed for wheelchair accessibility.

Accessories
01608 Hand anchor ; 01609 Hand-Wrist grip.

Accessories

Accessories

Hand Anchor

01608
This ergonomic anchor can be applied to any smooth surface to achieve greater stability and safe positioning of the hand.
Ask for quotation

Hand-Wrist Grip

01609
This is provided with a resting pillow and Velcro wristband to ensure the hand is positioned in total safety.
Ask for quotation
Technical Spec.

Technical Spec.

WORK SURFACE
Material:
wooden
Number of sections:
1
Tiltable section (WxD):
90 x 70 cm
Tilt adjustment system:
+45°, by double rack
Type of adjustment:
manually
Work surface thickness:
2.3 cm
Rounded edges:
yes
Overall surface dimensions:
90 x 70 cm
FRAME
Steel frame:
epoxy coating painting
Frame height adjustment system:
68 ÷ 105 h cm, by 2 gas springs
Type of adjustment:
manually (by ergonomic handle)
Wheels:
4 anti-tracking with individual brake
Casters:
Ø 7.5 cm
Weight:
20 kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0175340

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 86 x 97 x 76 h kg 31.5 mc 0.633992
Video

Video

Dynamic 3D rendering
Documents

Documents


Manuel d'utilisation et entretien

Manual
Document date: 24/06/2021
Language: French
Version: V 1.1
DOWNLOAD
PDF 15.54 MB
Register to access the content

User and maintenance manual

Manual
Document date: 24/06/2021
Language: Italian, English
Version: V 1.1
DOWNLOAD
PDF 906.61 KB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 102.55 KB
Register to access the content
