Description

Swedish beech-wood wall bars with single span, are natural varnished and supplied with anchoring white steel clamps galvanized.

The white steel clamp have to be used at the four angles to fix the wall bars.

The wall bars are made up of 14 ovoid rungs. They have a diameter of 3,5 cm and there is a space of 14 cm between each other.

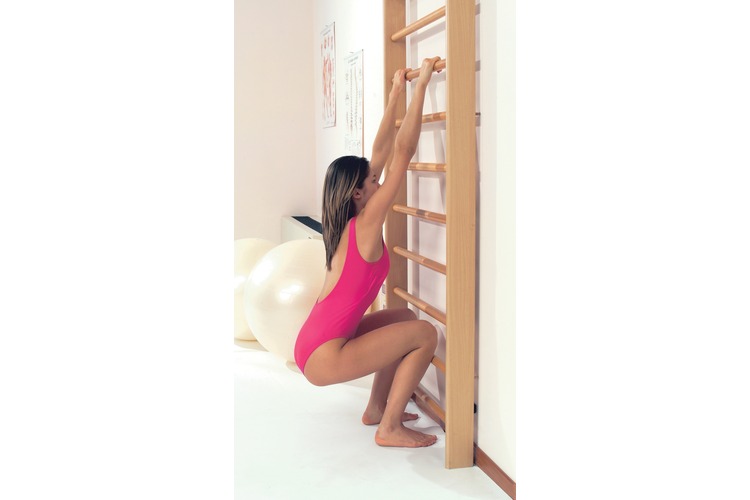

The wall bars can be used to carry out some gymnastic and rehabilitation exercises: muscle and joint stretching, corrective exercises of various paramorphisms and they can also be used by children for exercises of joint looseness.



The two rungs on the top are positioned one more projecting and the other more re-entering to make it possible some suspension exercises or passive cervical tractions.



For further exercises are available some accessories such as the suspension frame (code 07910), the abdominal board (code 04720) and the backrest (code 04710).





SUPPLY

  • User manual "Back pain" with 37 exercises (Ed. Italian only);
  • Wall fixing set.
Accessories

Accessories

Back School - Volume 1 - By Benedetto Toso

01240
BACK SCHOOL - NECK SCHOOL – BONE SCHOOL Programming, organizing, performing and checking

Back School - Volume 2 - By Benedetto Toso

01241
BACK SCHOOL - NECK SCHOOL – BONE SCHOOL Specific work programs for rachis pathologies.

Mat 3

01301
Folding mat covered with Carbon cloth. Dimensions 150 x 60 x 1 h cm.

Mat 6

01302
Folding mat covered with Carbon cloth. Dimensions 155 x 60 x 3.5 h cm.

Wallbars Handbook

01948
Exercise manual for back pain therapy and prevention using the wall bars. Printed in May 2016; 20 pages; Italian edition.

Dvd "Home Wall Bars"

04560.DVD
This dvd illustratesa range of exercises devised in collaboration with doctors and specialists for those who suffer from back pathologies.

Backrest

04710
Backrest for wall bars. Padded and covered with washable vinyl. Provided with hooks. Dimensions 31 x 16 x 48 h cm.

Abdominal Board

04720
Bench for abdominal exercise with steel frame with padded top. Neck pad and adjustable foot blocks. Dimensions 196 x 32 x 32 h cm.

Small Bench

04820
Small bench with painted steel frame, padded surface covered with washable synthetic leather. Dimensions 60 x 30 x 42 h cm

Ginny Bench

04840
Bench with painted steel frame, reclining and padded top covered with washable vinyl. Dimensions 120 x 30 x 42 h cm.

Pivetta Bench

04850
Painted steel frame, padded surface covered with washable synthetic leather. Dimensions 128 x 28/23 x 42 h cm.

Suspension Frame

07910
Painted steel frame with grid, can be attached to the wall bars.

Standard Pulley

07950
Basic element to be used in combination with snap hook to configure the exercises.

Nylon Rope 1 M, ø 6 Mm

07980
Blue Nylon rope, Ø 6 mm, sold by meter.

Nylon Rope 30 M, ø 6 Mm

07981
Set of 30 m long nylon rope, Ø 6 mm, color blue.

Rep Cord - 7.6 M - Green

31220
Elastic tubing for rehabilitation exercises, latex and odor free. Color: green Level: 3. Length: 7.6 m

Rep Cord - 30.5 M - Green

31300
Elastic tubing for rehabilitation exercises, latex and odor free. Color: green Level: 3 Length: 30.5 m.

Ankle Support 1

AC0059
Black leather padded ankle strap support for pulley therapy exercises (sold as single piece)

Wrist Support

AC0060
Padded strap with black synthetic leather lining and a chromed ring.

Snap Hook

AC0094
Basic multi-purpose element, used to safely link the grid / frame and the various pieces of equipment.

Plastic Clamps For Rep Cord

AC0292
This device allows for an elastic to be properly secured to the snap hooks or directly to the tool attachment ring.

Handle 2

AC0298
30 mm diameter handle with non-slip grip, with 35 mm diameter chromed attachment ring.

Hand-Wrist-Ankle Strap

AC0299
Strap indicated for use during suspension exercises or as ankle strap.

Exercise Bar

AC0302
Coated tubular metal bar with 3 rings for attachment to a rope and other tools through a snap hook, depending on the exercise set up by the therapist.
Technical Spec.

Technical Spec.

Dimensions:
90 x 250 h cm
Safety working load:
125 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 252 x 26 x 95 h kg 26 mc 0.62244
Video

Video

Documents

Documents


04540 - User and maintenance manual

User and Maintenance Manual
Document date: 19/02/2016
Language: English/Italian
DOWNLOAD
PDF 305.52 KB
Register to access the content

04540 - Declaration of Conformity

Declaration of conformity
Document date: 11/01/2016
Language: English/Italian
DOWNLOAD
PDF 106.5 KB
Register to access the content
