Description

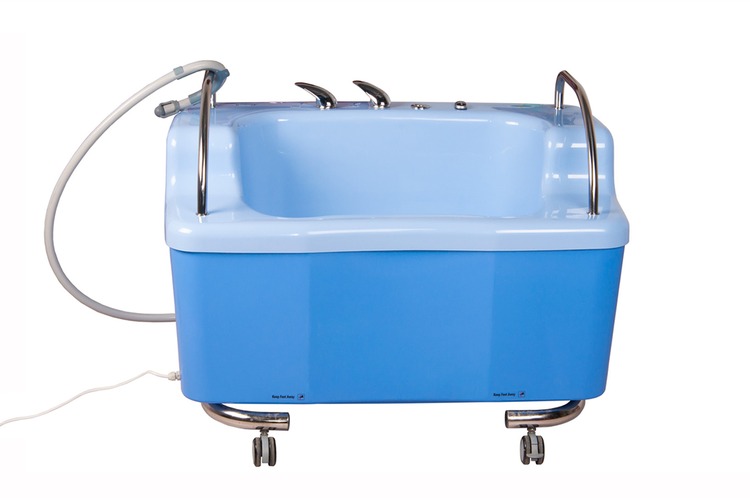

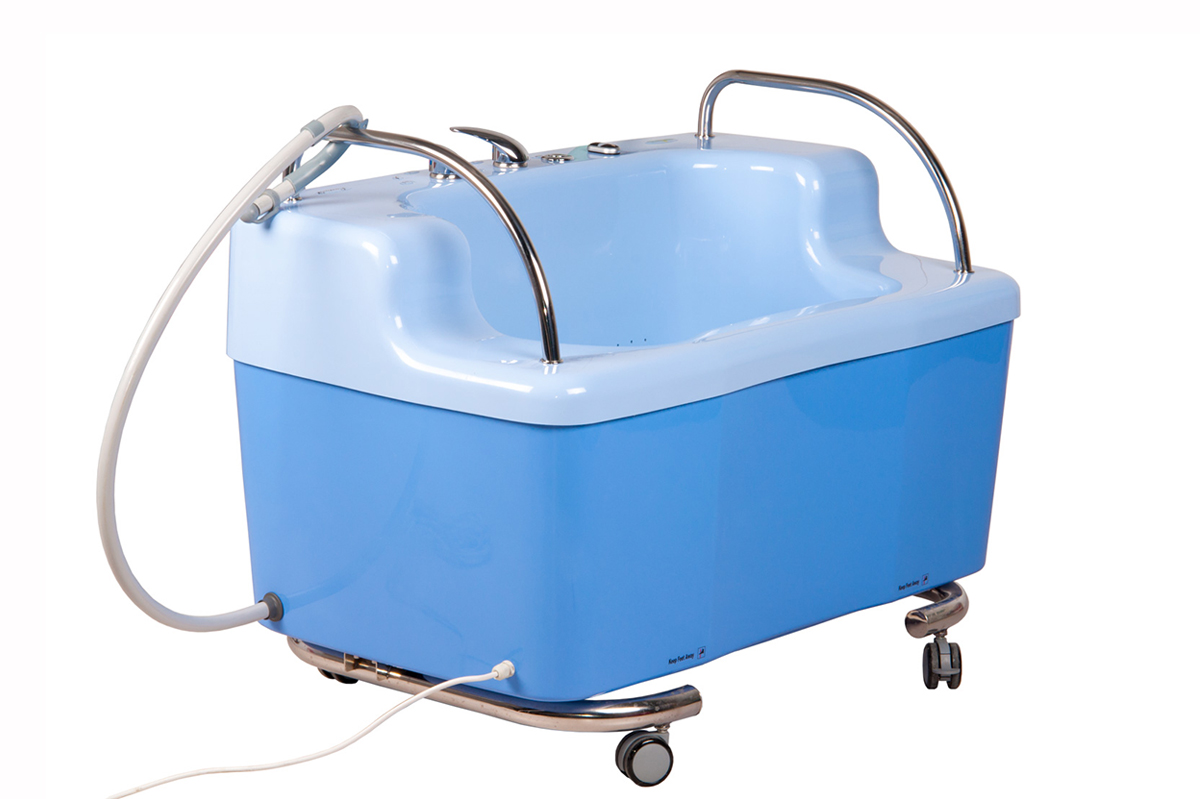

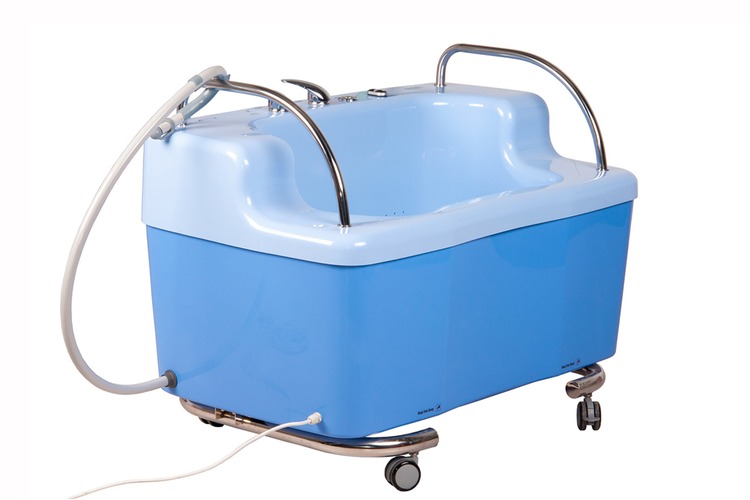

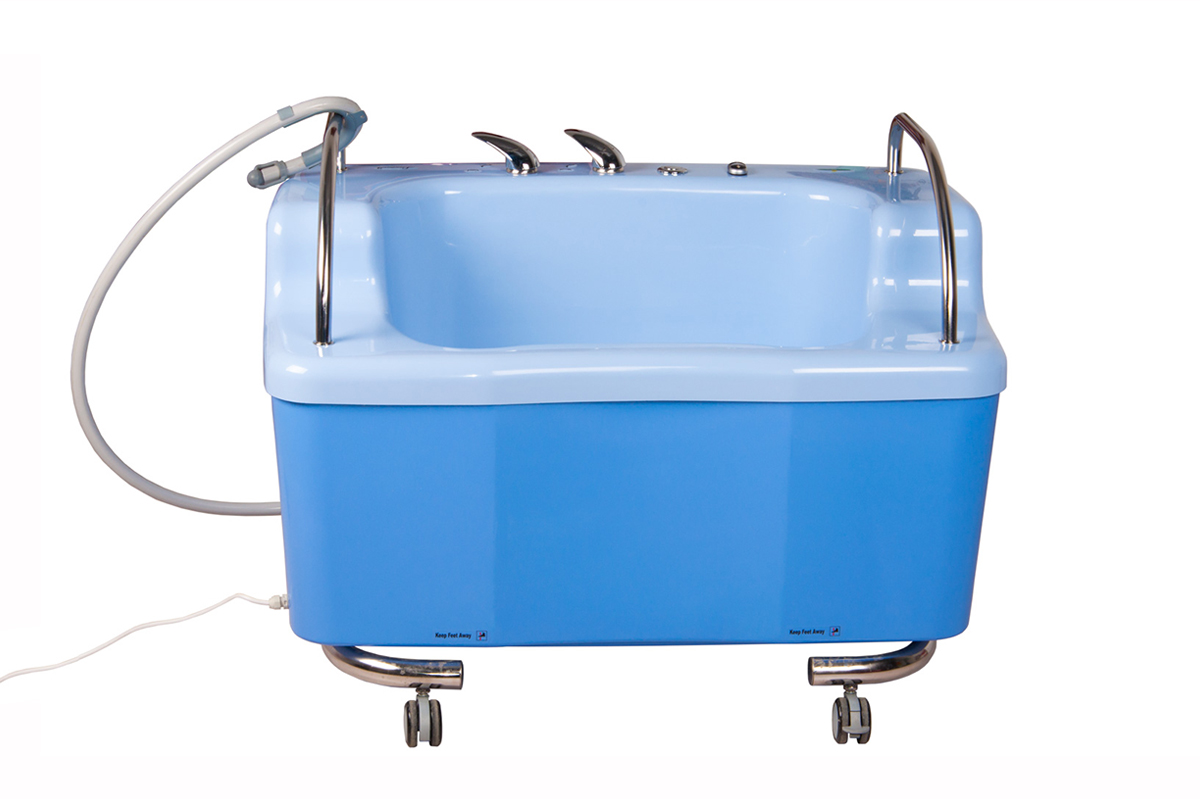

This hydrotherapy bathtub has been specifically designed for use in a pediatric environment. Suitable for rehabilitation treatments on children up to two years.

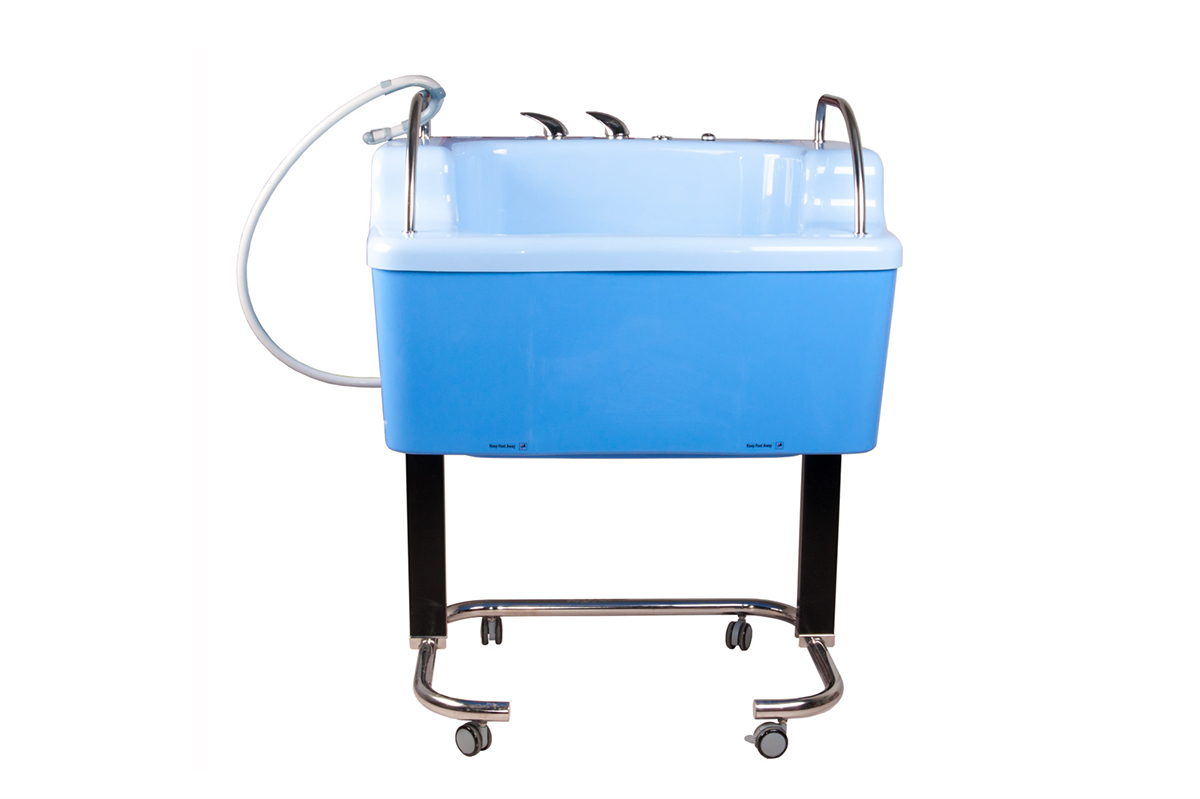

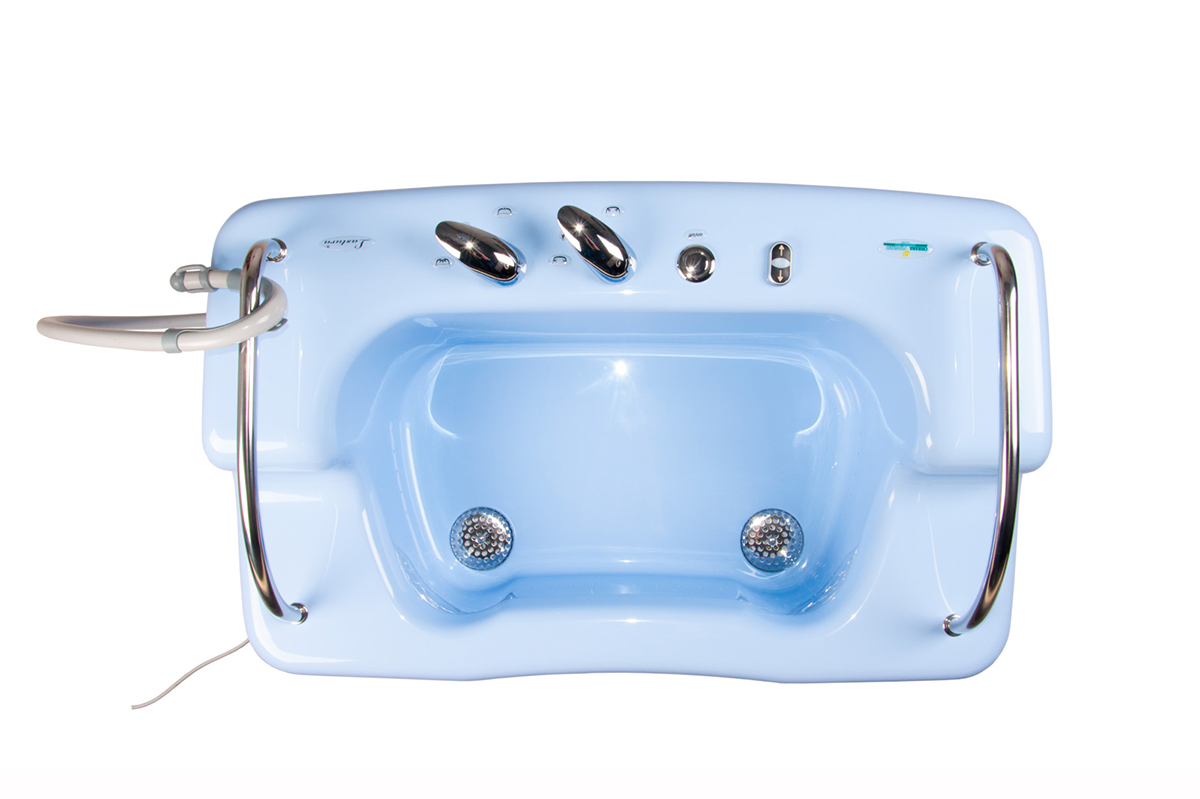

The casters facilitate transfer between rooms. Standard equipment: two massage areas, with 24+10 massage water jets. Jet intensity can be adjusted in every area. Height can be adjusted on two levels.

Accessories

Accessories

Electro-Magnetic Anti-Scaling System

CH0006
Electro-Magnetic Limescale-Removing system
Technical Spec.

Technical Spec.

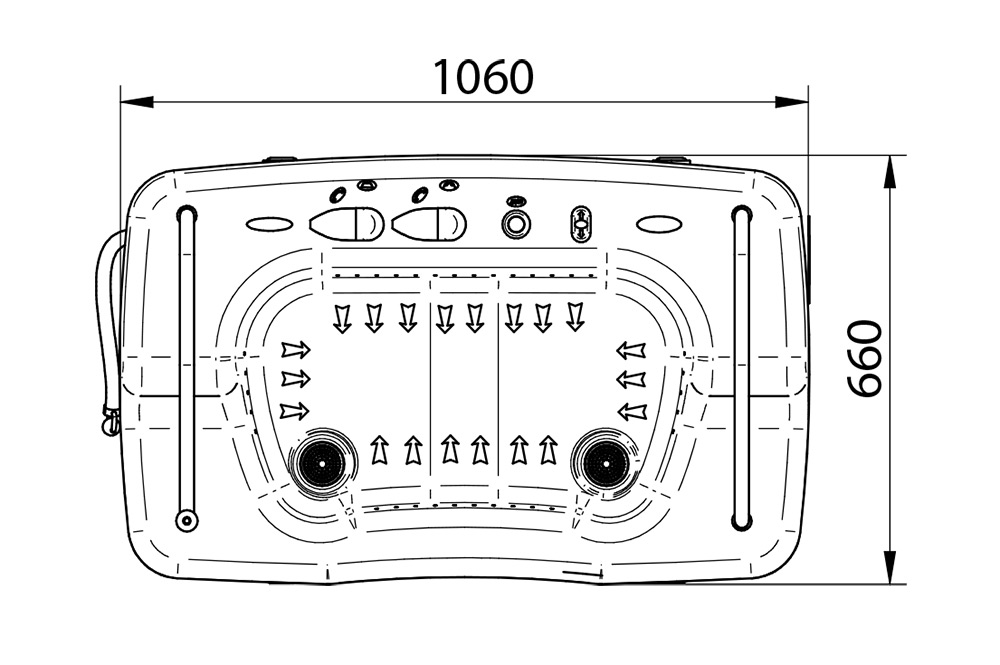

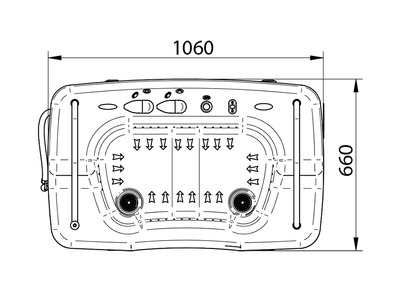

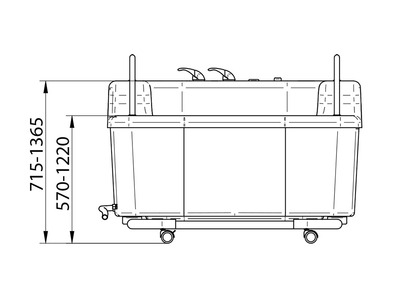

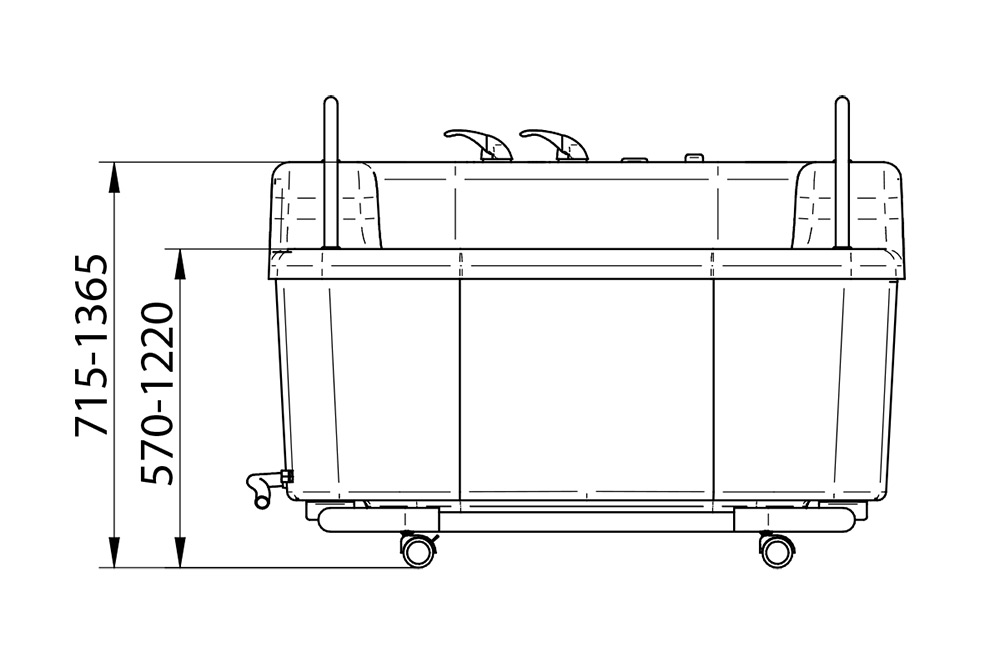

Dimensions:
106 x 66 x 79.5-144.5 h cm
Tub useful capacity:
30 l
Tub max. capacity:
42 l
Weight:
71 kg
Max. hot water temperature:
60°C
Filling time - usefull capacity:
1.3 min
Drainage time - usefull capacity:
2.5 / 3.2 min
Power supply:
230 V / 50(60) Hz
Power input:
600 VA
Electric protection:
class I
Protection degree:
IP 54
Gallery

Gallery

Documents

Documents


CH5100 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 462.16 KB
Register to access the content

CH5100 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 216.99 KB
Register to access the content
