Description

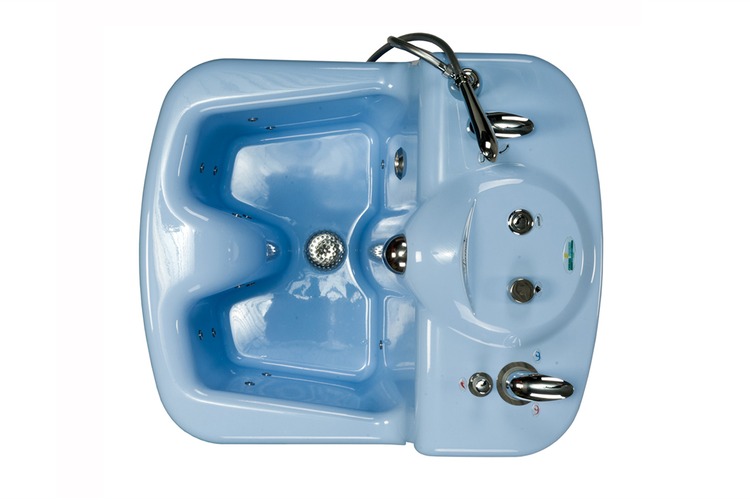

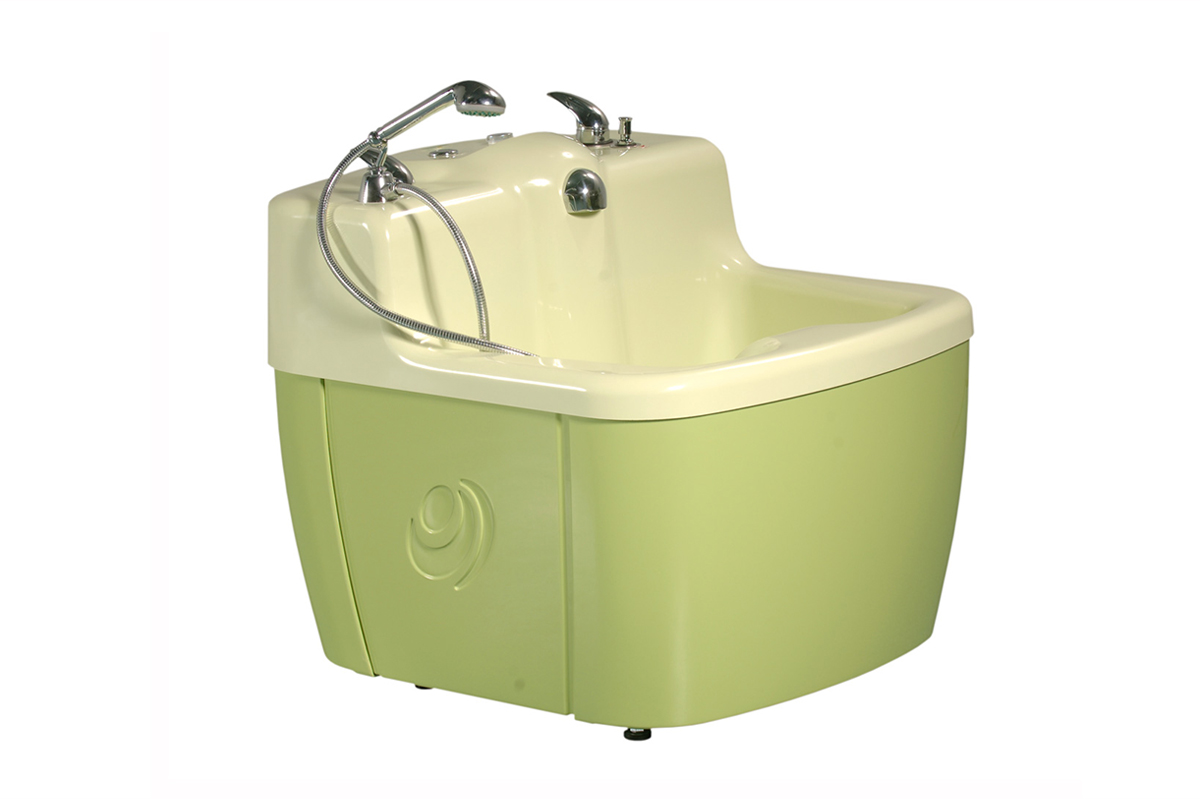

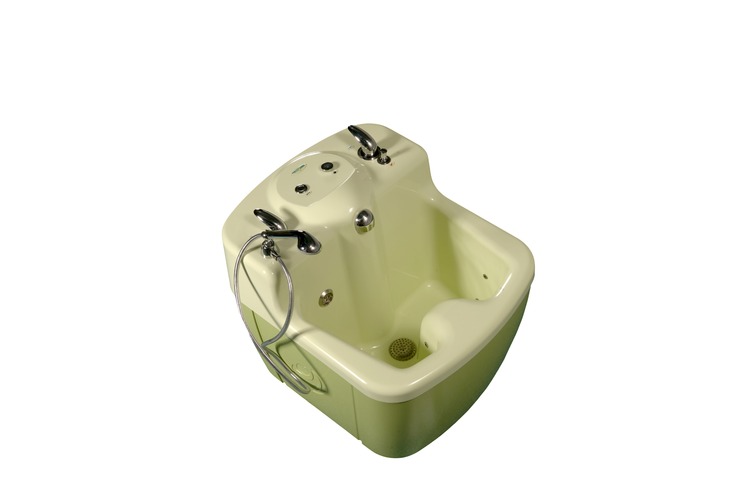

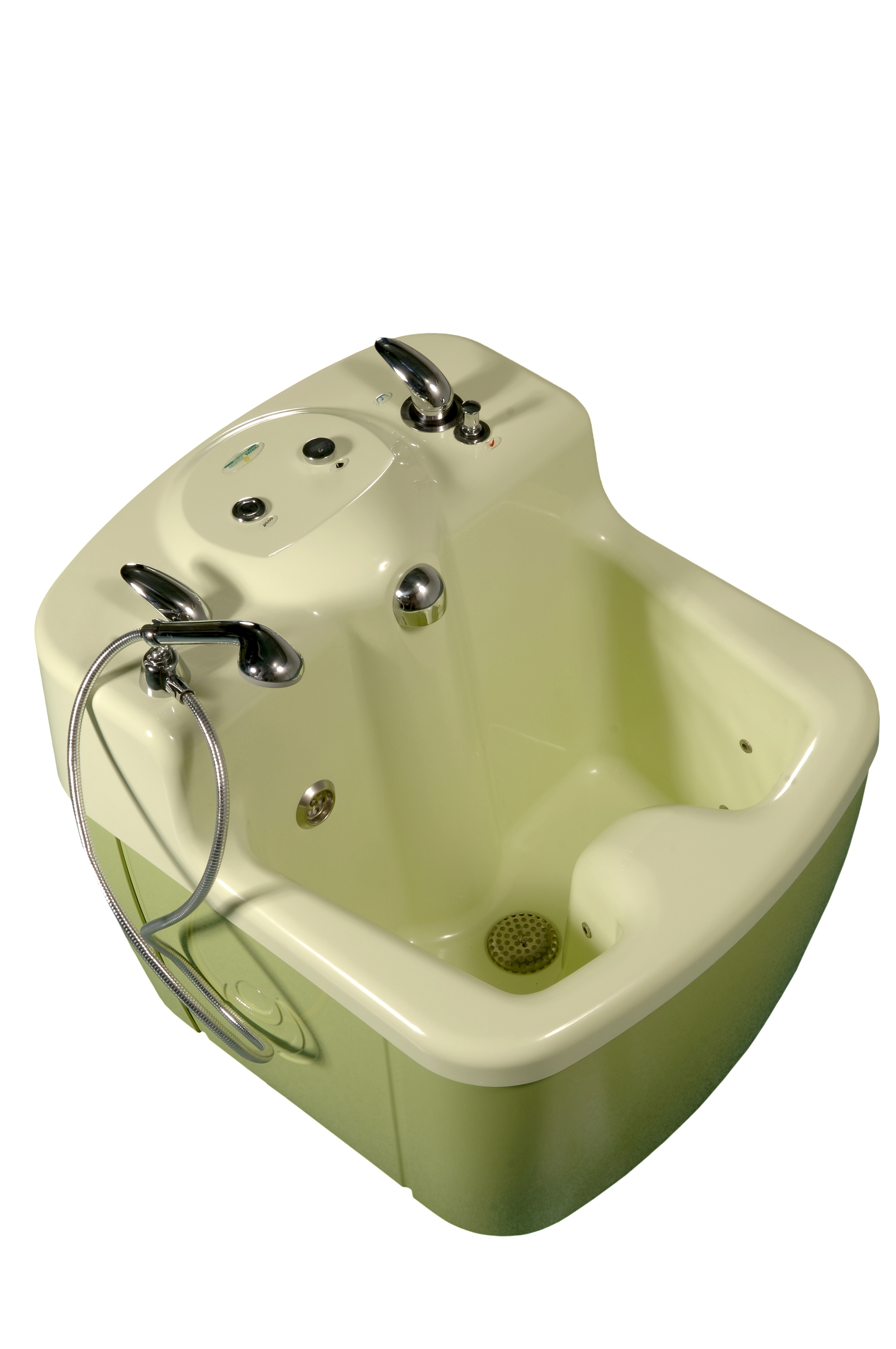

The LASTURA tub has been designed for hydrotherapy treatments of the lower limbs in post-traumatic conditions, inflammations, disorders of the central nervous system, states of exhaustion of the neuro-muscular system of the lower limbs, and for the regeneration after a heavy body workload.

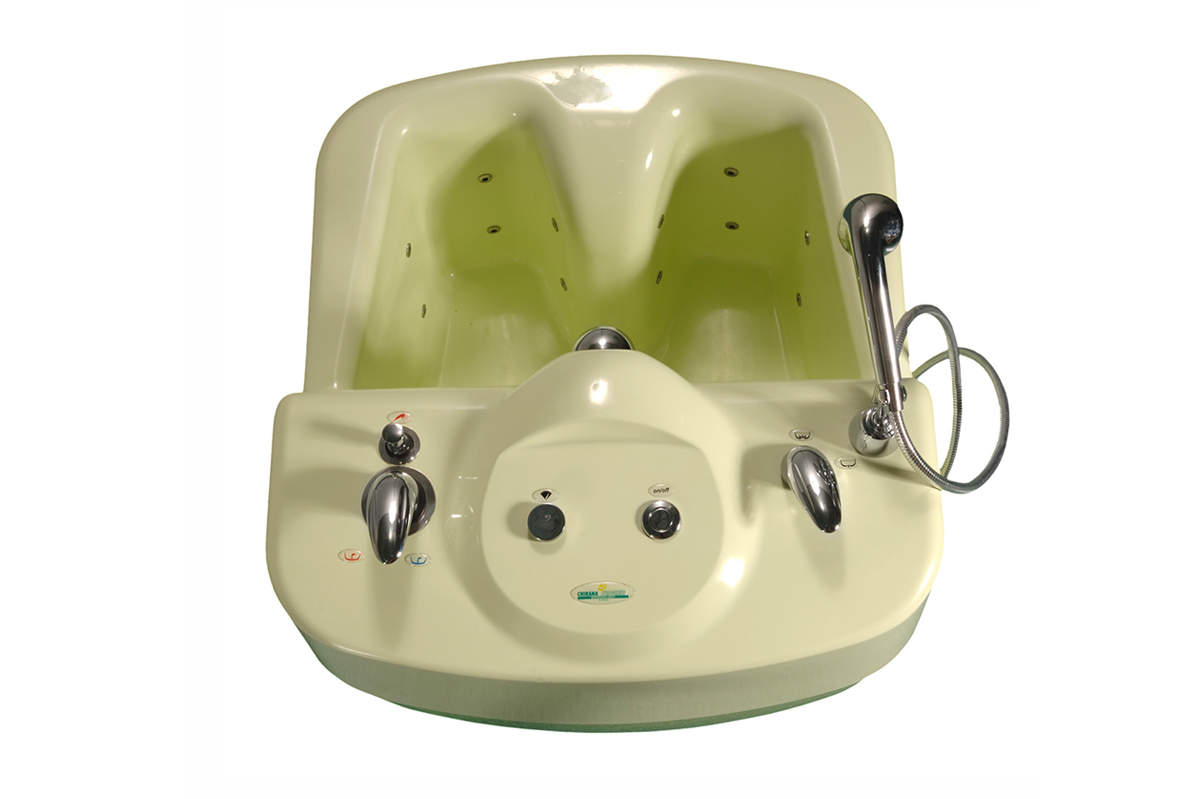

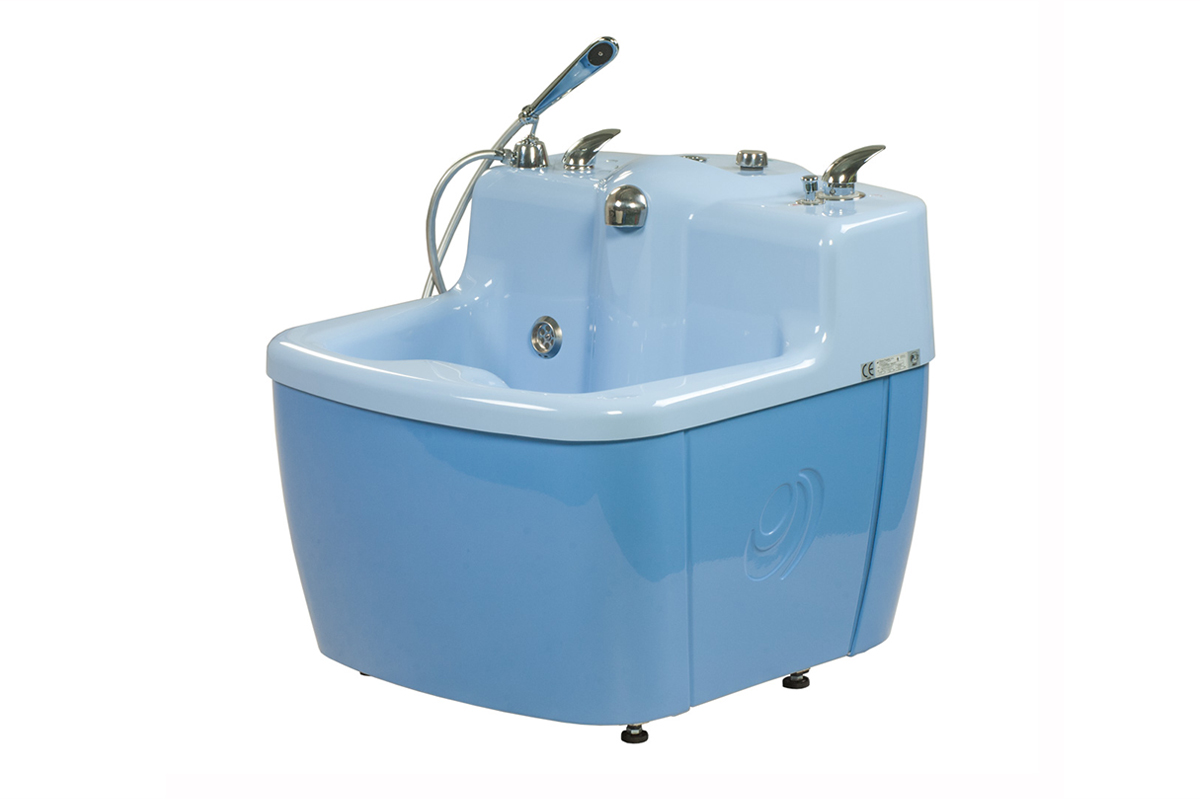

STANDARD EQUIPMENT

  • anatomical shape
  • 14 water massage jets
  • water jets performance can be adjusted by adding air using the control option
  • water drainage system from the tub circuit
  • hand shower for cleaning
Accessories

Accessories

Stool m1

CH0003
Chair backrest can be fully rotated to the right or left, and is adjustable in height.

Stool m2

CH0004
Chair With fixed middle backrest, adjustable in height.

Electro-Magnetic Anti-Scaling System

CH0006
Electro-Magnetic Limescale-Removing system
Technical Spec.

Technical Spec.

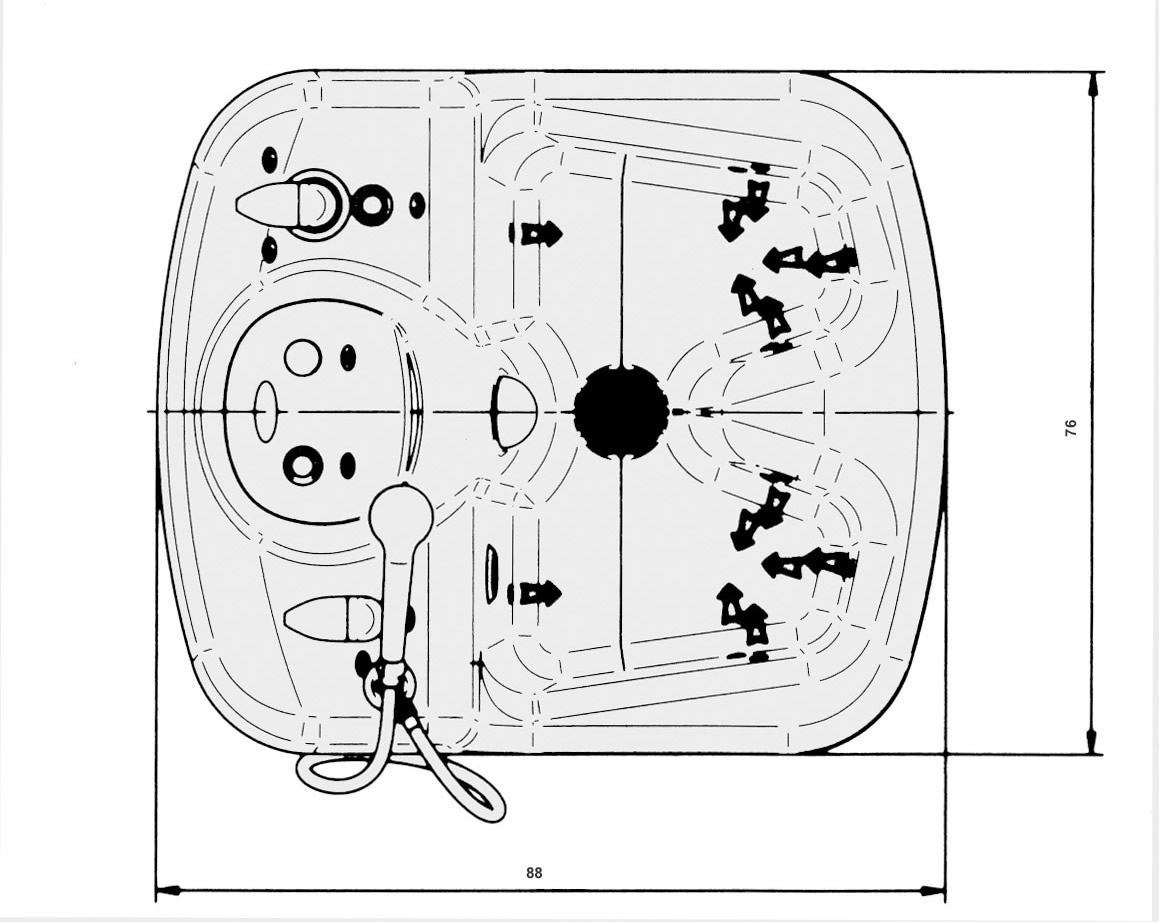

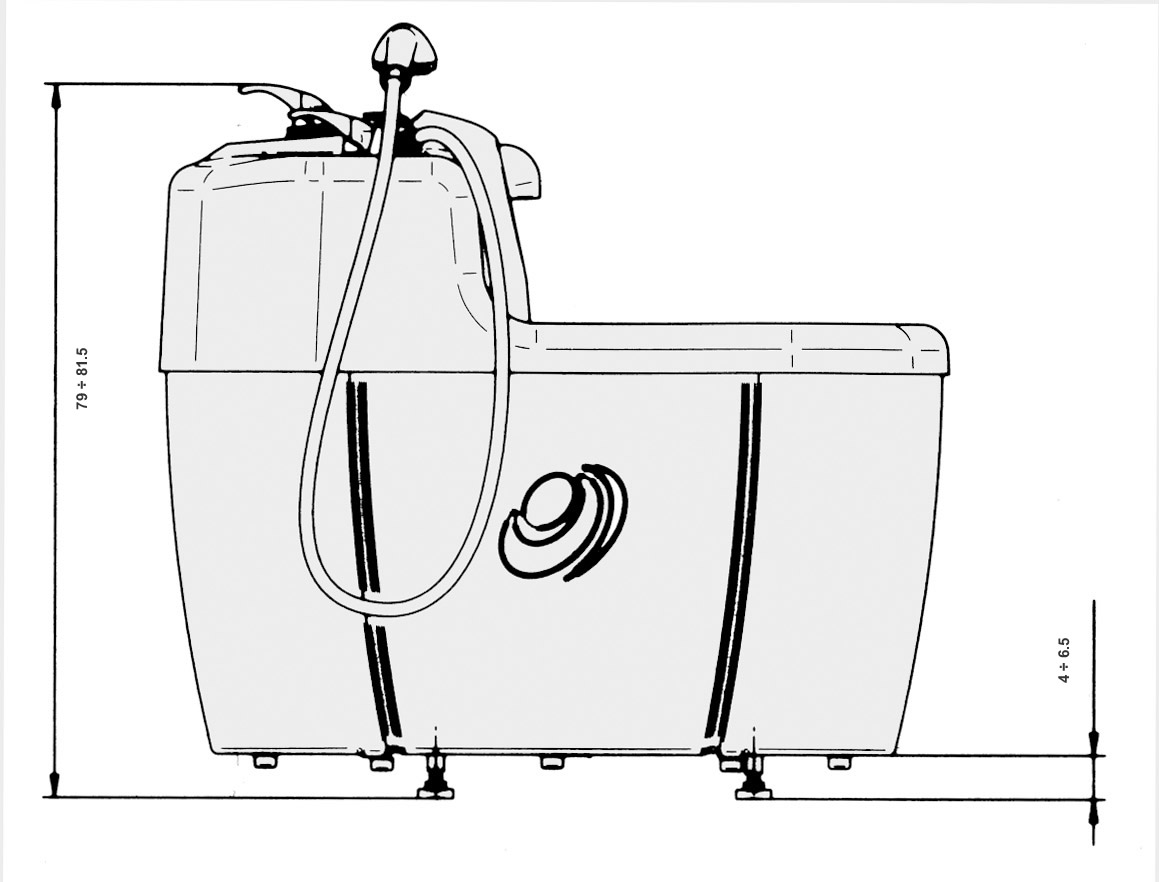

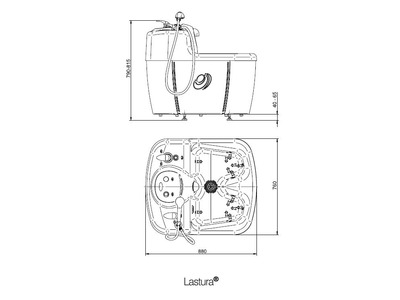

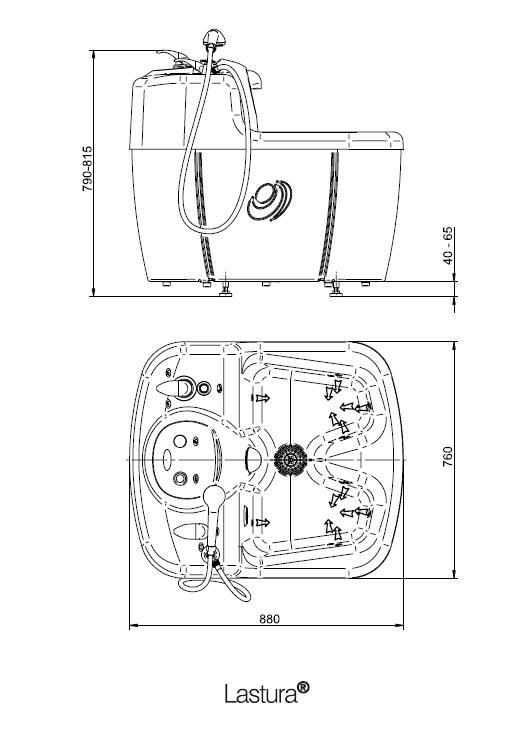

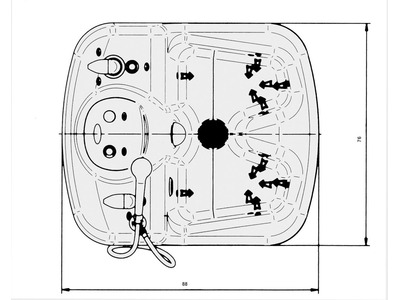

Dimensions:
88 x 76 x 79-81.5 h cm
Tub useful capacity:
45 l
Tub max. capacity:
54 l
Weight:
44 kg
Max. hot water temperature:
60°C
Max. pump water flow:
90 l/min
Filling time - usefull capacity:
1.5 min
Drainage time - usefull capacity:
0.8 min
Power supply:
230 V / 50(60) Hz
Power input:
800 VA
Hot and cold water connections:
2x3/4"
Electric protection:
class I
Protection degree:
IP 54
