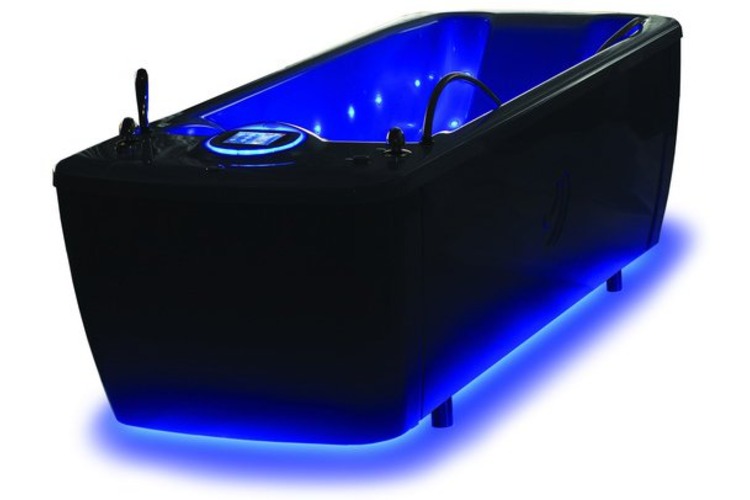

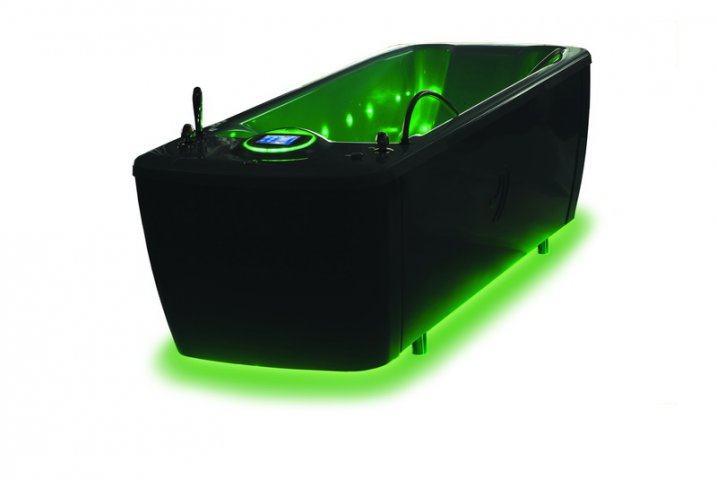

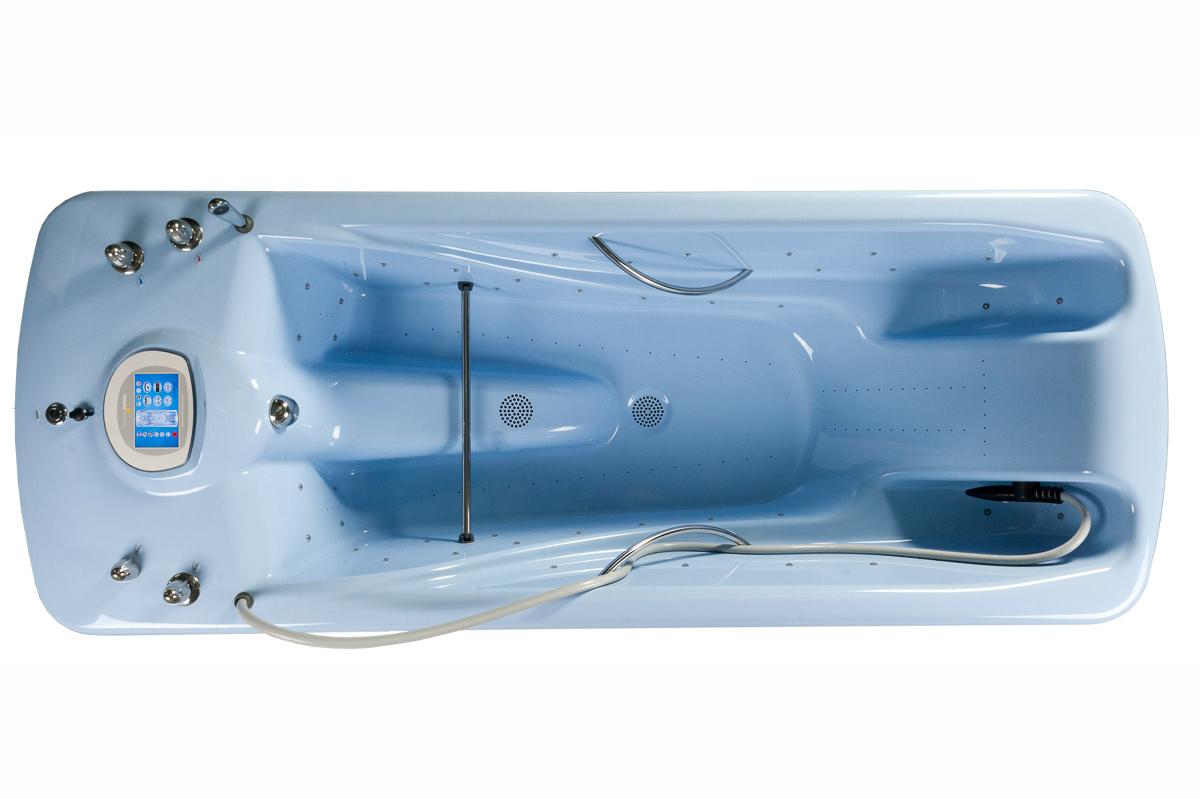

OCEAN DE LUXE PC BATH TUB

C
H
3
5
0
0
Quantity:

Description

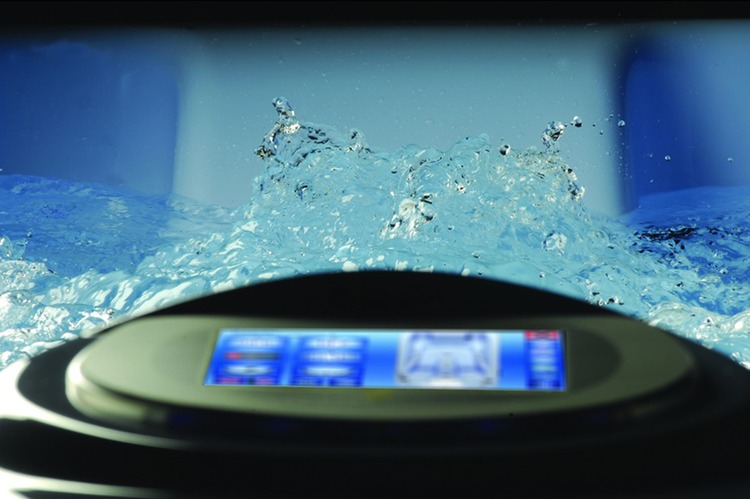

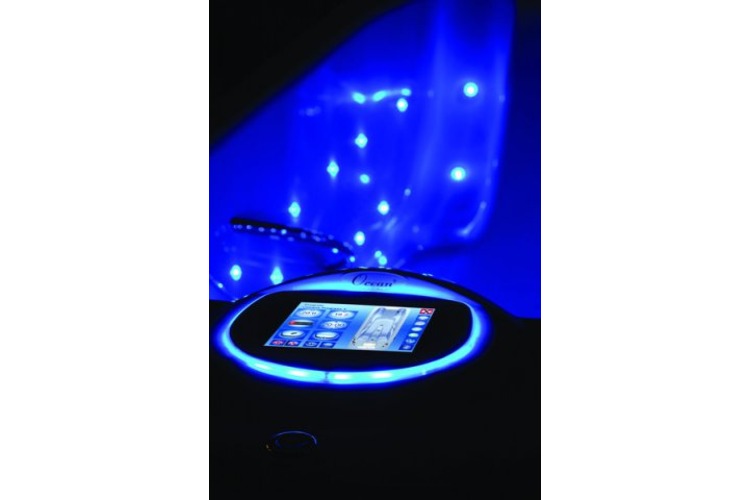

Hydrotherapy bath tub with intelligent funcions. Controlled by a computer via a touch screen for selection of the individual functions.



AUTOMATIC FUNCTIONS
Automatic water filling to a user set temperature and water level. Automatic start and process of the selected procedure, after the patient is seated inside. After the procedure ends and the patient steps out, the water is automatically drained and the water pump and all the massage zones are rinsed.



SPECIAL SURFACE TREATMENT
The surface of the bath tub features an unique antibacterial additive IONPURE, based on ions of silver. It penetrates the cell walls of bacteria and microbes, distrupting key cell functions so they can not function, grow or reproduce. This ensures great hygienic properties and prolonged lifetime of the bath tub‘s surface.



USE OF 3RD GENERATION COMPOSITE MATERIALS
Shell of the bath tub is made of a three layer composite material based on an unsaturated polyester resin reinforced with fiberglass. It is suitable for very demanding conditions and long term use. The material is thermal form permanent and hydrolysis resistant (resistant against acid and alkaline solution). It is very durable and impact and stress resistant. However it can be easily repaired and is available in an unlimited variability of color shades.



STANDARD EQUIPMENT

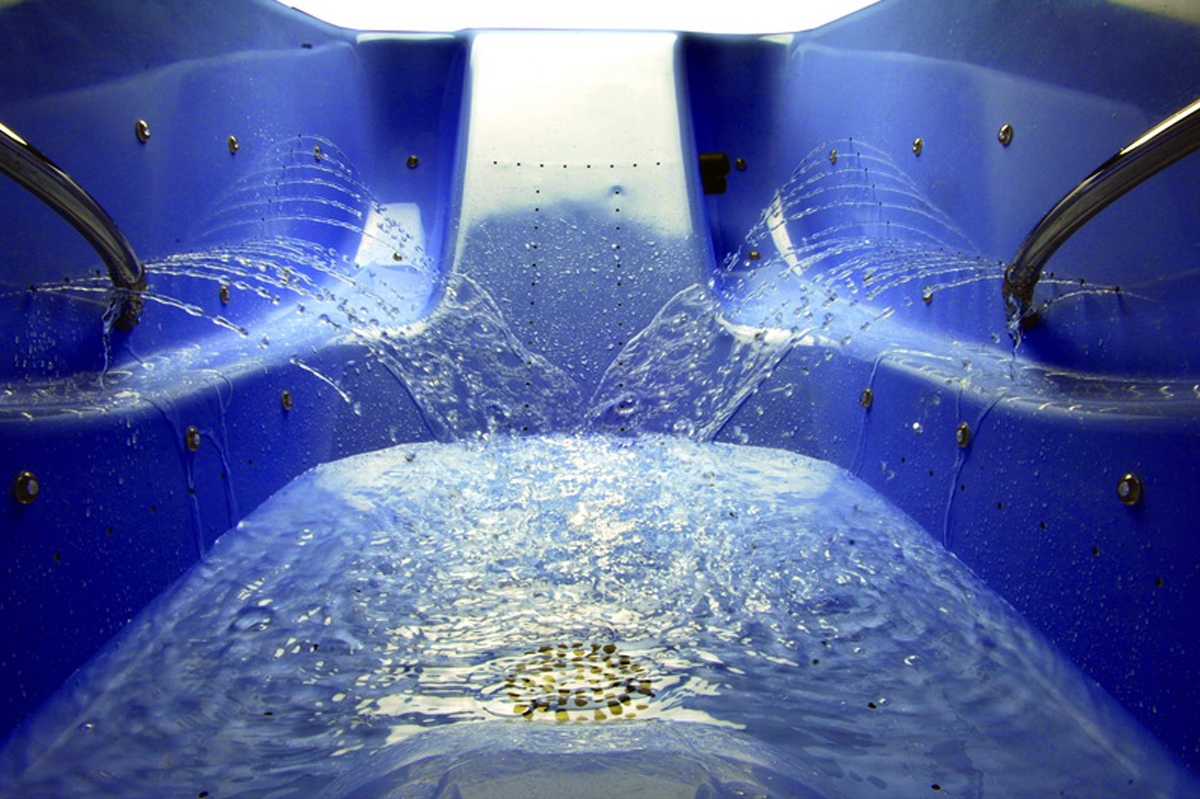

  • 5 zones, 174 jets
  • 28 built-in programs
  • air massage with air mixture: 30 jets
  • electromagnetic incrust stopper
  • two stage steps without handle
  • foot rest
  • automatic water pump and massage zones rinsing
  • antimicrobial surface treatment with the IONPURE additive



Accessories

Accessories

Step With Grab Rail

CH0002
Step with grab rail.

Bubble Grid

CH0005
The unit produces a gentle stimulating massage that is applied to the whole body through compressed air.

Electro-Magnetic Anti-Scaling System

CH0006
Electro-Magnetic Limescale-Removing system

Grid Connector

CH0014
This unit enables the connection of the unit code CH0005 to the external compressor.

Jet Nozzle For Underwater Massage

CH0016
Jet nozzle for Ocean De Luxe. Continuous adjustment of pressure and air mix.

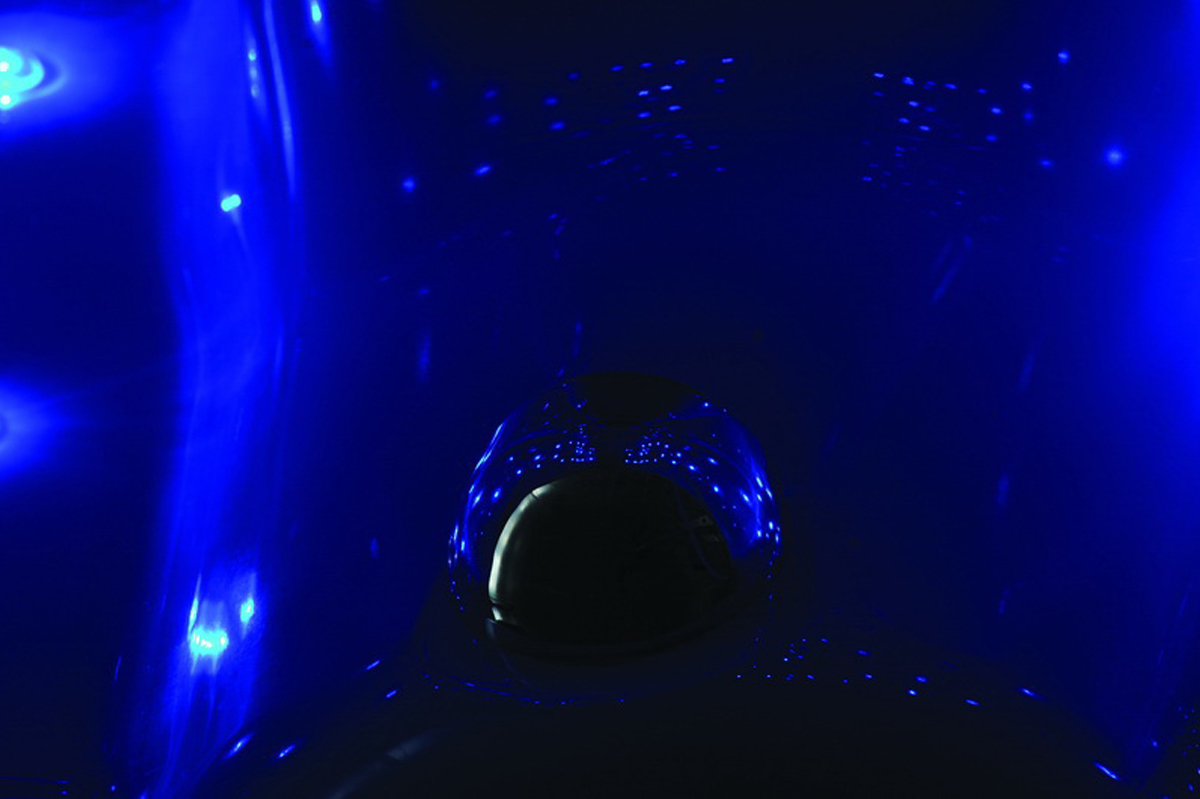

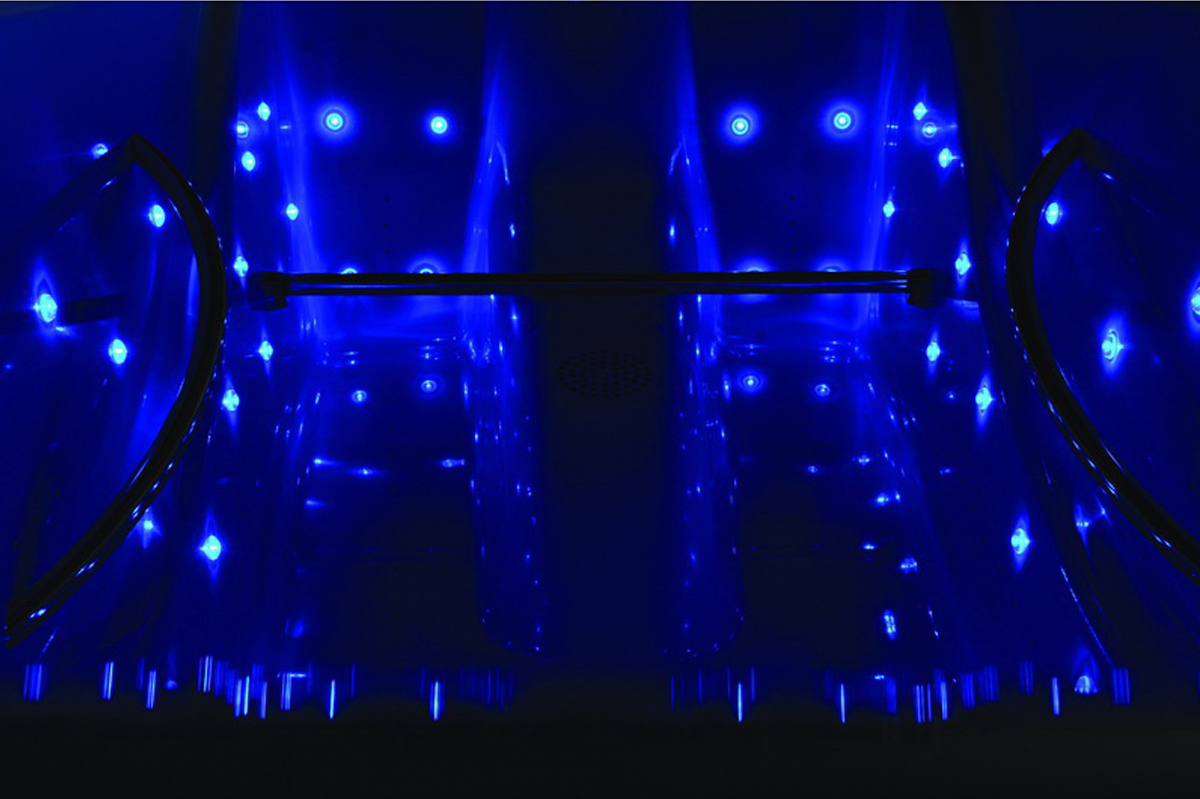

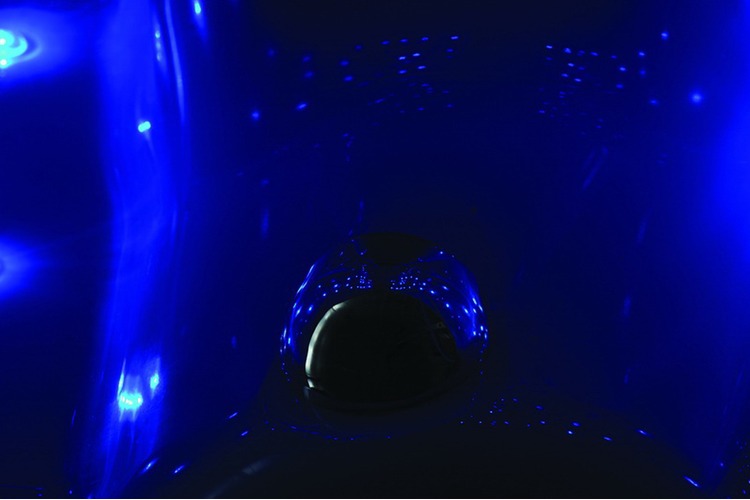

Ocean 48 Chromotherapy

CH0017

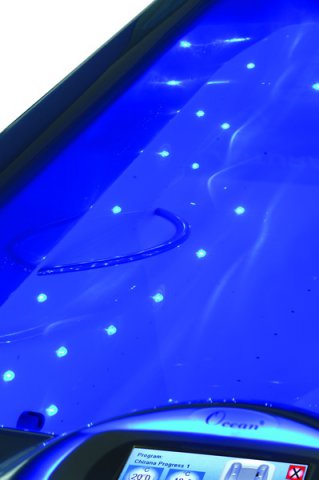

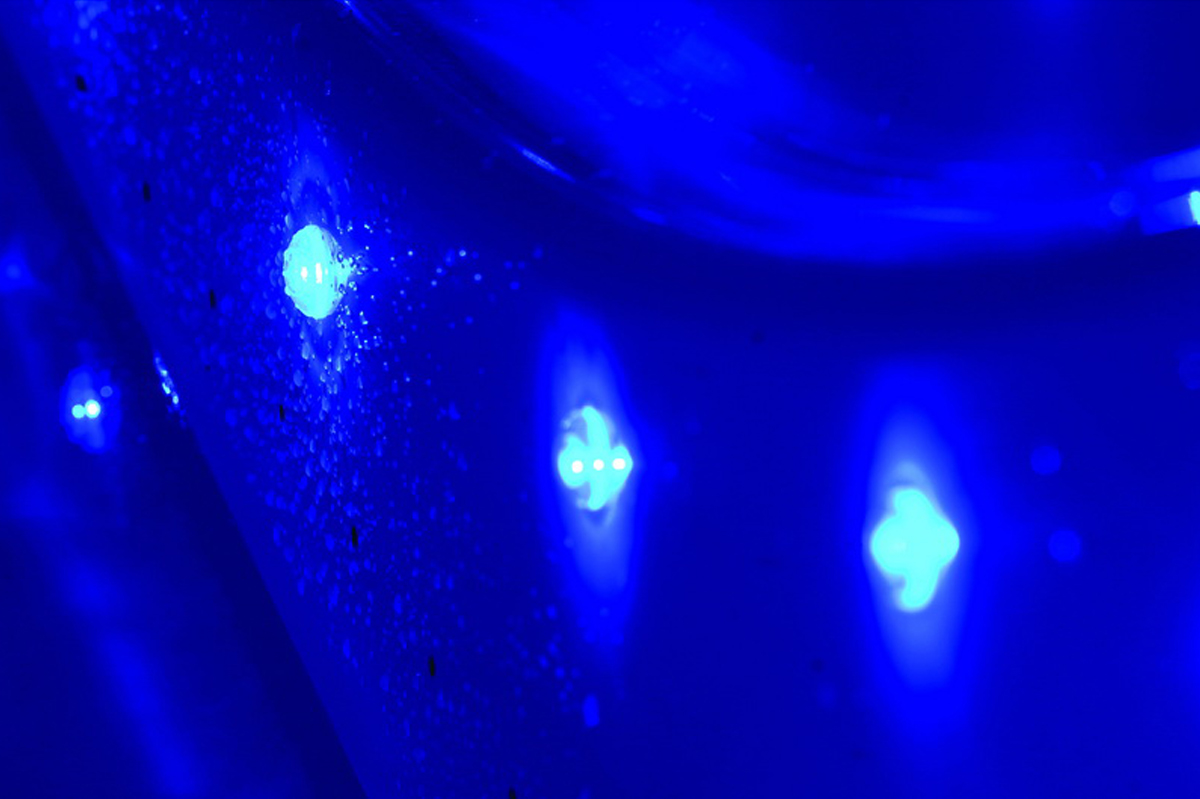

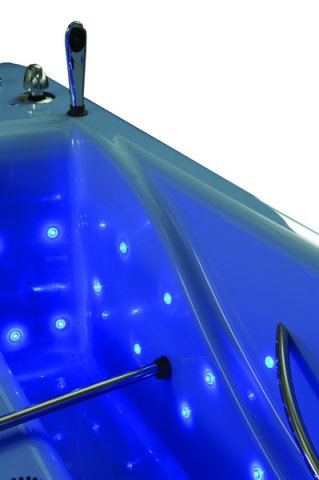

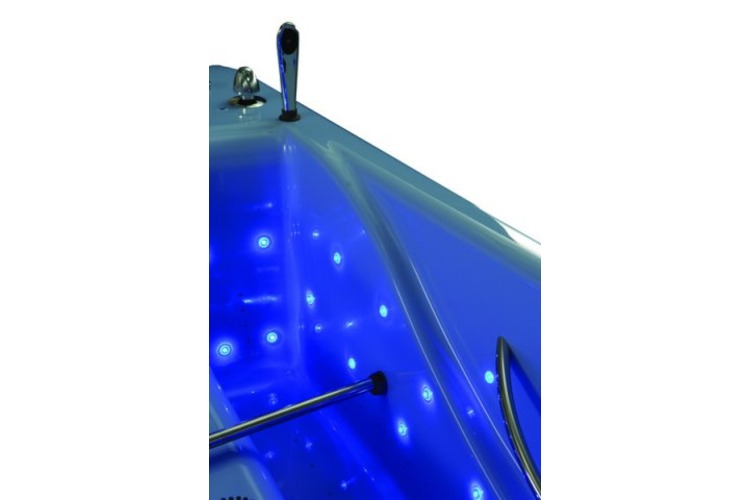

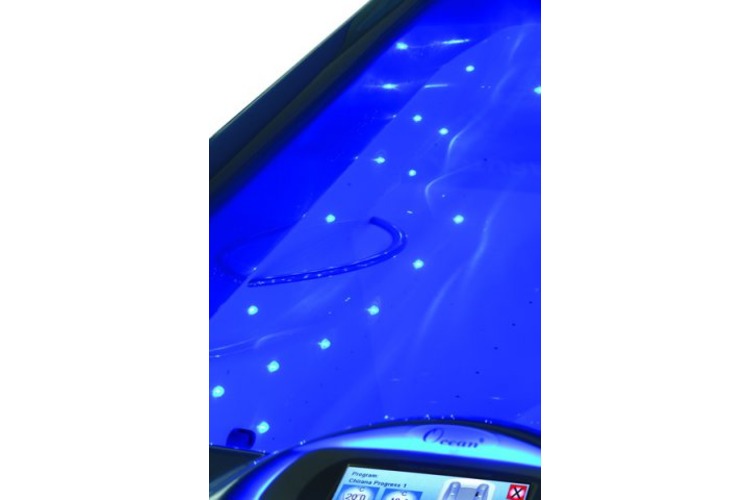

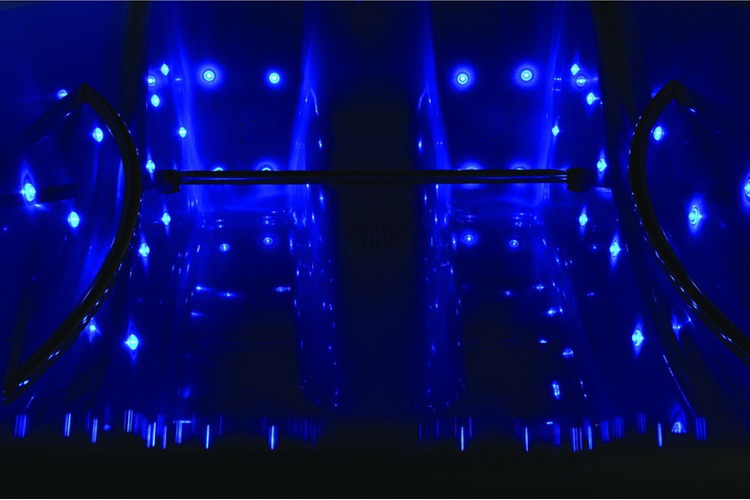

"Ocean" chromoteraphy - 48 lights, 7 colours. Option to freeze the selected colors.

Ocean Water Recirculation System

CH0018
Water recirculation system for Ocean De Lux PC.

Ocean Magnetotherapy

CH0021
Device that allows for performing hydrotherapy and magnetotherapy treatments simultaneously, which strengthens the effectiveness of both therapies.
Technical Spec.

Technical Spec.

Dimensions:
250 x 96 x 92-94.5 h cm
Tub useful capacity:
260 l
Tub max. capacity:
440 l
Weight:
180 kg
Max. hot water temperature:
60°C
Pump pressure:
0-0.48 MPa
Max. pump water flow:
433 l/min
Filling time - usefull capacity:
3.2 min
Drainage time - usefull capacity:
2.7 min
Power supply:
3 x 400 V / 50(60) Hz
Power input:
2500 VA
Hot and cold water connections:
2x1"
Compressed air supply:
1 x 3/4"
Electric protection class:
I
Protection degree:
IP 54

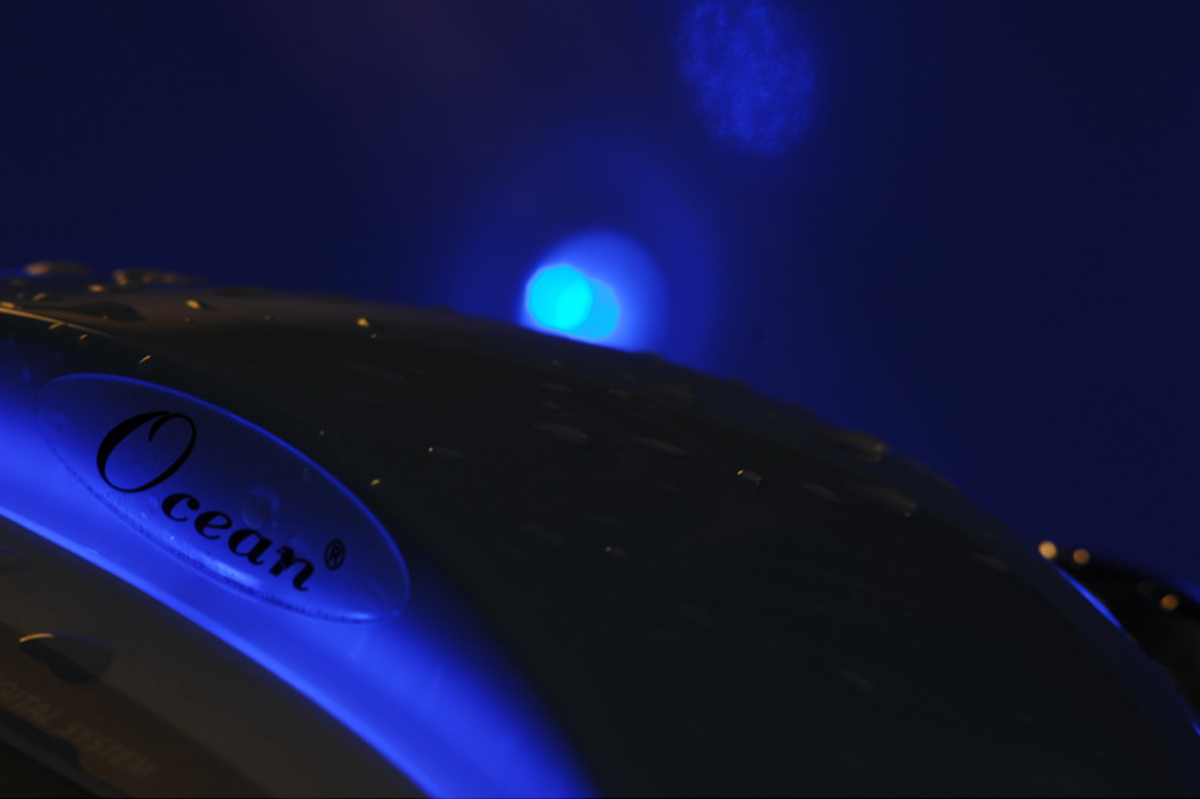

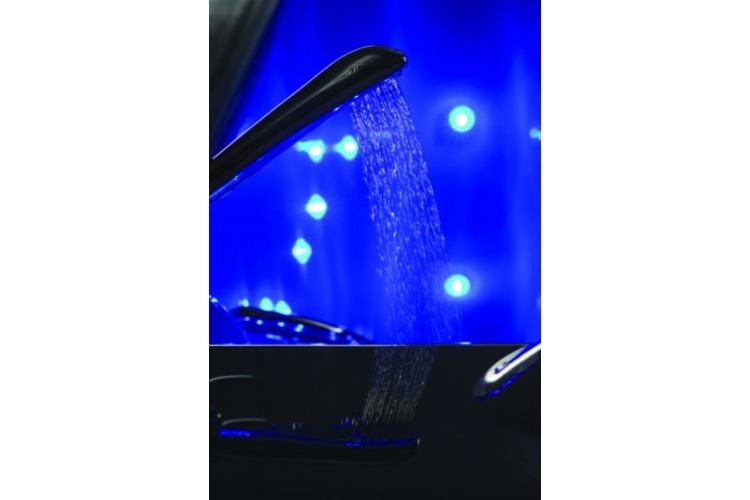

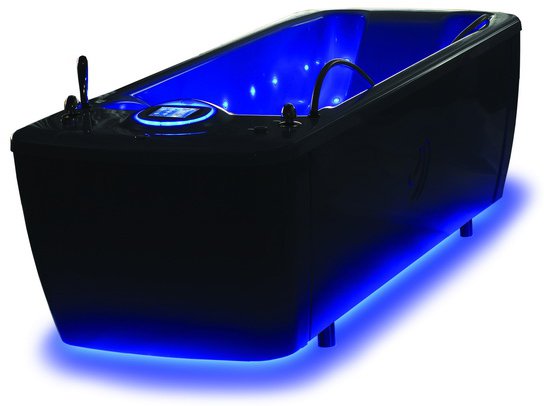

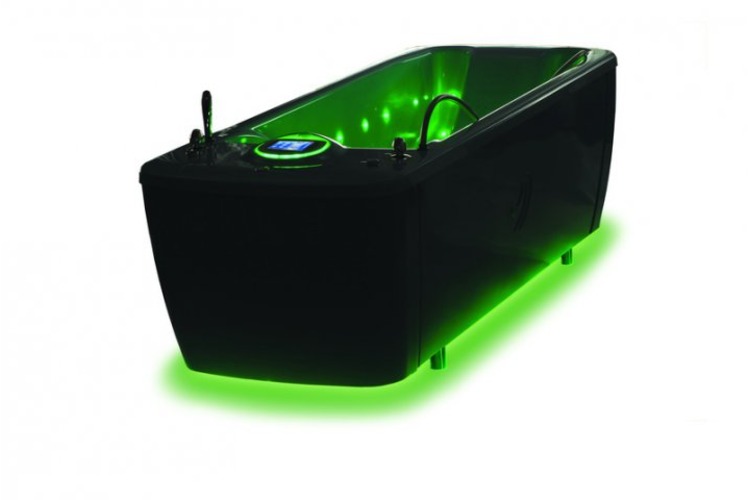

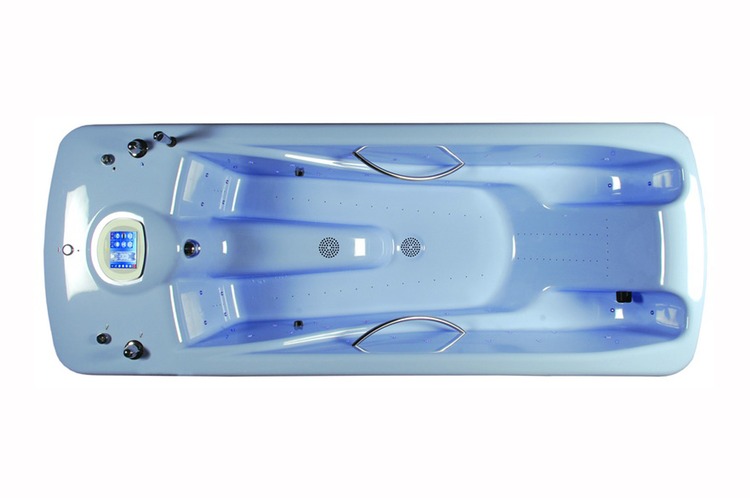

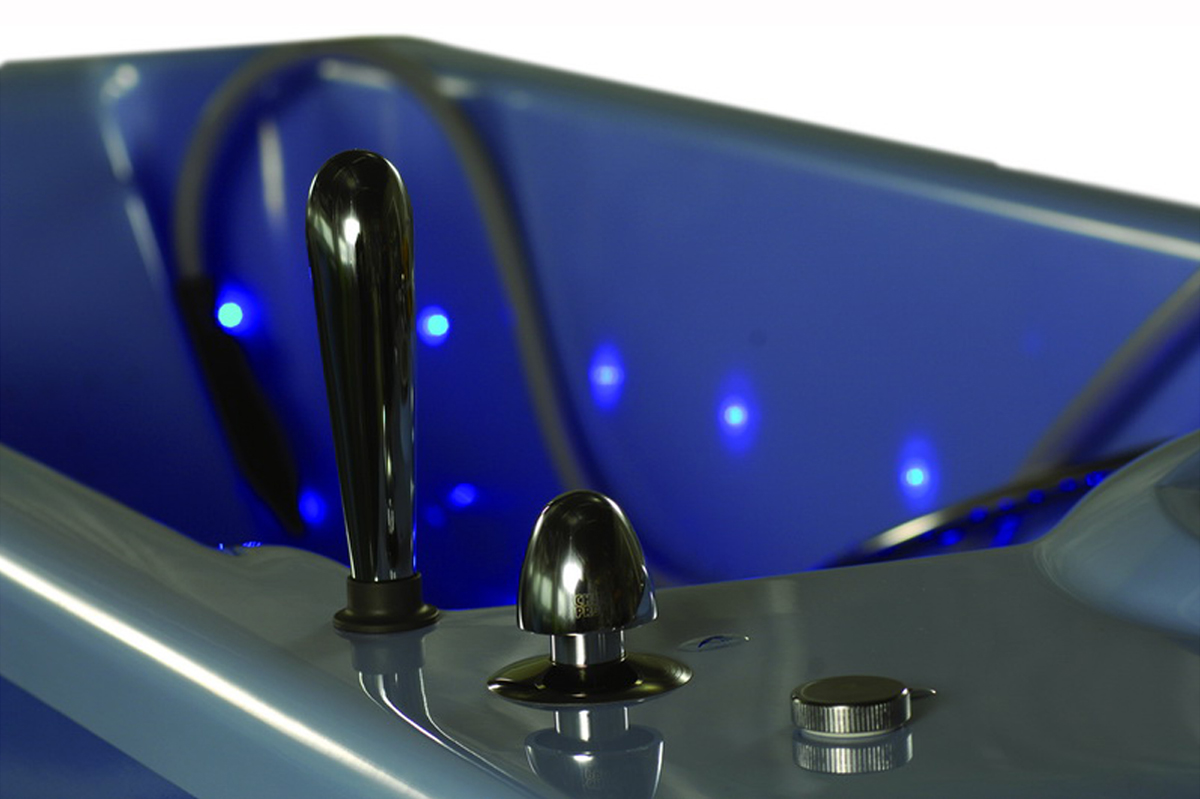

Gallery

Gallery

Documents

Documents


CH3500 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 5.38 MB
Register to access the content

CH3500 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 216.99 KB
Register to access the content
