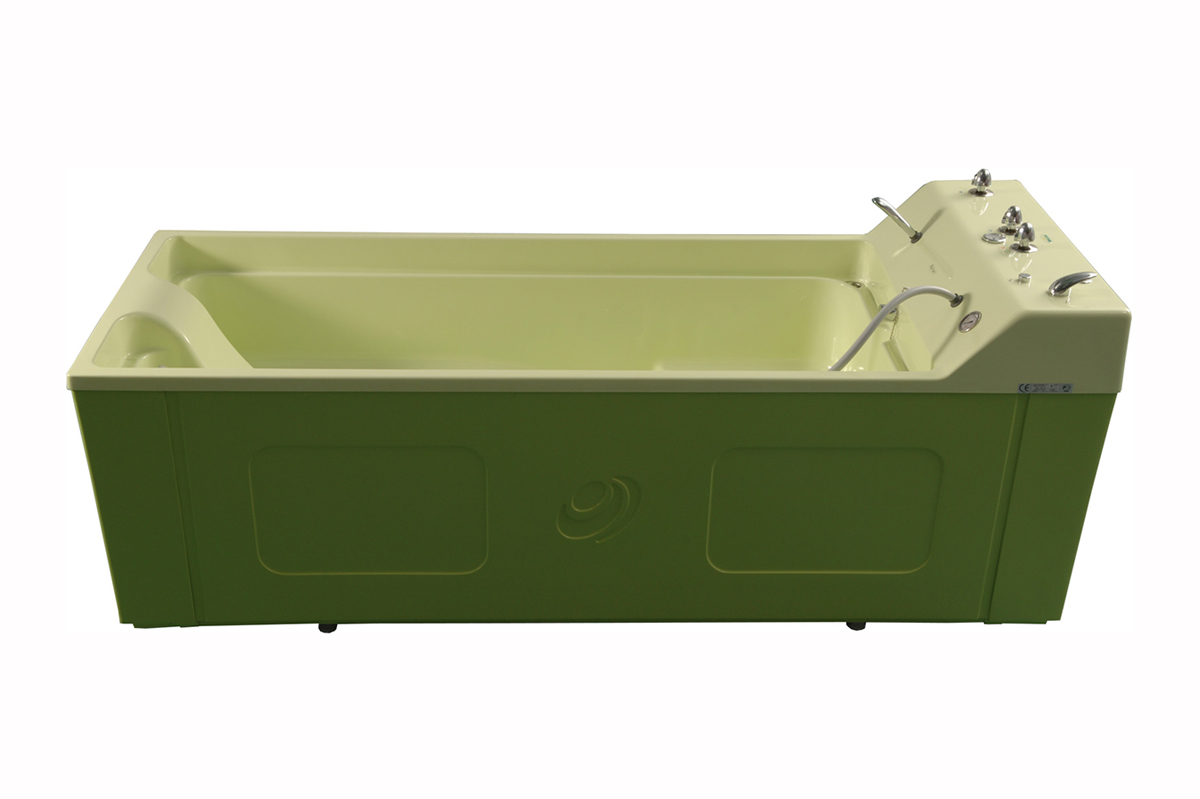

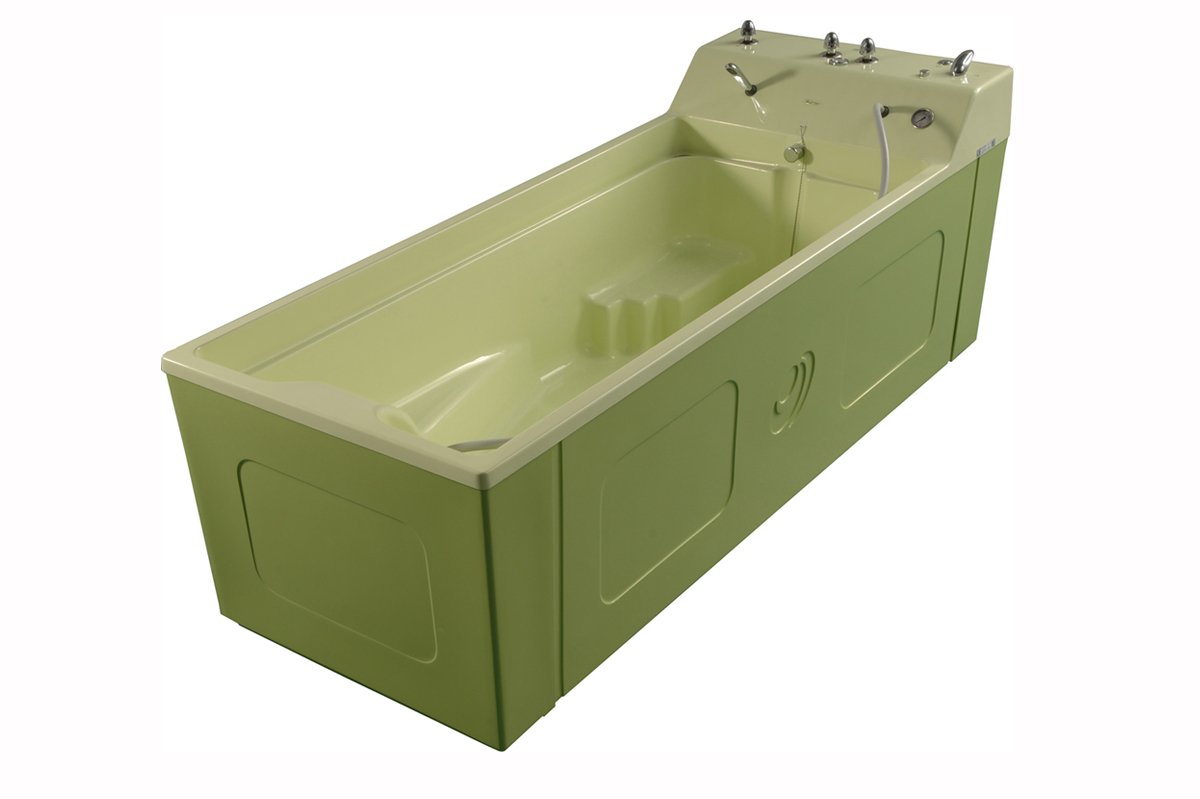

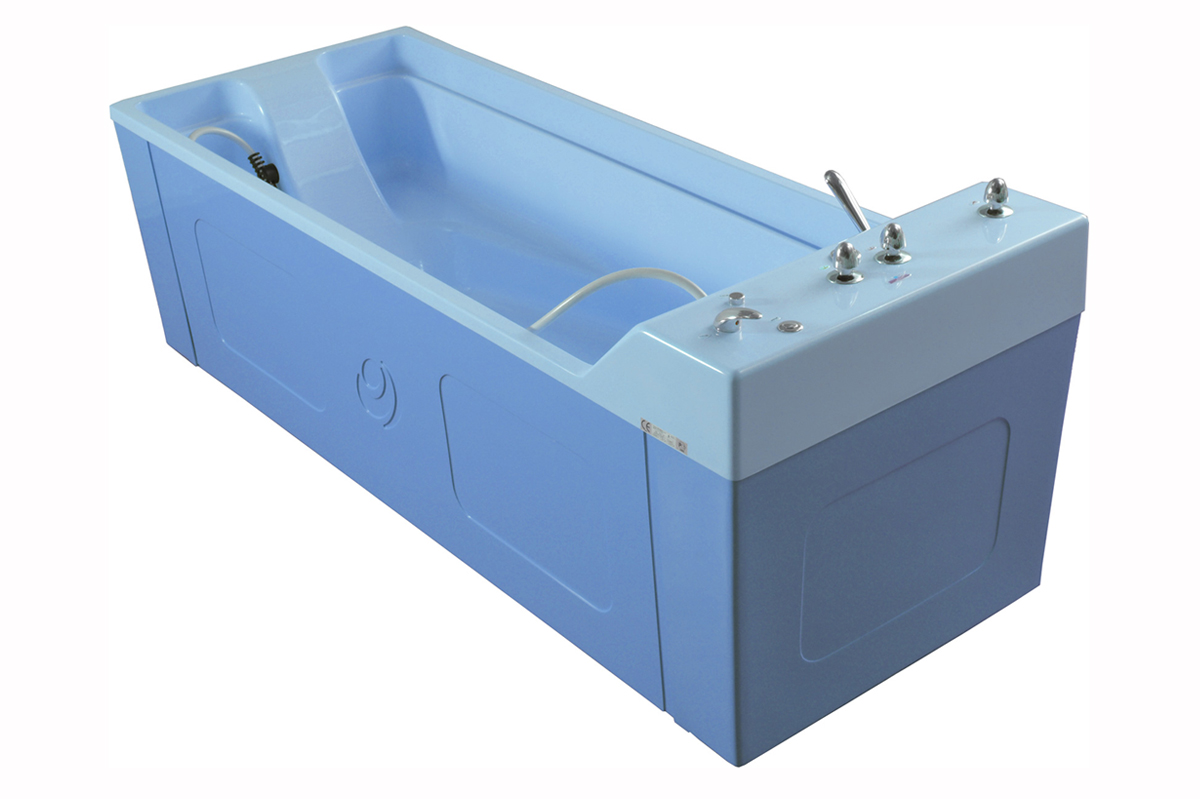

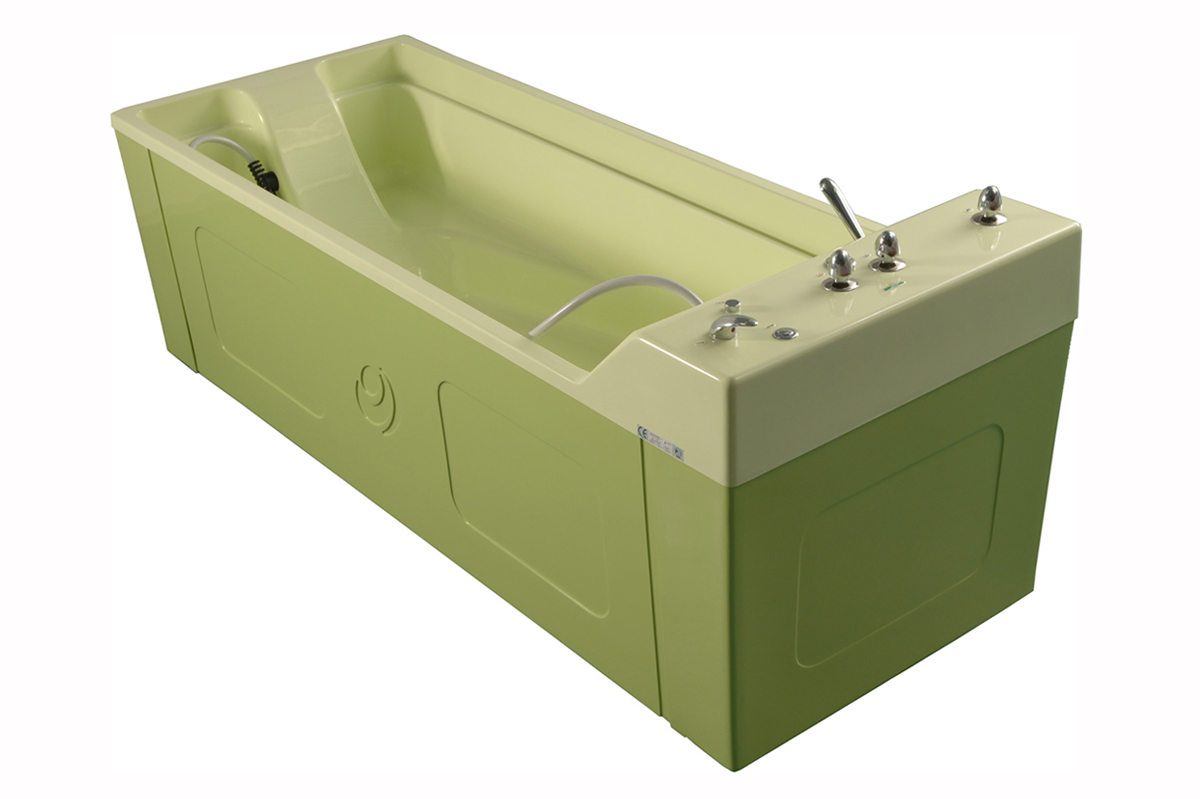

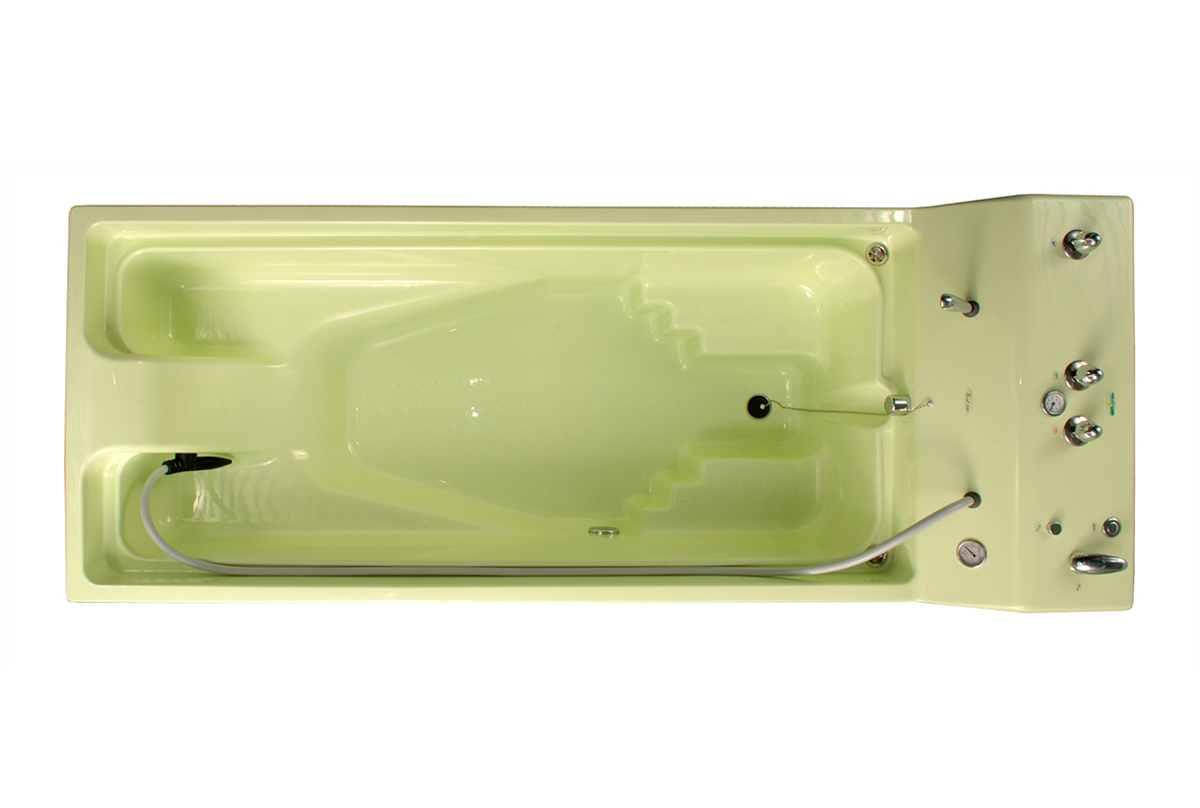

VOD 56 RECTANGULAR TUB

C
H
2
0
0
0
Quantity:

Description

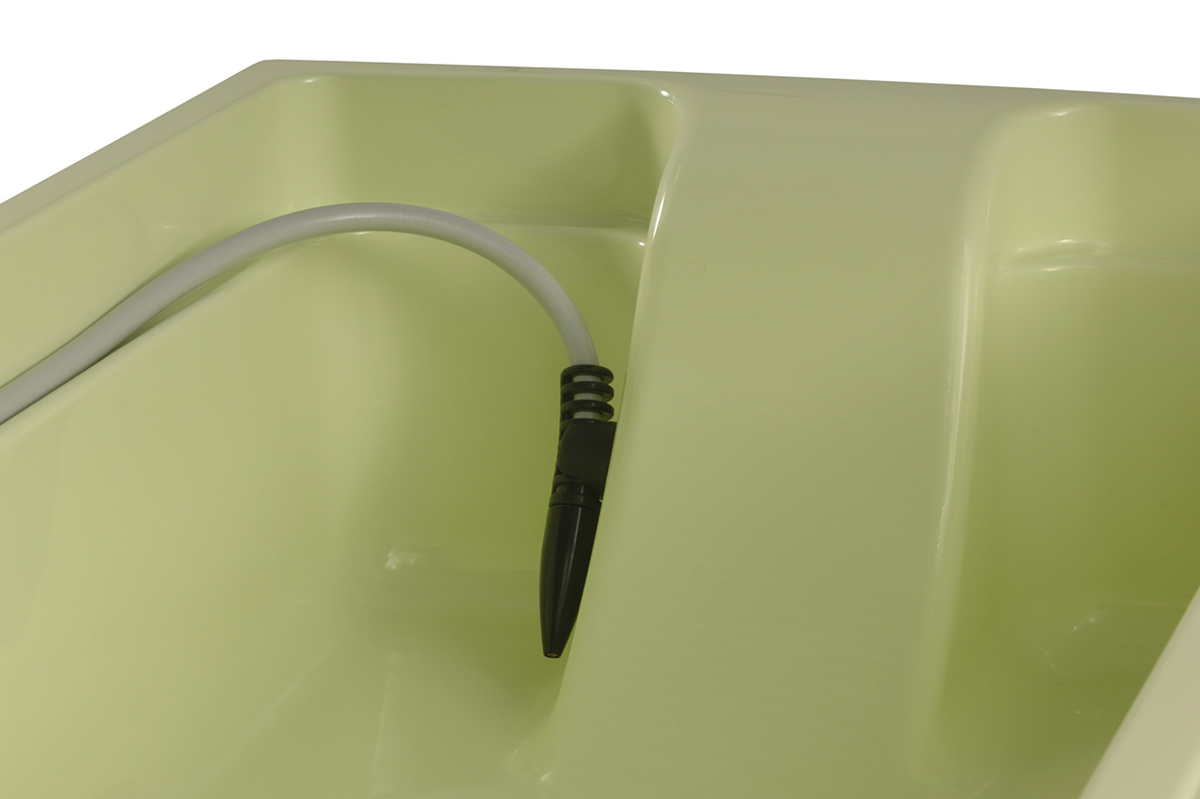

The VOD 56 tub with underwater and Whirlpool massage is suited for massaging the whole body as well as targeting specific areas with a high-pressure massage through a flexible single-jet nozzle.

This type of massage has mechanical and thermal effects. A suitable temperature of the bath and hydro jet produces muscle relaxation.
The water jet pressure helps warm up the muscles, which stimulates the neural and metabolic systems.

This type of massage is used in the treatment of post-traumatic situations, injured muscles and ligaments, poor peripheral blood circulation, ischialgia, spastic and atonic poliomyelitis, and obesity.

VOD 56 is a classic tub with underwater massage. The exceptional volume of water is suitable for patients with a greater body mass. The tub size ensures plenty of space for underwater massage. The 450kPA pressure massage ensures a very effective treatment. The tub is supplied with a two-step stool.

Accessories

Accessories

Step With Grab Rail

CH0002
Step with grab rail.

Bubble Grid

CH0005
The unit produces a gentle stimulating massage that is applied to the whole body through compressed air.

Electro-Magnetic Anti-Scaling System

CH0006
Electro-Magnetic Limescale-Removing system

Grid Connector

CH0014
This unit enables the connection of the unit code CH0005 to the external compressor.
Technical Spec.

Technical Spec.

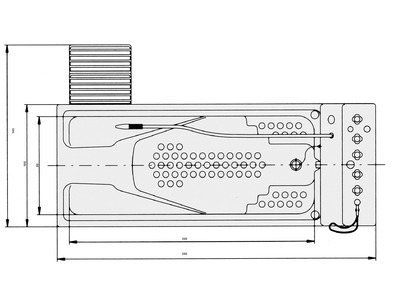

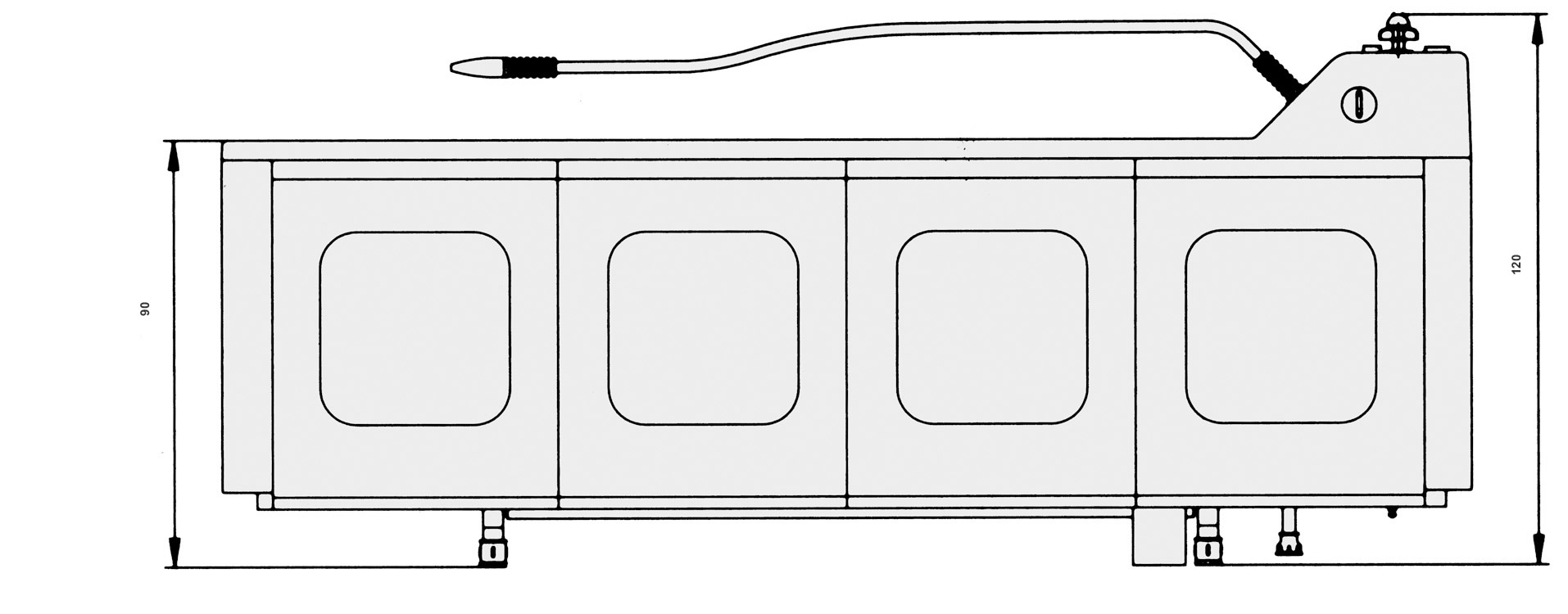

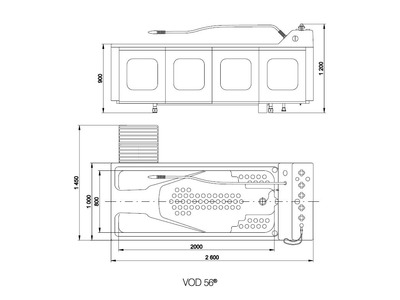

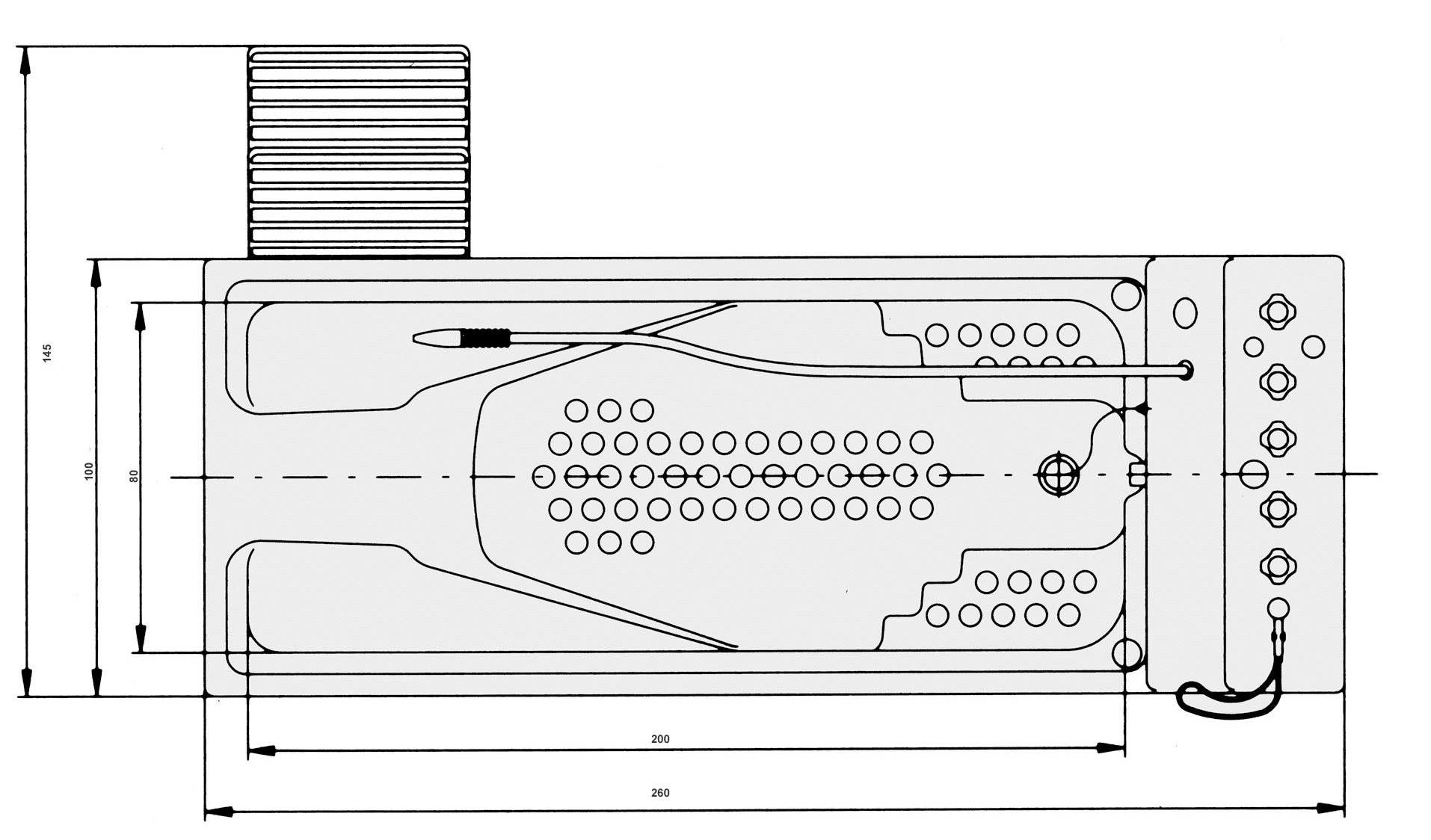

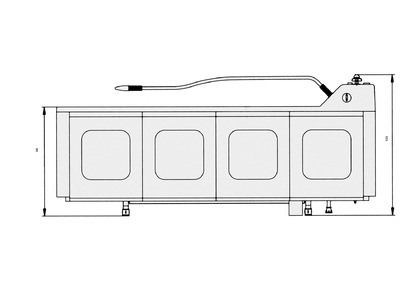

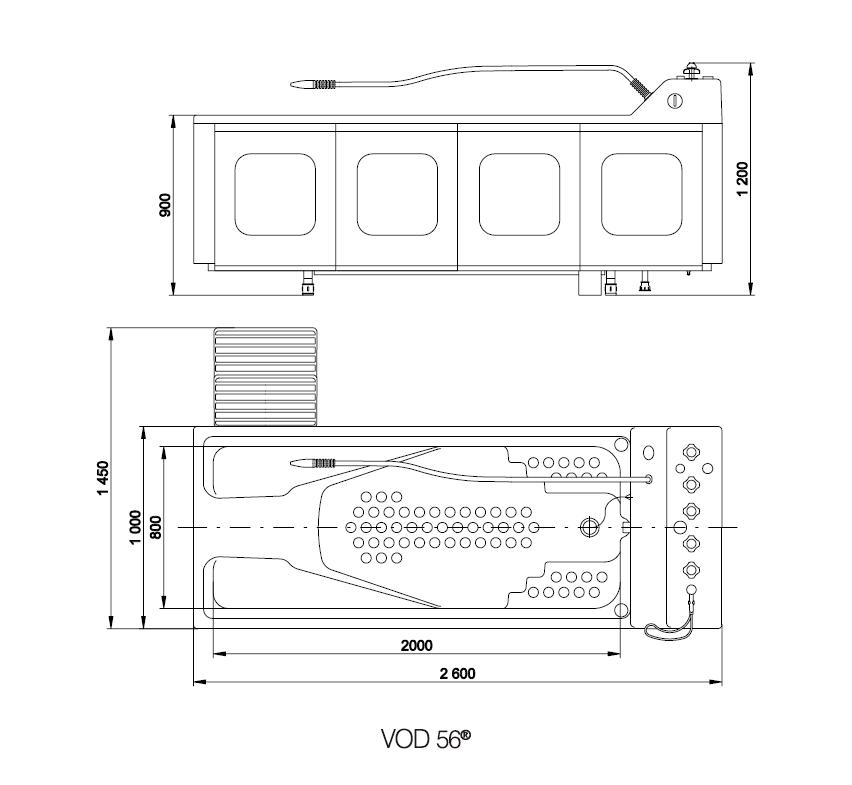

Dimensions:
260 x 100 x 120 h cm
Tub useful capacity:
370 l
Tub max. capacity:
550 l
Weight:
158 kg
Max hot water temperature:
60°C
Massage hose water pressure:
0 - 0.57 MPa
Max. pump water flow:
133 l/min
Max. fill time - tub useful capacity:
4.3 min
Drain time - tub useful capacity:
3 min
Power supply:
3 x 400 V - 50 Hz
Power input:
1150 VA
Hot and cold water inflow:
2 x 1"
Electric protection class:
I
Protection degree:
IP 54
Gallery

Gallery

Documents

Documents


VOD 56

Brochure
Language: English
DOWNLOAD
PDF 366.38 KB

CH2000 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 2.76 MB
Register to access the content

CH2000 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 3.47 MB
Register to access the content

CH2000 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 216.99 KB
Register to access the content
