You are here: Home > Hydrotherapy Tubs > Underwater Massage Bath Tubs > Hubbard Bathtub
Request information

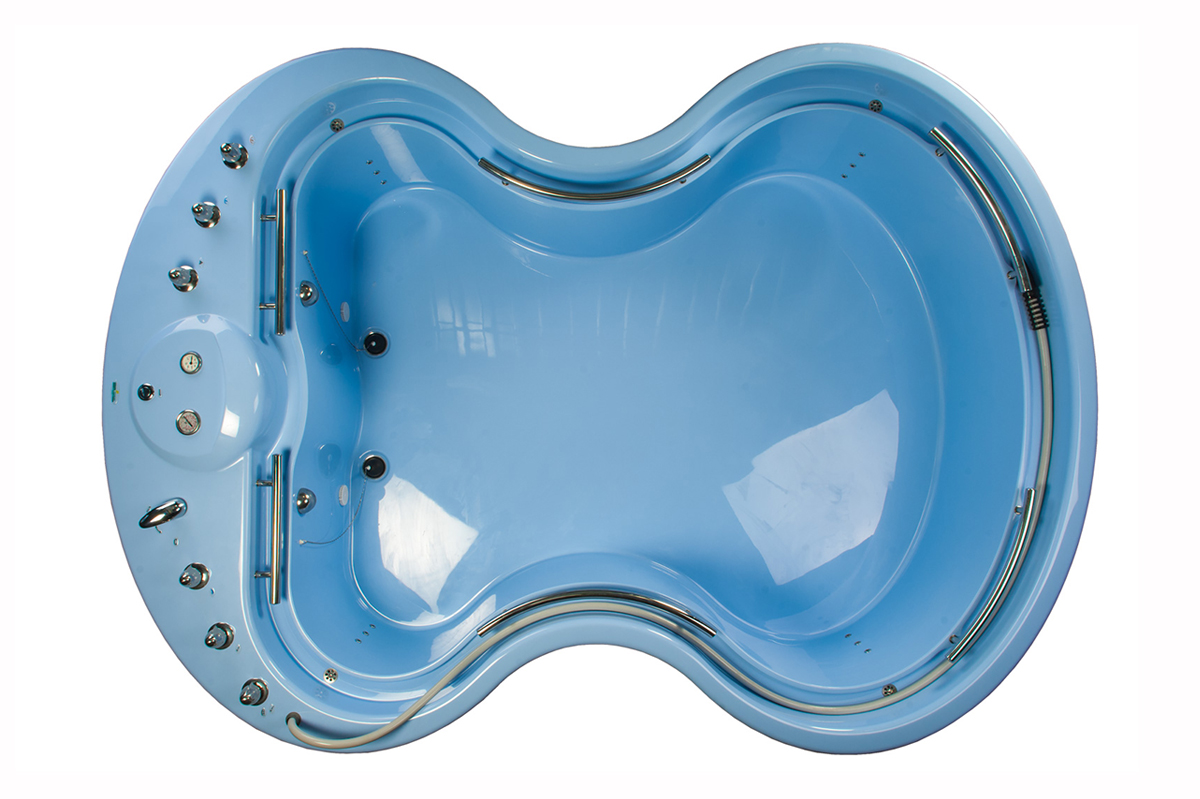

HUBBARD BATHTUB

C
H
1
1
0
0
Discontinued

Description

The Hubbard Bath is used for therapeutic, underwater, whirling massage of the whole human body or its parts. The underwater massage can be applied either as a pressure one using the hose massage nozzle or as a whirlpool massage with whirling water stream by switching it into the hydrotherapy water jets nozzles.

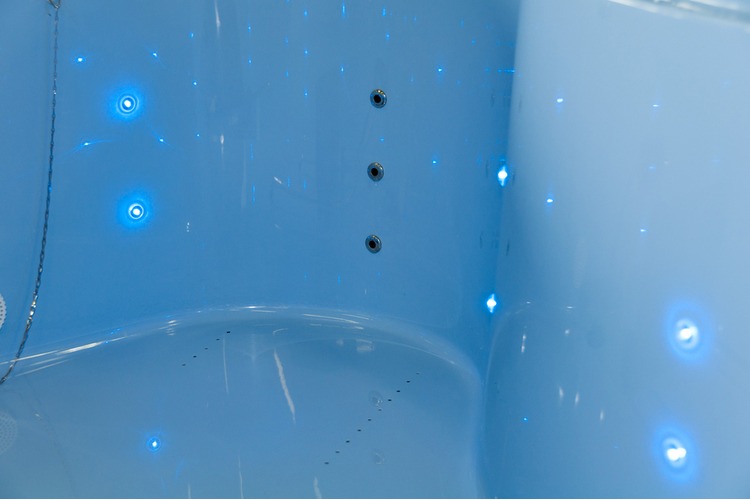

Comes with 12 water massage jets with performance control massage hose and air control addition into massage jets.

Technical Spec.

Technical Spec.

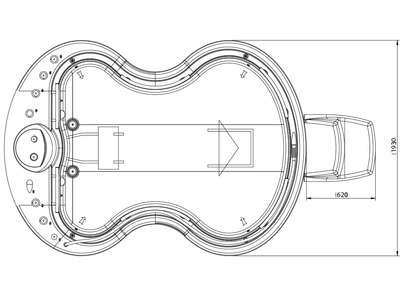

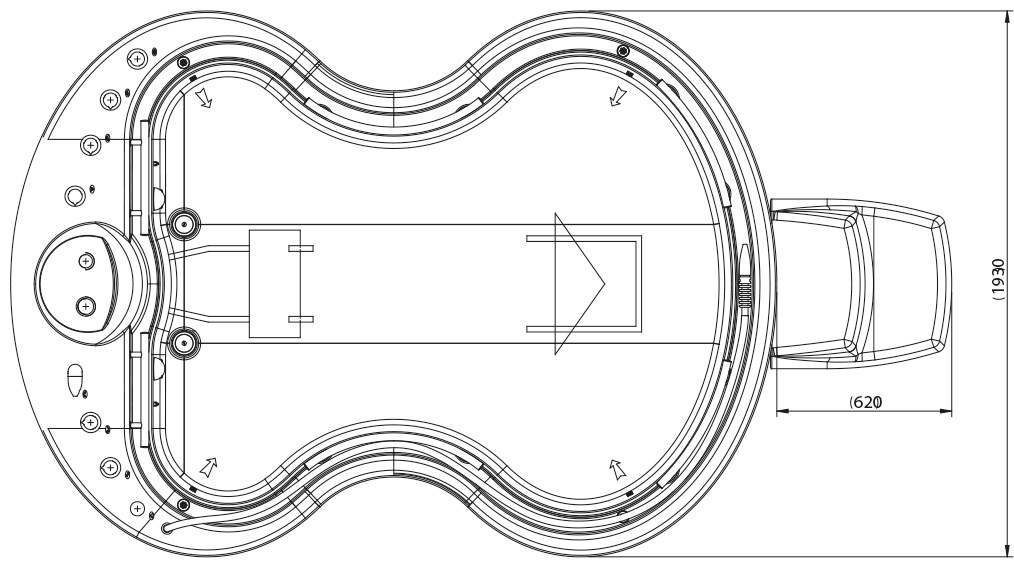

Dimensions:
270 x 193 x 98 h cm
Useful tub capacity:
700 l
Max. tub capacity:
1235 l
Weight:
220 kg
Max. hot water temperature:
60°C
Massage hose water pressure:
0-0.4 MPa
Max. pump water flow:
233 l/min
Max. fill time - tub useful capacity:
9 minutes
Drain time - tub useful capacity:
4 minutes
Power supply:
3 x 400 V - 50 Hz
Power input:
1500 VA
Hot and cold water inflow:
2 x 1"
Electric protection class:
class l
Protection degree:
IP 54

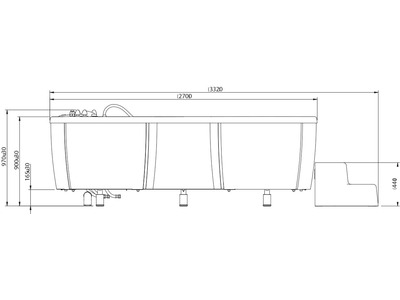

CH1100 - Side view
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 285 x 215 x 130 h kg 220 mc 7.96575
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 19/03/2019
Language: Italian, English
Version: V 2.0

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 225.8 KB
Register to access the content

User and maintenance manual

Manual
Document date: 11/02/2016
Language: English
Version: V 1.0
DOWNLOAD
PDF 1017.95 KB
Register to access the content
