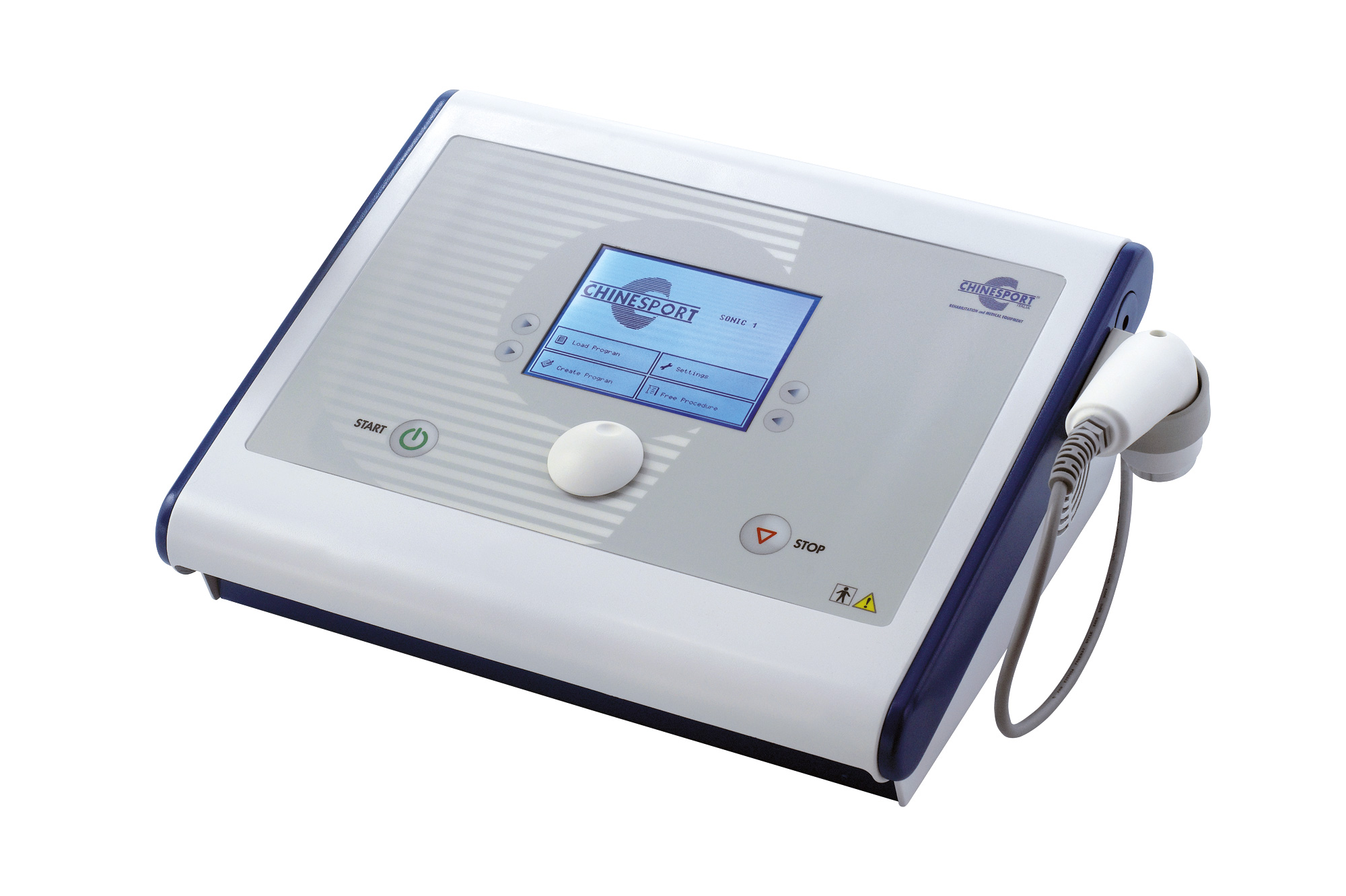

SONIC 1 - Plus Line

E
L
1
2
0
5
6
Quantity:

Description

Single output ultrasound therapy equipment, with 1 output, complete with 1/3 MHz multi-frequency handpiece. Display 320x240 px,  treatment time up to 60 minutes, 200 storable protocols. Smart Card included.



Our ultrasound equipment has luminous non contact indicator heads that  mean  you can check the correctness of the transmitting head - tissue contact. They are also self calibrating so they don't have to be adjusted. The SONIC series devices can provide ultrasound in continuous or pulsed mode and the duty cycle can be adjusted in different ways. This  significantly  reduces  the  diathermic  effect  as  the  heat  is  dispersed  in  the interval between one pulse and another. In  addition  pulsed  transmission  gives  the  technical  advantage  of  less  potential transducer overheating so higher intensities can be used.

Scientific experience has confirmed that the absorption of ultrasound significantly increases the extendibility of connective tissue. This is very important in the treatment of scarred tissue, surfaces, joint capsule surfaces and tendinitis.


THERAPEUTIC EFFECTS

The therapeutic effects of ultrasounds are partly due to the increase in temperature. These take the form of analgesia, relaxation of the muscles, and a fibrolytic and trophic effect.

  • Analgesia - The analgesic effect is due to the heat, and probably also the direct action of the ultrasounds on the sensitive nerve endings.
  • Relaxation of contracted muscles - Relaxation of contracted muscles is associated with the thermal effect and micro massaging of the tissue, induced by the passage of the ultrasounds.
  • Fibrolytic effect - Oscillation of the tissue particles, caused by the ultrasounds, results in disruption of the collagen fibers in fibrous and sclerotized tissue.
  • Trophic effect - Vasodilation, which results from a rise in temperature, facilitates the removal of catabolites and puts nutritive substances and oxygen into the tissue. In this way ultrasounds improve trophism of the tissue, facilitate repair of tissue damage and speed up resolution of inflammatory processes.



ACCESSORIES SUPPLIED

  • 1 Power cable
  • 1 Manual / certification
  • 2 Fuses
  • 1 Handpiece 5cm2 1/3 MHz
  • 1 Contact sensor with wire
  • 1 Smart Card
Accessories

Accessories

Personal Smart Card

EL0001
10-pack for planning patients' rehabilitation protocol, so as to make it easier and faster to use the equipment.
Ask for quotation

Carry Case

EL0016
Carry case for the unit transport
Ask for quotation

Handpiece 1 Cm²

EL0017
1-3 MHz cm, dual frequency, IP67 protection.
Ask for quotation

Handpiece 3 Cm²

EL0018
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 5 Cm²

EL0019
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Handpiece 8 Cm²

EL0020
1-3 MHz cm, double frequency. IP67 protection.
Ask for quotation

Sonic Arm P

EL0022
Swivel arm. Free mount.
Ask for quotation

Contact Gel

EL0023
Non-electroconductive gel, 250 g
Ask for quotation

Gel Canister

EL0024
Non-electroconductive gel, 5 l
Ask for quotation

Dispenser-Pump

EL0025
Pump for canister code EL0024.
Ask for quotation

Link Cable

EL0082
Cable to connect electrotherapy and ultrasound machines.
Ask for quotation

Wok Trolley

EL0191
Trolley with a support surface designed for use with Chinesport table top electro-medical devices. Compact and easy to handle on 4 casters.
Ask for quotation
Technical Spec.

Technical Spec.

Power supply:
230 Vac, 50-60Hz
Power supply:
115 Vac, 50-60Hz, upon request
Maximum mains power absorption:
40 VA
Backlit LCD display:
b/w graphics 320 x 240 pixels
Programmable treatment time:
up to 60 minutes
Electrical insulation class UNI EN 60601-1 standard:
I / BF
Device class 93/42/CEE directive:
II B
Degree of protection against the input of liquids UNI EN 60601-1 standard:
IPX0
Emission frequency:
1 MHz and 3 MHz
Duty Cycle adjustable:
10% – 100 %
Continuous peak power:
2 W/cm2
Pulsed peak power:
3 W/cm2
Output channels:
1
Stored protocols:
60
Storable protocols in the smart-card:
200
Storable protocols in the user memory:
200
Wxternal size (width x height x depth):
39 x 13x 32 cm
Weight:
4.2 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799793

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 40 x 30 h kg 5 mc 0.072
Documents

Documents


User and maintenance manual

Manual
Document date: 03/10/2018
Language: English
Version: V 1.0
DOWNLOAD
PDF 578.27 KB
Register to access the content

Manuale istruzioni

Manual
Document date: 03/10/2018
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 620.29 KB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 17/05/2016
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 331.53 KB
Register to access the content
