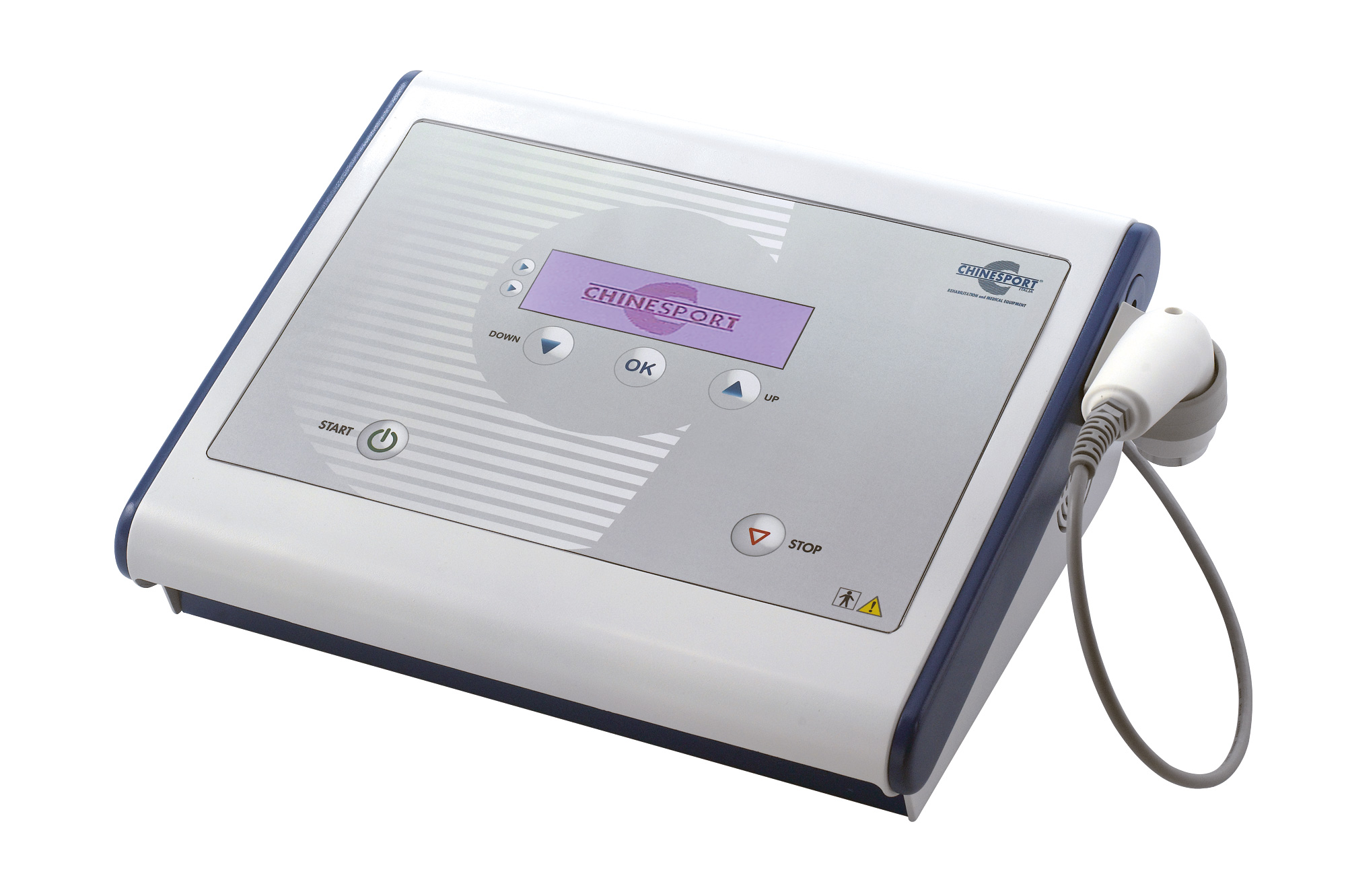

SONIC BASIC - Basic Line

E
L
1
2
0
5
5
Quantity:

Description

Table-top ultrasound therapy equipment, with 1 output, complete with 1/3 MHz multi-frequency handpiece. Display 240x64, treatment time up to 30 minutes, 10 storable protocols.



Our ultrasound equipment has luminous non contact indicator heads that mean you can check the correctness of the transmitting head-tissue contact. They are also self-calibrating so they don't have to be adjusted. The SONIC BASIC devices can provide ultrasound in continuous or pulsed mode and the duty cycle can be adjusted in different ways. This significantly reduces the diathermic effect as the heat is dispersed in the interval between one pulse and another. In addition pulsed transmission gives the technical advantage of less potential transducer overheating so higher intensities can be used .



Scientific experience has confirmed that the absorption of ultrasound significantly increases the extendibility of connective tissue. This is very important in the treatment of scarred tissue, surfaces, joint capsule surfaces and tendinitis



THERAPEUTIC EFFECTS

The therapeutic effects of ultrasounds are partly due to the increase in temperature. These take the form of analgesia, relaxation of the muscles, and a fibrolytic and trophic effect.


  • Analgesia - The analgesic effect is due to the heat, and probably also the direct action of the ultrasounds on the sensitive nerve endings.
  • Relaxation of contracted muscles - Relaxation of contracted muscles is associated with the thermal effect and micro massaging of the tissue, induced by the passage of the ultrasounds.
  • Fibrolytic effect - Oscillation of the tissue particles, caused by the ultrasounds, results in disruption of the collagen fibers in fibrous and sclerotized tissue.
  • Trophic effect - Vasodilation, which results from a rise in temperature, facilitates the removal of catabolites and puts nutritive substances and oxygen into the tissue. In this way ultrasounds improve trophism of the tissue, facilitate repair of tissue damage and speed up resolution of inflammatory processes.



ACCESSORIES SUPPLIED

  • 1 Power cable
  • 1 Manual / certification
  • 2 Fuses
  • 1 Handpiece 5cm² 1/3 MHz
  • 1 Contact sensor with wire
Accessories

Accessories

Carry Case

EL0016
Carry case for the unit transport

Handpiece 1 cm2

EL0017
1-3 MHz cm, dual frequency, IP67 protection.

Handpiece 3 cm2

EL0018
1-3 MHz cm, double frequency. IP67 protection.

Handpiece 5 cm2

EL0019
1-3 MHz cm, double frequency. IP67 protection.

Handpiece 8 cm2

EL0020
1-3 MHz cm, double frequency. IP67 protection.

Sonic Arm

EL0021
Suitable for all handpieces. Can be mounted on trolley code EL0003.

Sonic Arm P

EL0022
Swivel arm. Free mount.

Contact Gel

EL0023
Non-electroconductive gel, 250 g

Gel Canister

EL0024
Non-electroconductive gel, 5 kg

Dispenser-Pump

EL0025
Pump for canister code EL0024.

Link Cable

EL0082
Cable to connect electrotherapy and ultrasound machines.

Trolley

EL12003
Trolley with tabletop and possibility of fixing non wheeled electromedical equipment and the arms.
Technical Spec.

Technical Spec.

Power supply:
230 Vac, 50-60Hz, ±10%
Power supply (on demand):
115 Vac, 50-60Hz
Maximum mains power absorption:
40 VA
Backlit LCD display:
w/b graphics 240 x 64 pixels
Programmable treatment time:
up to 30 minutes
Electrical insulation class UNII EN 60601-1 standard:
I / BF
Device class 93/42/CEE directive:
II B
Degree of protection against the input of liquids UNI EN 60601-1 standard:
IPX0
Emission frequency:
1 MHz and 3 MHz
Duty Cycle adjustable:
10% - 90%
Continuous peak power:
2 W / cm²
Pulsed peak power:
3 W / cm²
Output channels:
1
Stored protocols:
20
Storable protocols in the user memory:
10
External size:
39 x 13 x 32 cm
Weight:
3,6 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799779

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 40 x 28 h kg 7 mc 0.0672
Documents

Documents


Therapies manual for ultrasound units

This manual illustrates both the physical bases of ultrasound therapy and the electro-physiological bases connected with its use on the human body and related therapeutic effects.
Therapy manual
Language: English
DOWNLOAD
PDF 250.75 KB
Register to access the content

EL12055 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 1.44 MB
Register to access the content

EL12055 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 1.46 MB
Register to access the content

EL12055 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 331.53 KB
Register to access the content

EL12055 - Certificate

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 1.95 MB
