SUNLAMP 70 UVB

E
L
1
5
0
7
7
Quantity:

Description

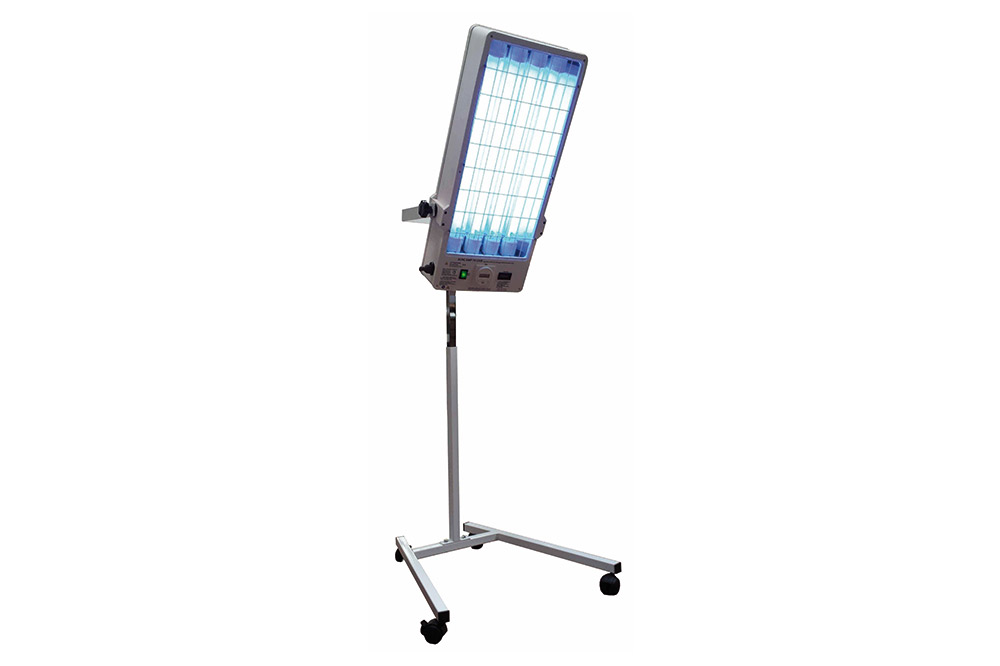

The ultraviolet radiation is obtained with 4 pressure fluorescent tube type Philips TL 20W/01 whose emission is particularly concentrated into UVB radiations zone (peak at 311nm). This lamp can be programmed for a functioning until 30 minutes (10 minutes for UVAB version) by a digital timer. When the programmed time is over, there is an automatic switching off. This device is equipped with a rotating base and tilting head for horizontal positioning.



Applies to CE 93/42



APPLICATIONS:

  • Use in dermatologic field: phototherapy for the treatment of skin affections such as psoriasis, vitiligo, baldness, atopic dermatitis, itching ...
  • Use in orthopedic field: anti-rickety action by vitamin D production, osteoporosis cure, treatment of fractures
Technical Spec.

Technical Spec.

Power supply:
230V 50Hz
Rated power:
4 x 20W
IP protection:
IP 21
Directive:
CE 93/42: II A
IEC Safety class:
Classe II tipo B
Fluorescent tubes lenght:
60 cm
Dimensions of lamp box:
36 x 11 x 75 cm
Height adjustment:
130 cm Min - 186 cm Max
Weight:
14 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 71 x 71 x 16 h kg 7 mc 0.080656
2 SCATOLA cm 80 x 43 x 15 h kg 9 mc 0.0516
Documents

Documents


EL15077 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 543.75 KB
Register to access the content

EL15077 - Compliance statement

Declaration of conformity
Language: Italian
DOWNLOAD
JPEG 366.35 KB
Register to access the content

EL15077 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 562.77 KB
Register to access the content

EL15077 - Compliance statement

Declaration of conformity
Language: English
DOWNLOAD
PDF 123.55 KB
Register to access the content
