Description

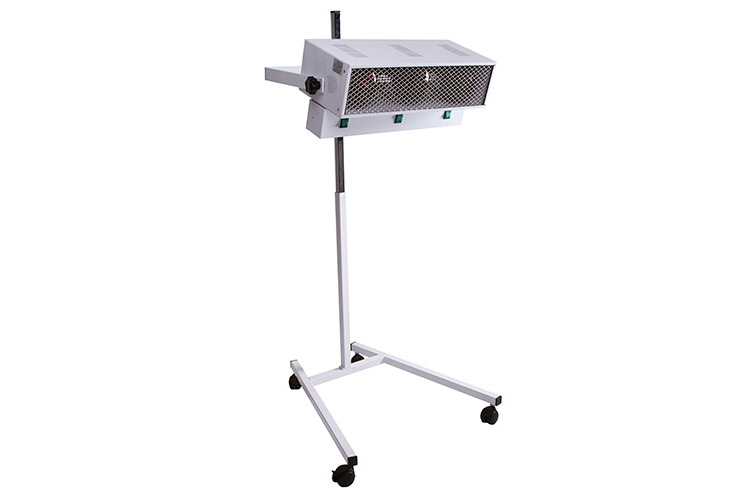

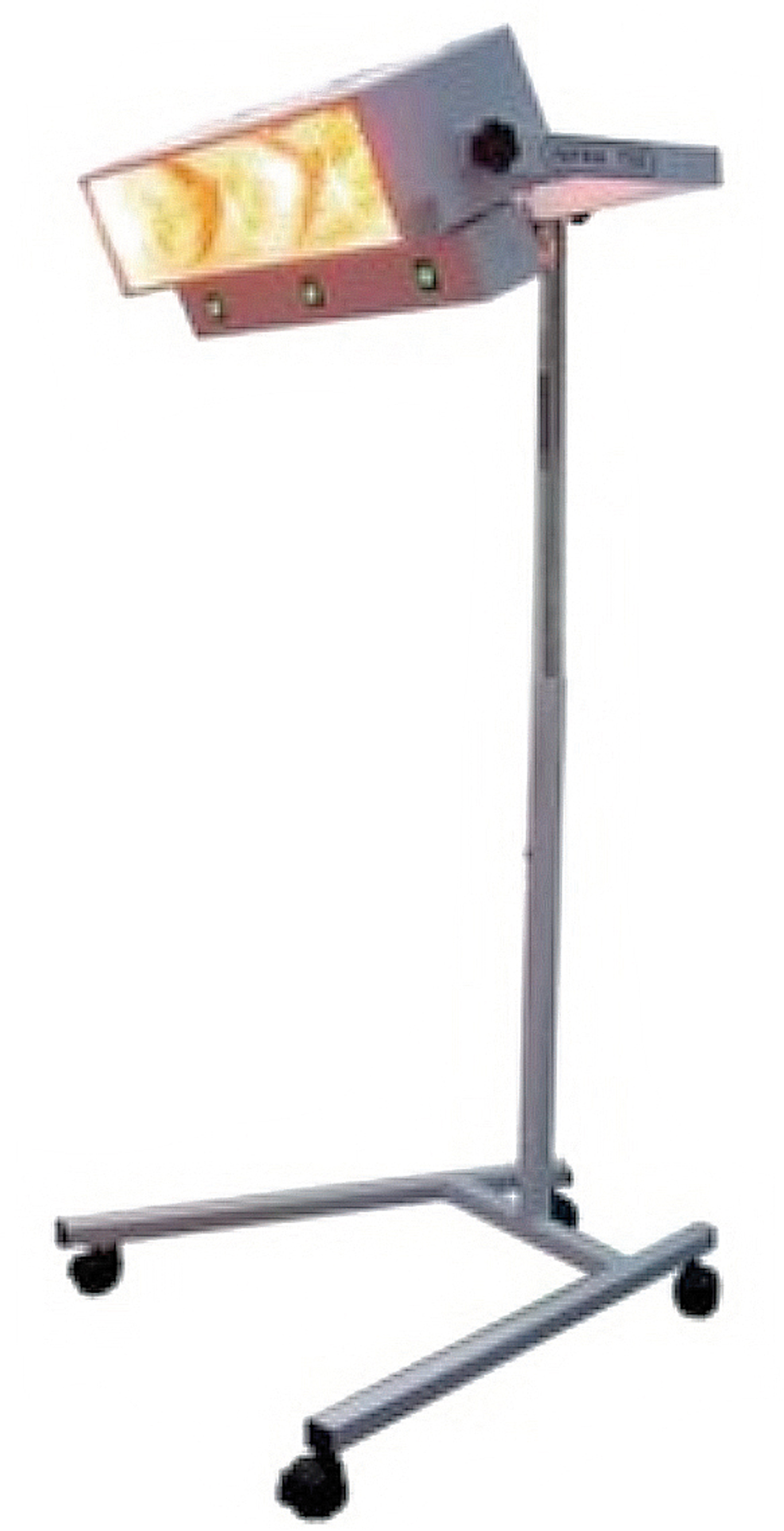

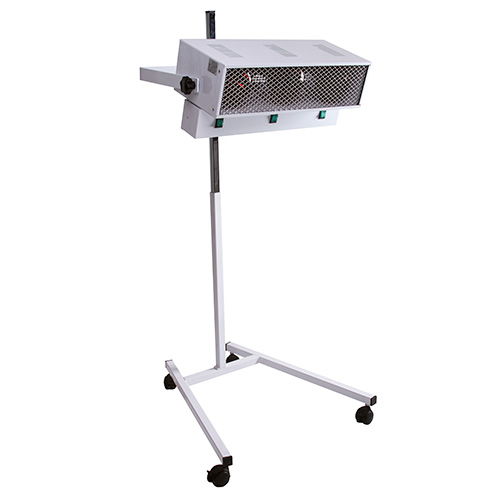

The device is equipped with 3 IR lamps of 250W 230V each one, placed on a base with wheels. It's possible to regulate the inclination of the lamps. This device can be programmed for a functionning until 15 minutes. When the programmed time is over, there is an automatic switching off. Each IR lamp has a switch for independent switching on/off.


Mechanical timer for treatments up to 15 minutes. Conforms to EC 93/42 Class II A and to Standard EN 60601-1  Class I Type B.



THERAPEUTIC INDICATIONS :

  • Use in orthopedic field : treatment of arthritis, lumbago, rheumatisms, sprains, and generally where a penetrating heat source is needed.
  • Use in physiotherapic field : massage preparation and body heating for a better absorbation of creams by the skin.
  • Heating : in cold rooms it's possible to obtain an immediate heating for the irradiate person.



Caution: This device can be used only under medical supervision or professional supervision.

Technical Spec.

Technical Spec.

Power supply:
230 V, 50/60 Hz
Rated power:
3 x 250 W
Lamp holder dimensions:
55 x 15 x 21 cm
Adjustable height:
from 82 to 152 cm
Weight:
14 kg
IP Protection:
IP 20
Directive CEE 93/42:
Class II A
Standard EN 60601 - 1:
Class I Type B
Infrared irradiation intensity of one single lamp - at 20 cm:
340 mW/cm²
Infrared irradiation intensity of one single lamp - at 30 cm:
170 mW/cm²
Infrared irradiation intensity of one single lamp - at 40 cm:
100 mW/cm²
Infrared irradiation intensity of one single lamp - at 50 cm:
70 mW/cm²
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
72995

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 58 x 29 x 28 h kg 7 mc 0.047096
2 SCATOLA cm 71 x 70 x 16 h kg 9.5 mc 0.07952
Documents

Documents


EL0157 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 633.5 KB
Register to access the content

EL0157 - Compliance statement

Declaration of conformity
Language: English
DOWNLOAD
JPEG 306.12 KB
Register to access the content

EL0157 - Compliance statement

Declaration of conformity
Language: Italian
DOWNLOAD
JPEG 334.51 KB
Register to access the content
