{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}

Description

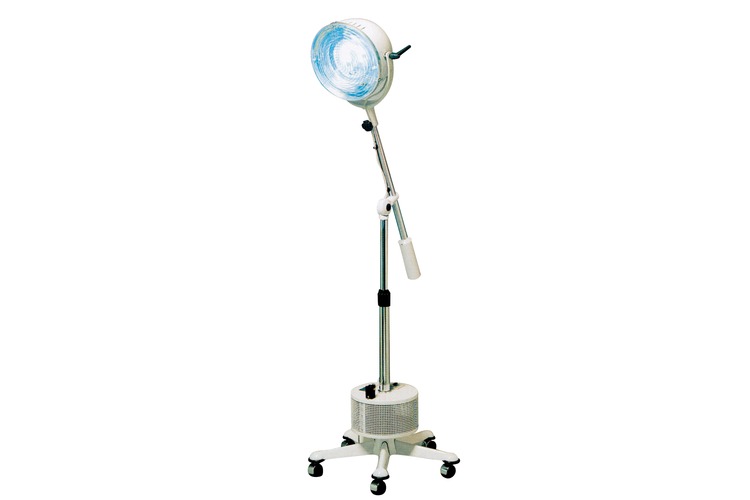

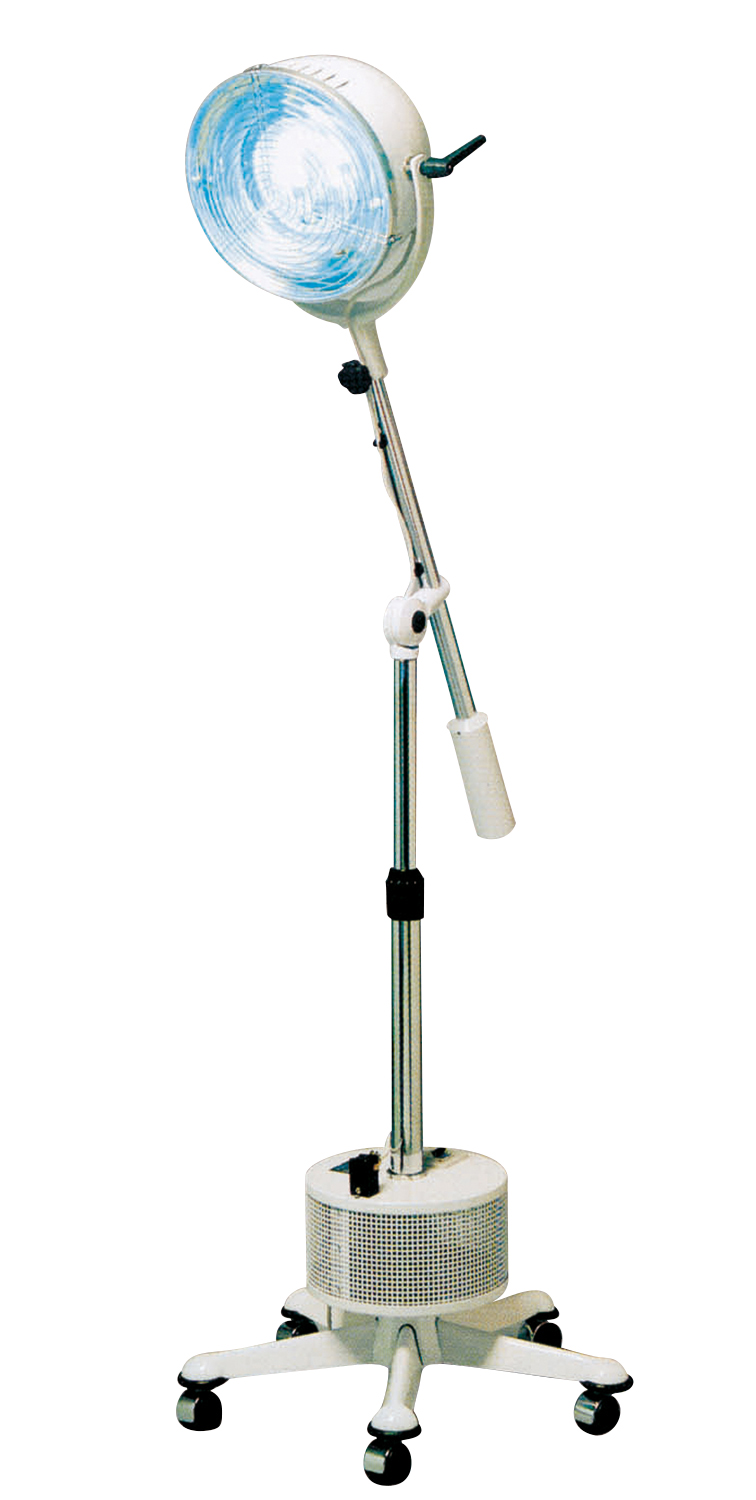

This high performance device is fitted for professional use (in Hospitals, outpatient's departments, ...) where a long-daily operation on more patients is needed. This lamp can be programmed for a functioning until 15 minutes.  When the programmed time is over, there is an automatic switching off. Thanks to UV and IR separate operation, this device has many different applications.



This device has a vertical and horizontal regulation and the helmet can be inclined to irradiate every part of the patient's body. Mounted on a wheeled height-adjustable stand, fitted with tilting arm.



THERAPEUTIC INDICATIONS

  • ULTRAVIOLET RAYS (UV):
    Use in dermatologic field : treatment of skin affections such as psoriasis, vitiligo, acne, mycoses, herpes, baldness, pitiriasis, etc.;
    Use in orthopedic field: antirachitic action by vitamin D production, osteoporosis cure, treatment of fractures, etc.
  • INFRARED RAYS (IR):
    Use in orthopedic field: treatment of arthritis, lumbago, rheumatisms, sprains.



Caution: This device can be used only under medical supervision or professional supervision.

Technical Spec.

Technical Spec.

Power supply:
230 V 50 Hz
IR rated power:
950 W
UV rated power:
550 VA
IP Protection:
IP 20
Directive CEE 93/42:
Class II B
IEC Safety class:
Class I Type B
Weight:
22 kg
Diameter of helmet reflector:
32 cm
Jutting out arm lenght:
45 cm
Adjustable height range:
200 cm
Adjustable arm tilt:
> 90°
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 73 x 60 x 41 h kg 7.5 mc 0.17958
2 SCATOLA cm 108 x 15 x 9 h kg 8 mc 0.01458
3 SCATOLA cm 61 x 61 x 80 h kg 12 mc 0.29768
Documents

Documents


Scheda tecnica

Insights
Language: Italian
DOWNLOAD
PDF 142.34 KB

EL0073 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 768.28 KB
Register to access the content

EL0073 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 989.36 KB
Register to access the content
