MICRORADAR PULS - Plus Line

E
L
1
2
0
6
0
Quantity:

Description

MICRORADAR PULS is a medical device that emits microwave-therapy treatments, with the auxilium of antennas for the emission of the treatment in continuous and pulsed operating modes.



Medical use of microwaves is mainly based on the fact that the microwaves are selectively absorbed by tissues with high water content. They can therefore heat certain selective areas such as muscles for example, while the penetration and absorption at bone level is minimal. Once electromagnetic waves come in contact with organic tissue, they transform most of their radiating energy into heat (caloric energy) with different degrees of penetration mainly limited to muscular and peri-articular tissues (skin and subcutaneous, tendons, sheaths, muscle bands, synovia).



Normal applications of heat treatment (including short-wave therapy) are generally used to treat the following conditions:

  • Reduction of pain
  • Improvement in collagen extendibility
  • Reduction in articular rigidity
  • Reduction of oedema and inflammatory exudates
  • Increase in blood flow



ACCESSORIES SUPPLIED

  • 1 Power cable
  • 1 Manual
  • 2 Fuses
  • 1 Pantograph arm
  • 1 High frequency output cable
  • 1 Circular antenna
  • 1 Smart Card
Accessories

Accessories

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.

Rectangular Antenna

EL0026
Long-field antenna, 47 x 12 x 7h cm

Three-Dimensional Antenna

EL0027
Wrap-around field antenna, 50 x 20 x 18h cm
Technical Spec.

Technical Spec.

Power supply:
230 Vac 50-60 Hz
Power supply (upon request):
115 Vac 50-60 Hz
Maximum mains power absorption:
600 VA
Backlit LCD:
graphics 320 x 240 pixels
Programmable treatment time:
up to 30 minutes
Emission frequency:
2450 MHz
Device class 93/42/CEE directive:
II B
Electrical insulation UNI EN 60601-1 standard:
I / BF
Degree of protection by the liquid access UNI EN 60601-1 standard:
IPX0
Operation continuous:
100%
Operation pulsed:
10% ÷ 90%
Continuous power peak:
250 W
Pulsed power peak:
1600 W
Stored protocols:
100
Storable protocols in the user memory:
200
Storable protocols in the smart-card:
200
Dimensions with arm and antenna not mounted:
39 x 112 x 43 cm
Dimensions with arm and antenna mounted:
65 x 177 x 43 cm

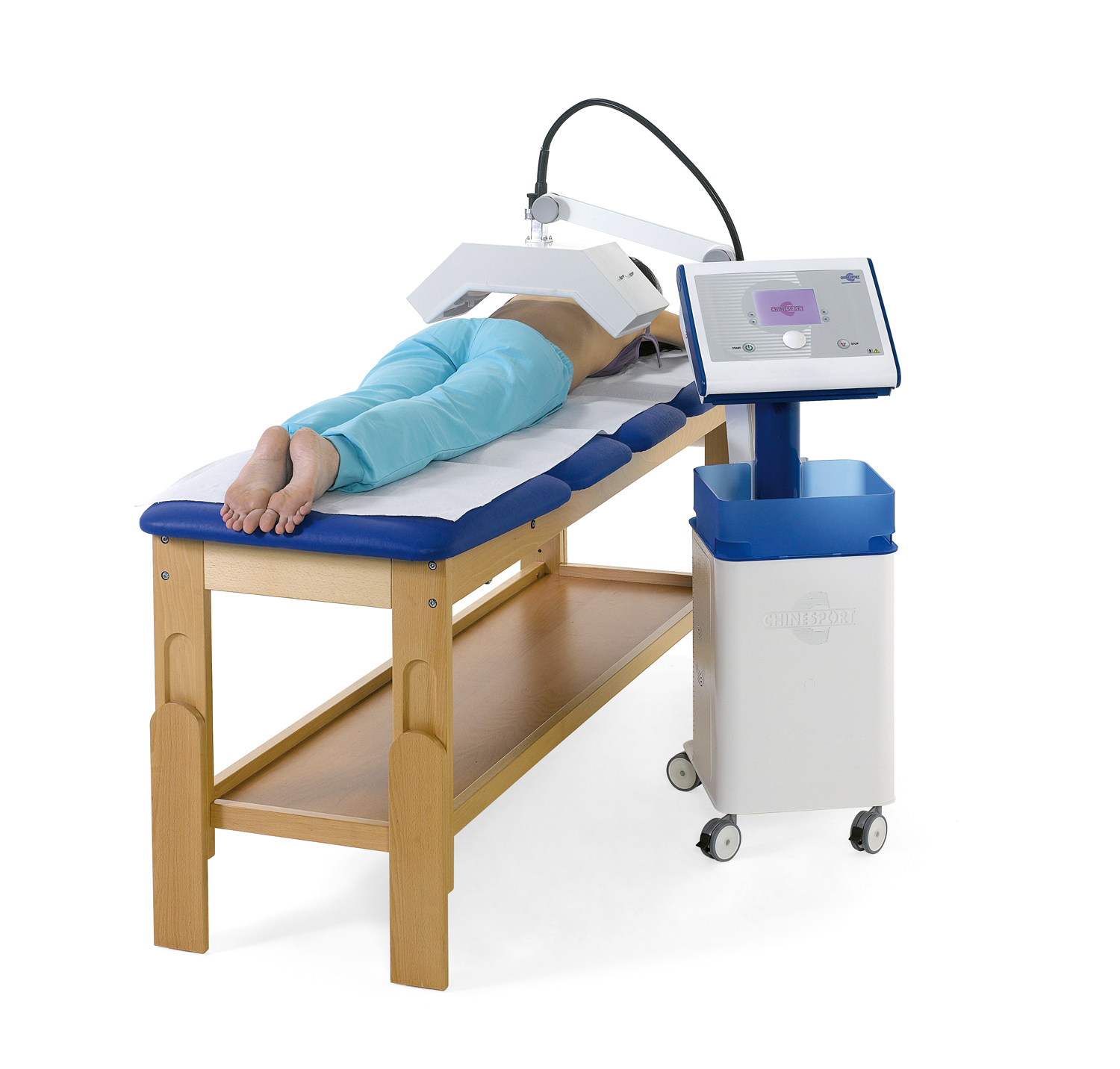

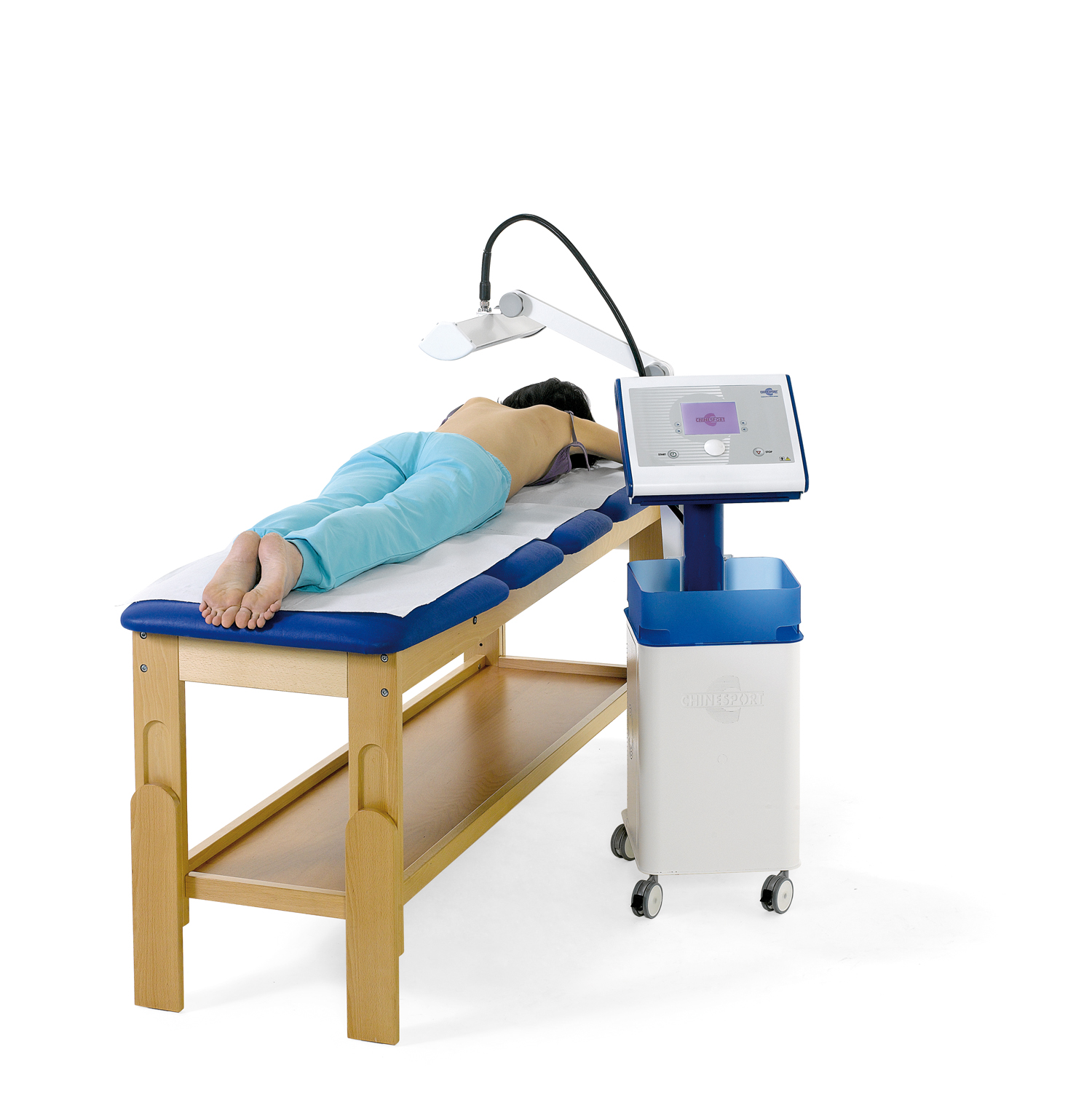

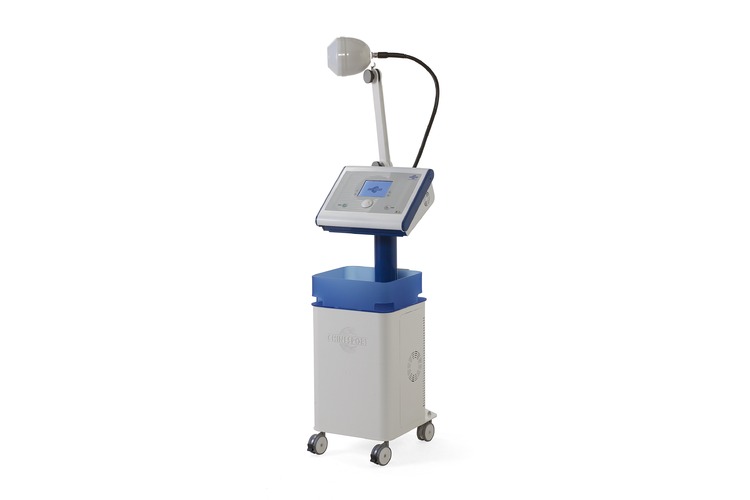

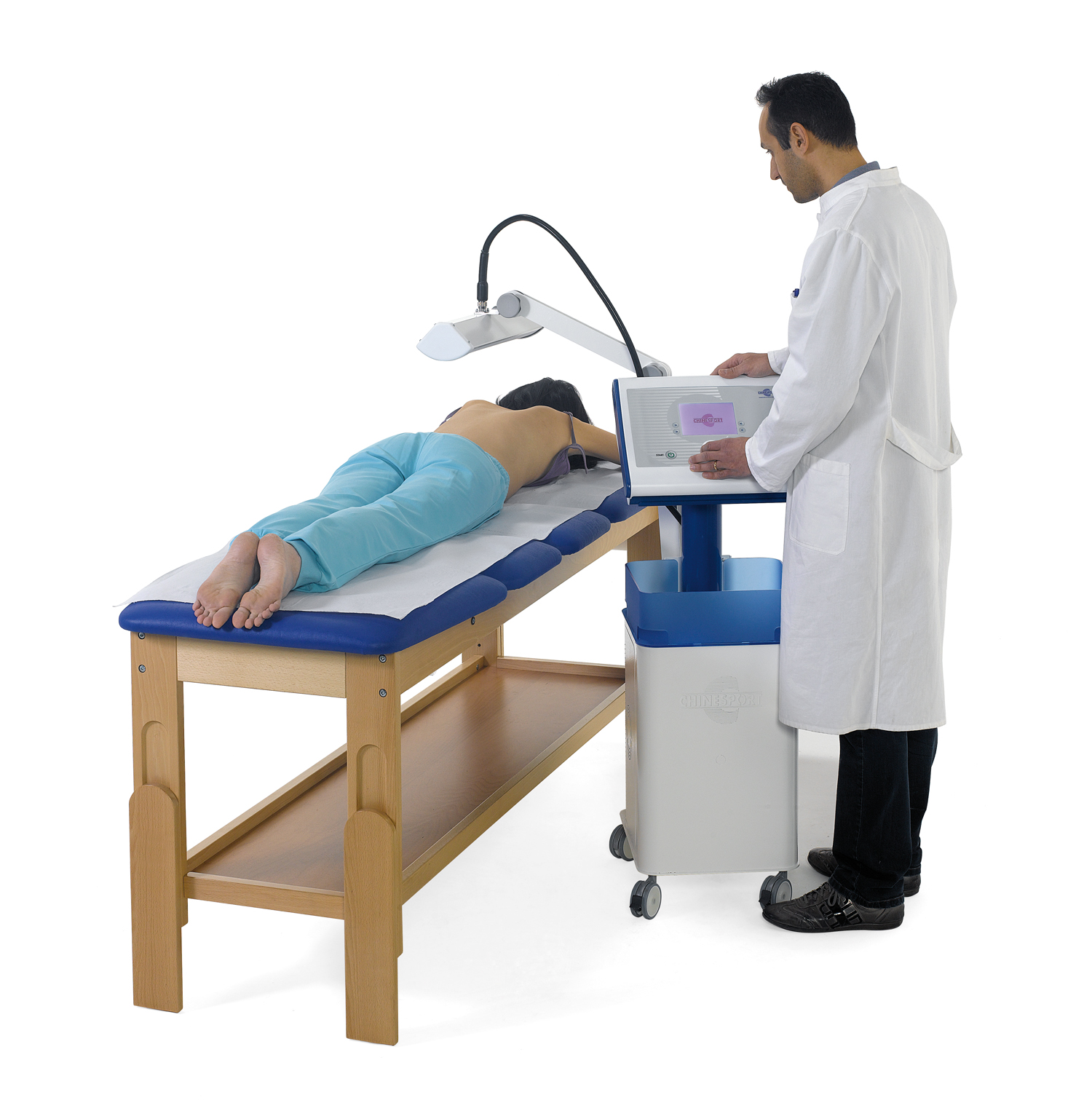

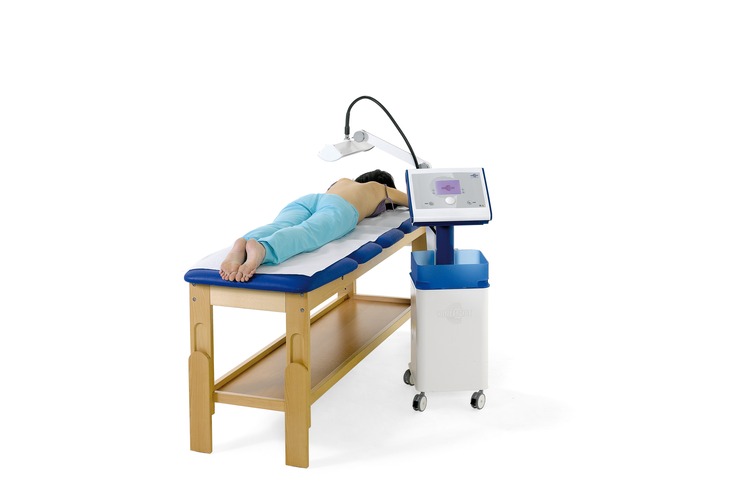

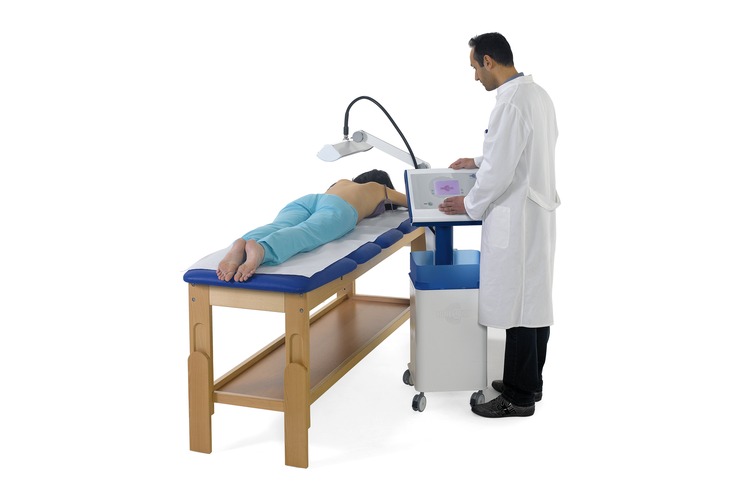

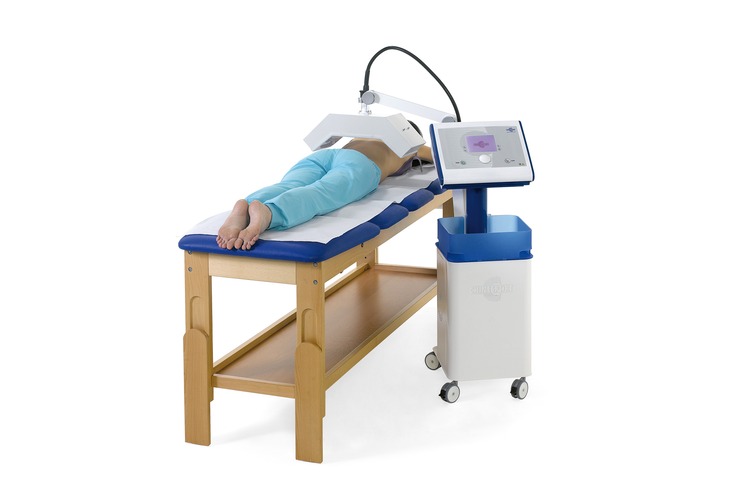

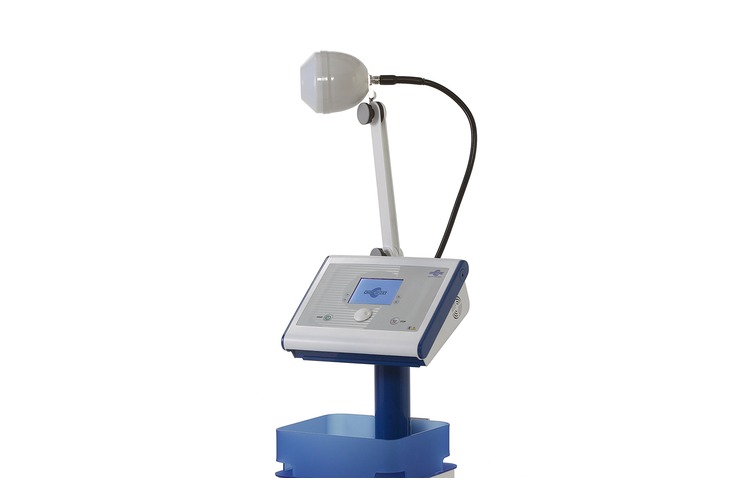

Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799869

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 125 x 61 x 64 h kg 45 mc 0.488
Documents

Documents


EL12060 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 1.31 MB
Register to access the content

EL12060 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 1.23 MB
Register to access the content

EL12060 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 114.9 KB
Register to access the content
