ARTIPRESS

E
L
1
2
0
6
6
Quantity:

Description

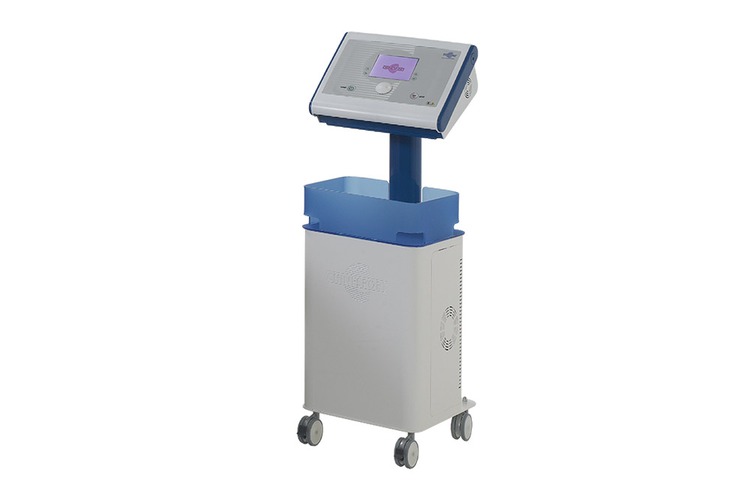

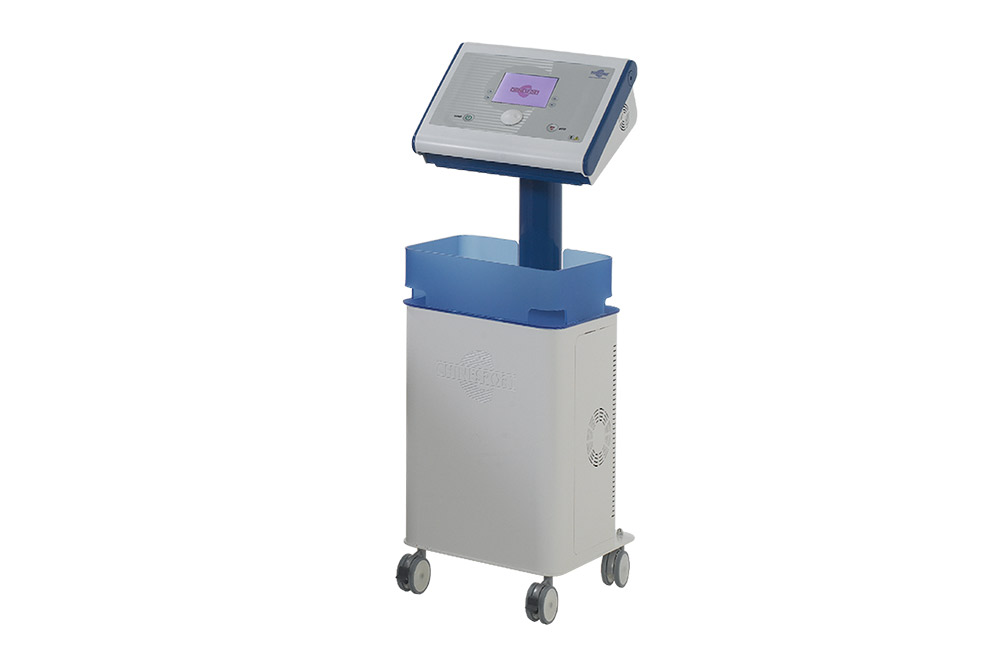

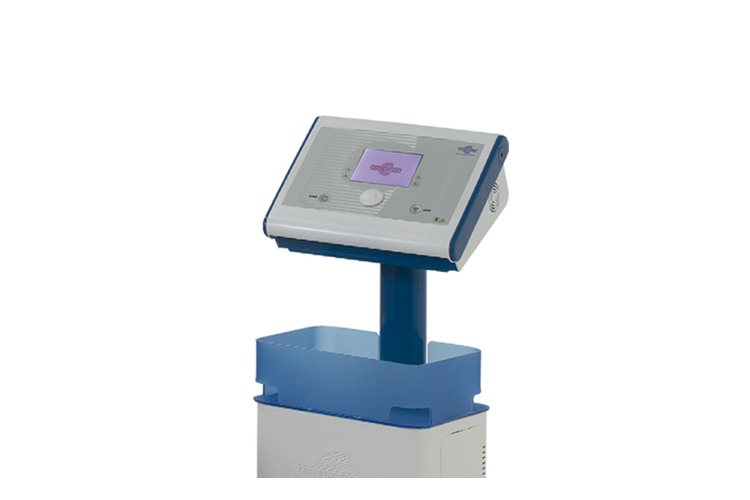

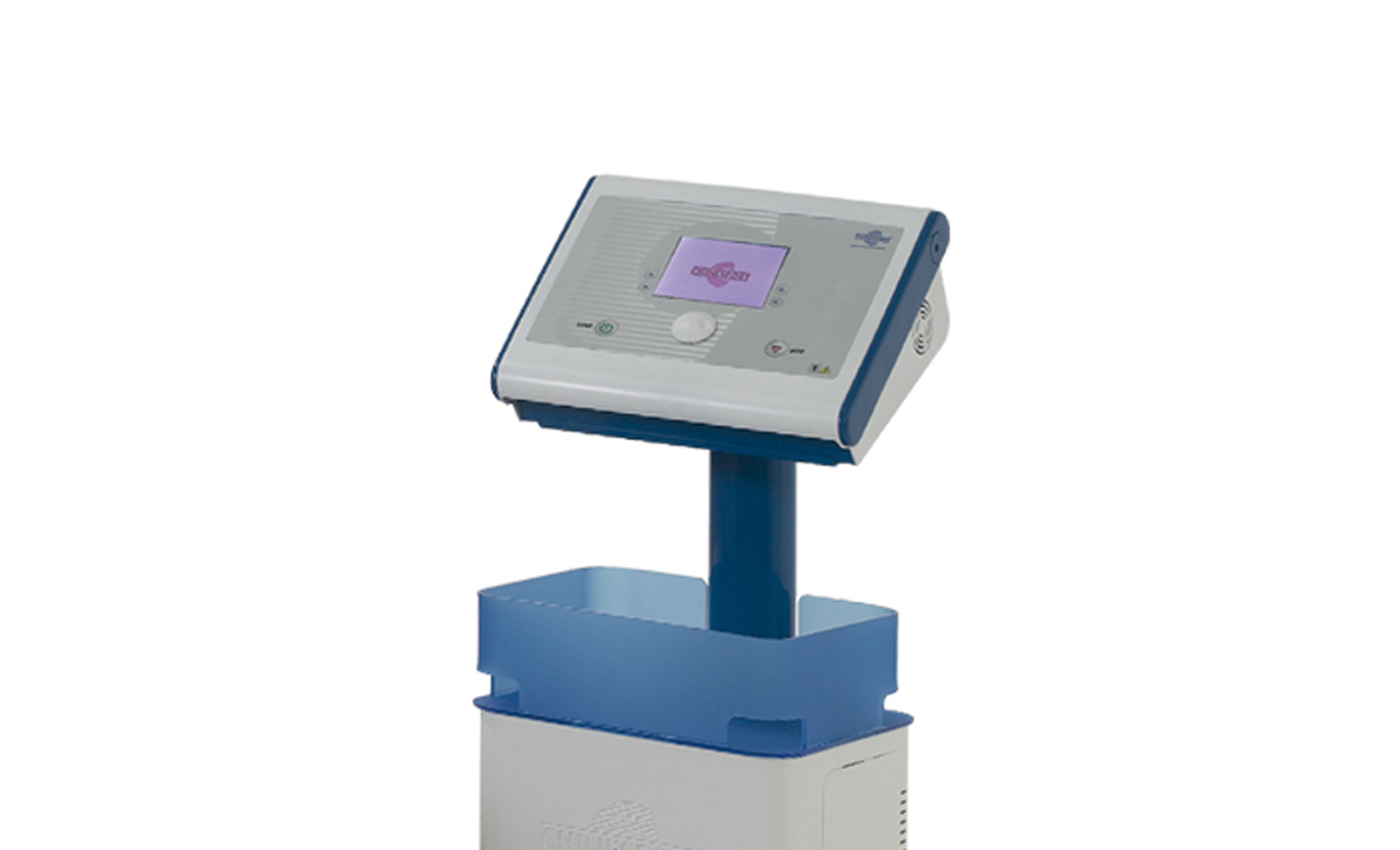

Pressure therapy equipment with 9 independent sectors. Pressure therapy is a therapeutic massage which helps fighting oedemas and improves blood circulation thanks to the application of a pressure. This pressure is applied in a sequential order to treat the inferior limbs suffering from oedema, water retention and circulatory problems. Pressure therapy acts on blood and lymphatic circulation helping it be more efficient and improving aesthetic blemishes such as cellulite, water retention, etc.


Compression therapy is indicated for the following:

  • Treatment of disorders associated with vascular or lymphatic insufficiency such as Chronic Venous Insufficiency (CVI), venous stasis ulcers, post-mastectomy edema and chronic lymphedema.
  • Reduction of edema associated with soft tissue injuries such as burns, postoperative edema, and ligament sprains.
  • Decrease risk of Deep Vein Thrombosis (DVT)



ACCESSORIES SUPPLIED:

  • 1 Power cable
  • 2 Fuses
  • 1 Smart Card
  • 1 Kit for lower limbs
  • 1 User manual and certification
Accessories

Accessories

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.

Upper Limbs Kit

EL0067
7-sector armband.
Technical Spec.

Technical Spec.

Power supply:
230 Vac , 50-60 Hz
Power supply (on request):
115 Vac , 50-60 Hz
Maximum mains power absorption:
150 VA
LCD display:
B/W 320 x 240 pixel
Programmable treatment time:
up to 60 minutes
Number of pneumatic sectors (output):
9
Air capacity of the compressor:
25 lt/min
Compressor power:
106 VA
Maximum pressure delivered by the compressor:
3.5 atm
Maximum current absorbed by the compressor:
0.45 A
Device class 93/42/CEE directive:
II A
Electrical insulation UNI EN 60601-1 standard:
I / BF
Degree of protection by the liquid access UNI EN 60601-1 standard:
IPX0
Maximum pressure:
150 mm Hg
Stored protocols:
21
Storable protocols in the user memory:
100
Storable protocols in the smart-card:
100
External size:
39 x 43 x 122 h cm
Weight:
30 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0800869

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 125 x 61 x 63 h kg 46 mc 0.480375
Documents

Documents


EL12066 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 449.86 KB
Register to access the content

EL12066 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 488.83 KB
Register to access the content

EL12066 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 114.87 KB
Register to access the content

EL12066 - Certificate

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 1.95 MB

EL12066 - Therapies manual

Assembly instructions
Language: English/Italian
DOWNLOAD
PDF 396.25 KB
