FISIOLASER IRD 2 - Plus Line

E
L
1
2
0
6
2
Discontinued

Description

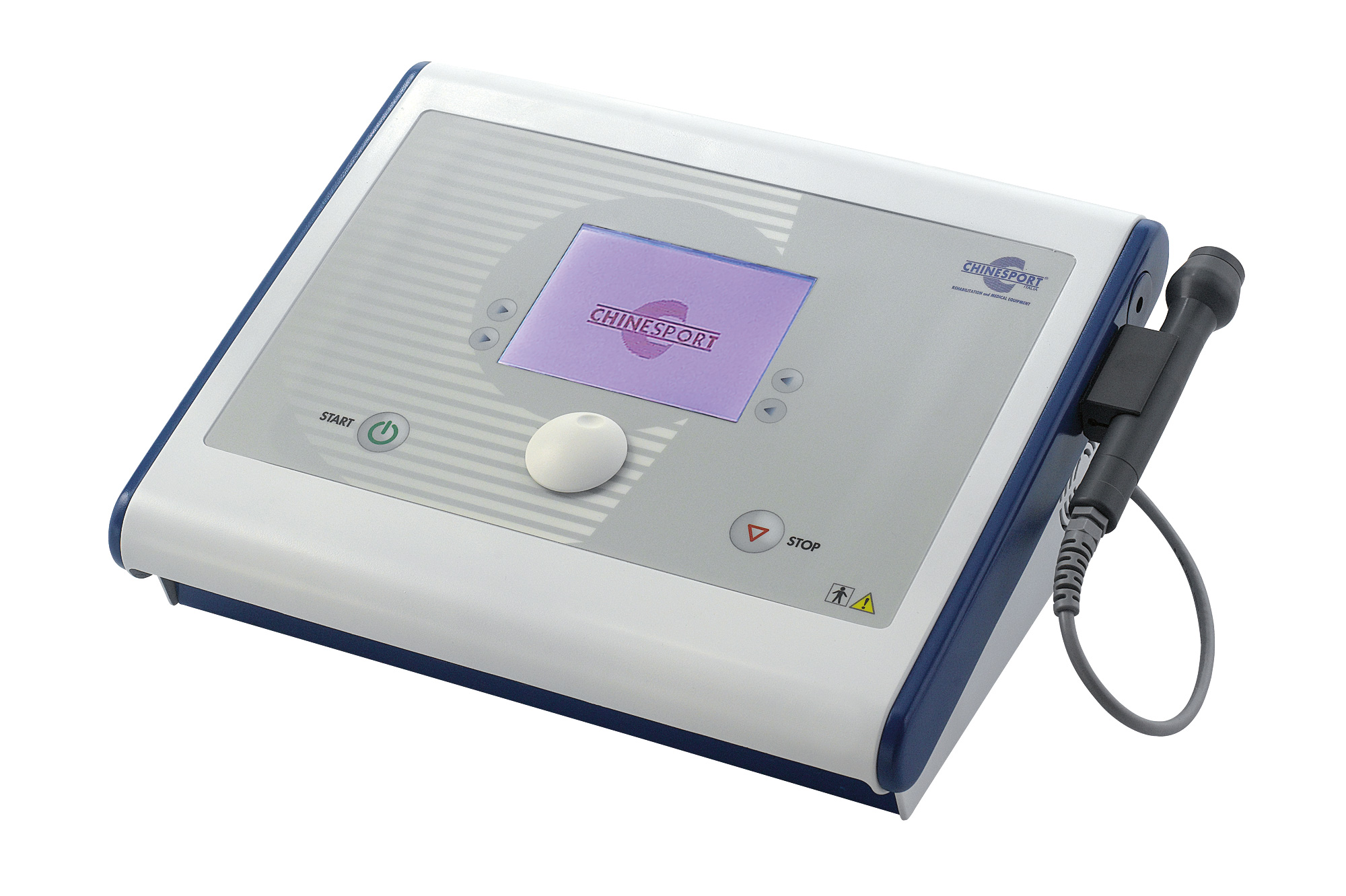

Laser therapy equipment with 2 independent outputs. Automatic treatment time setting according to the energy to be provided and the area selected. Smart card included. Laser wavelength 905 nm. Smart card included.


This type of device is used with single-diode or multiple-diode handpieces which are directly put on the skin for the therapeutic treatment. Choosing the laser technology, based on the emission by diodes is motivated by its greater efficiency when considering energy, its longer working life and a simpler maintenance if compared to other technologies which have similar therapeutic results. Twelve different handpieces are available (optional accessories). They are interchangeable and their difference is based on the number of diodes (1-8) and the nominal power transmitted by each diode (25mW – 100mW) up to a maximum of 800 mW for an area of up to 5 cm2. Each handpiece not only has the afore mentioned diodes for therapy emissions (905nm), they also guarantee a perfect pointing of the therapy by the presence of a guiding light generated by other two pointing diodes which generate a visible red light.



The devices propose some pre-set protocols with the recommendable fluence rate for each type of treatment. The operator is free to adjust the treatment time or the frequency, according to the area to be treated and the power of the handpiece in use, in order to convey the fluence rate necessary for the treatment. These devices are provided with secret access code and security key (Interlock), as established by law.


ACCESSORIES SUPPLIED

  • 1 Mains power supply cable
  • 1 User’s manual
  • 2 Spare fuses
  • 1 MLA1 Laser probe 25mW
  • 2 Safety laser goggles
  • 1 Interlock connector
  • 1 Smart-card


DIODE / PROBE CHARACTERISTICS

- Peak power for single diode: 25 W, 50 W, 100 W, 500 W

- Target pointing device characteristics:

  • Target pointing device UNI EN 60601-2-22: 2 light-drive
  • Light-drive device: Led-diode
  • Light-drive color: red
  • Light-drive representation on the impact point: Spot with red as colour
  • Laser-beam positioning: Always to the centre of the simmetry axis of 2 red spots


RECOMMENDED FIELDS:

  1. Rheumatology
  2. Orthopedics
  3. Dermatology
  4. Dentistry
  5. Otorlaryngology
  6. Neurology
  7. Laser acupuncture
Accessories

Accessories

Personal Smart Card

EL0001
10-pack for planning patients' rehabilitation protocol, so as to make it easier and faster to use the equipment.
Ask for quotation

Carry Case

EL0016
Carry case for the unit transport
Ask for quotation

1-Diode Handpiece - 25mw

EL0028
Handpiece 1 diode, 25mW
Ask for quotation

1-Diode Handpiece - 100mw

EL0030
Handpiece 1 diode, 100mW.
Ask for quotation

3-Diode Handpiece - 75mw

EL0031
Handpiece 3 diode, 75mW.
Ask for quotation

3-Diode Handpiece - 300mw

EL0033
Handpiece 3 diode, 300 mW.
Ask for quotation

5-Diode Handpiece - 500mw

EL0036
Handpiece 5 diode, 500 mW.
Ask for quotation

Wok Trolley

EL0191
Trolley with a support surface designed for use with Chinesport table top electro-medical devices. Compact and easy to handle on 4 casters.
Ask for quotation

Arm For Laser Handpieces

EL0193
Free fixing pantograph arm for handpiece
Ask for quotation
Technical Spec.

Technical Spec.

Mains voltage:
230 Vac, 50-60Hz
Mains voltage (on request):
115 Vac, 50-60Hz
Max. Power absorption:
15 VA
Interlock socket/Safety key:
3 contact DIN socket
Backlit LCD Display:
graphic w/b 320 x 240 pixel
Programmable treatment time:
up to 99 minutes
Diode Laser wave length emission:
905 nm
Laser classification EN 60825-1:
3B
Device class 93/42/CEE directive:
II B
Electrical insulation UNI EN 60601-1:
I/BF
Degree of protection by the liquid access UNI EN 60601-1:
IPX0
Programmable pulse frequency:
(200-10.000) Hz
Pulse duration:
100 nsec
Typology for emission of the treatment:
Manual, automatic, continuous emission
Output channels:
2
Stored protocols:
79
Storable protocols on the smart-card:
50
External size:
39 x 13 x 32 cm without probe-holders
Weight:
4,3 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799873

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 40 x 30 h kg 7 mc 0.072
Documents

Documents


Manuale istruzioni

Manual
Document date: 01/07/2018
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.19 MB
Register to access the content

User and maintenance manual

Manual
Document date: 01/07/2018
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.3 MB
Register to access the content
