FISIOLASER IRD - Plus Line

E
L
1
2
0
6
1
Quantity:

Description

Laser therapy equipment with 1 output. Automatic treatment time setting according to the energy to be provided and the area selected. Smart card included. Laser wavelength 905 nm. Smart card included.

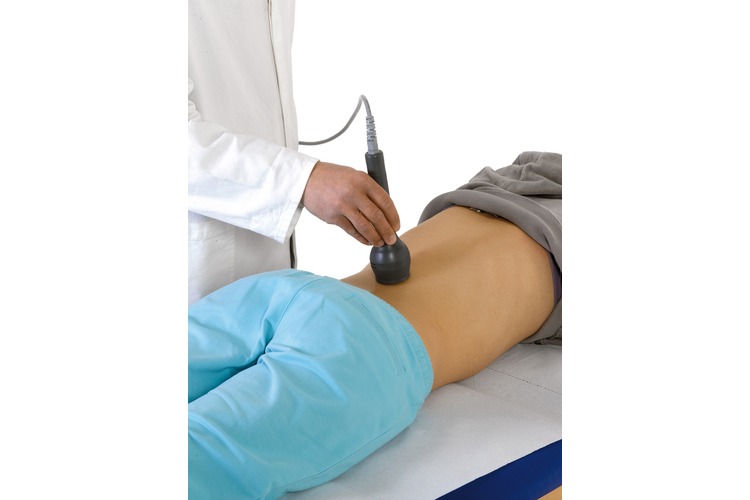

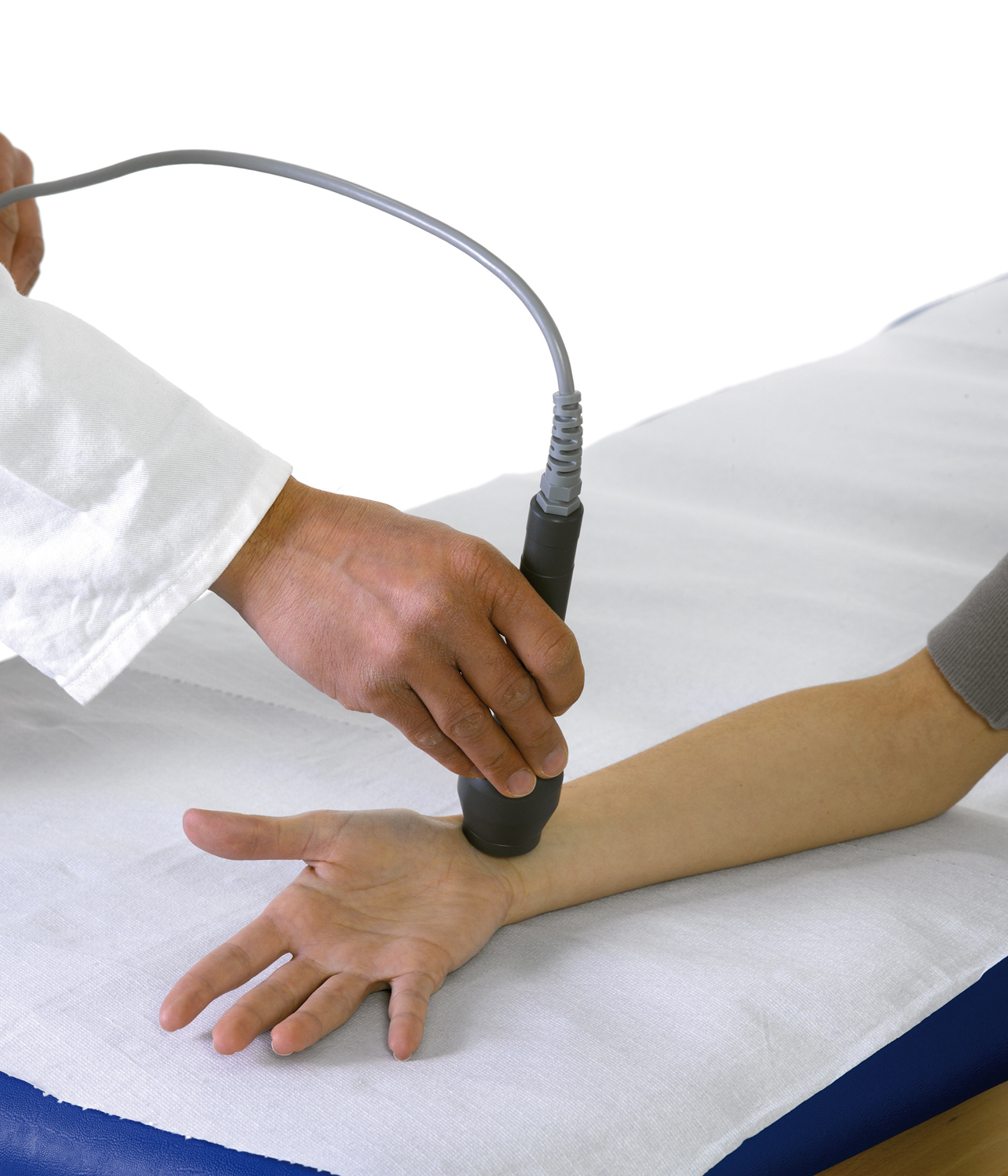

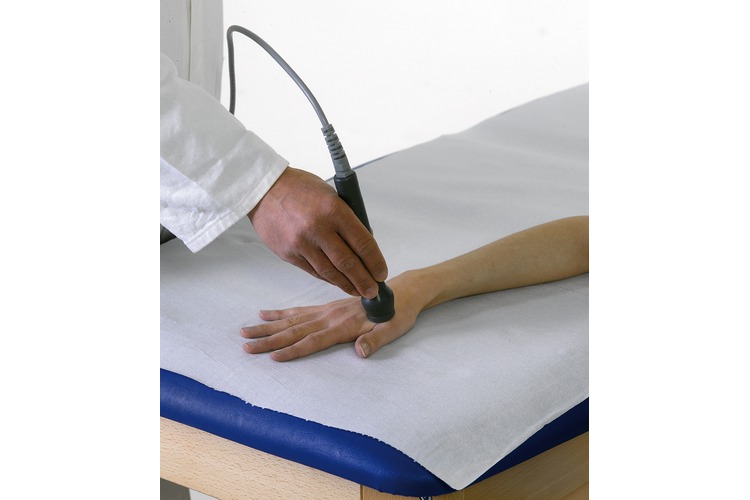

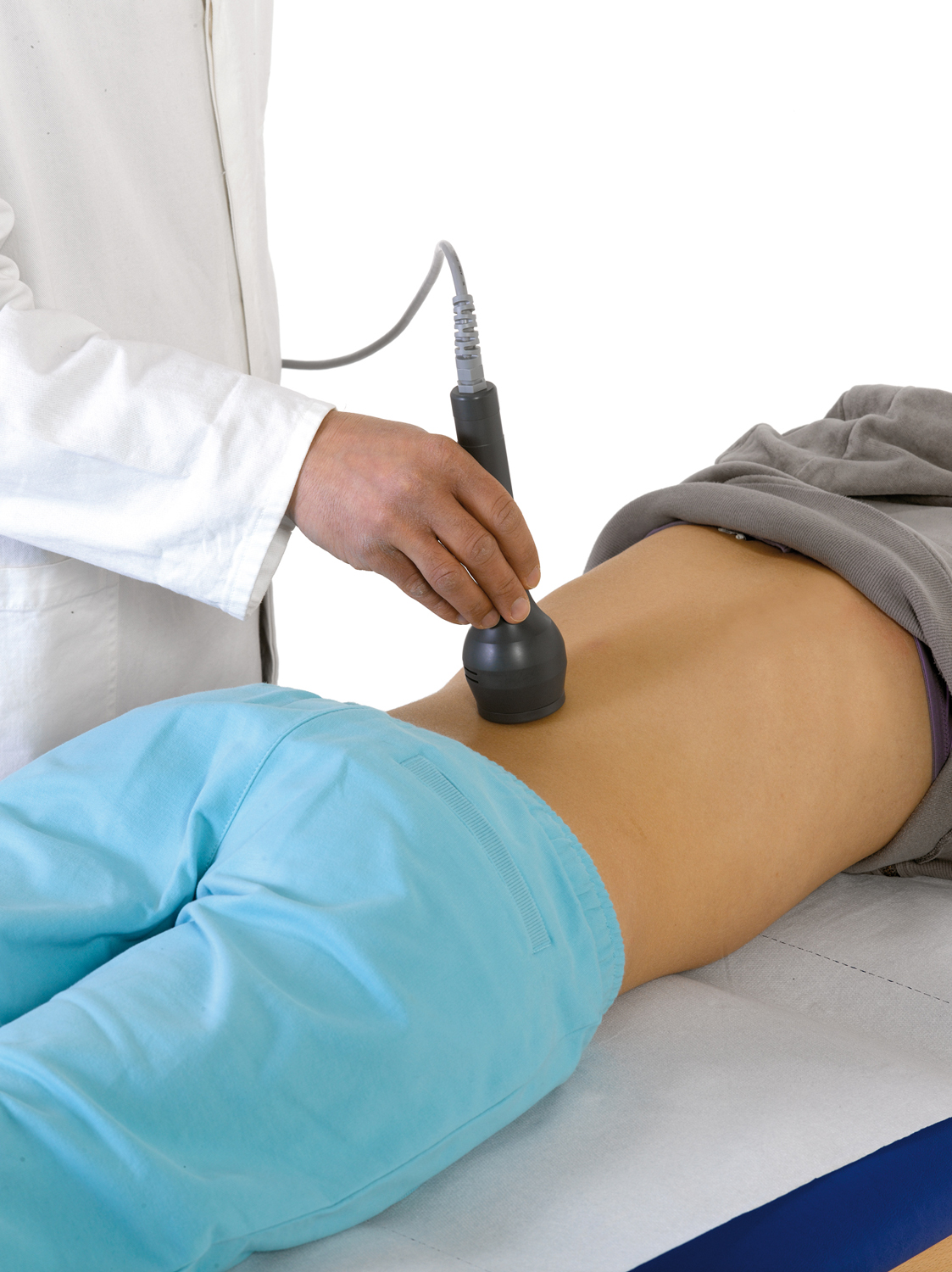

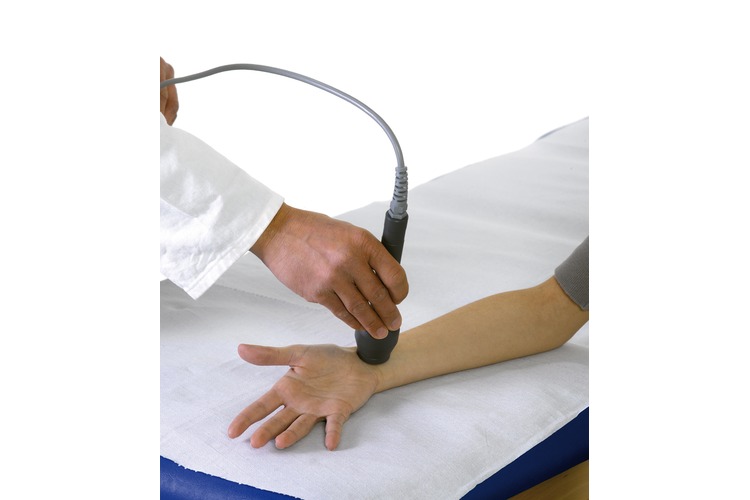

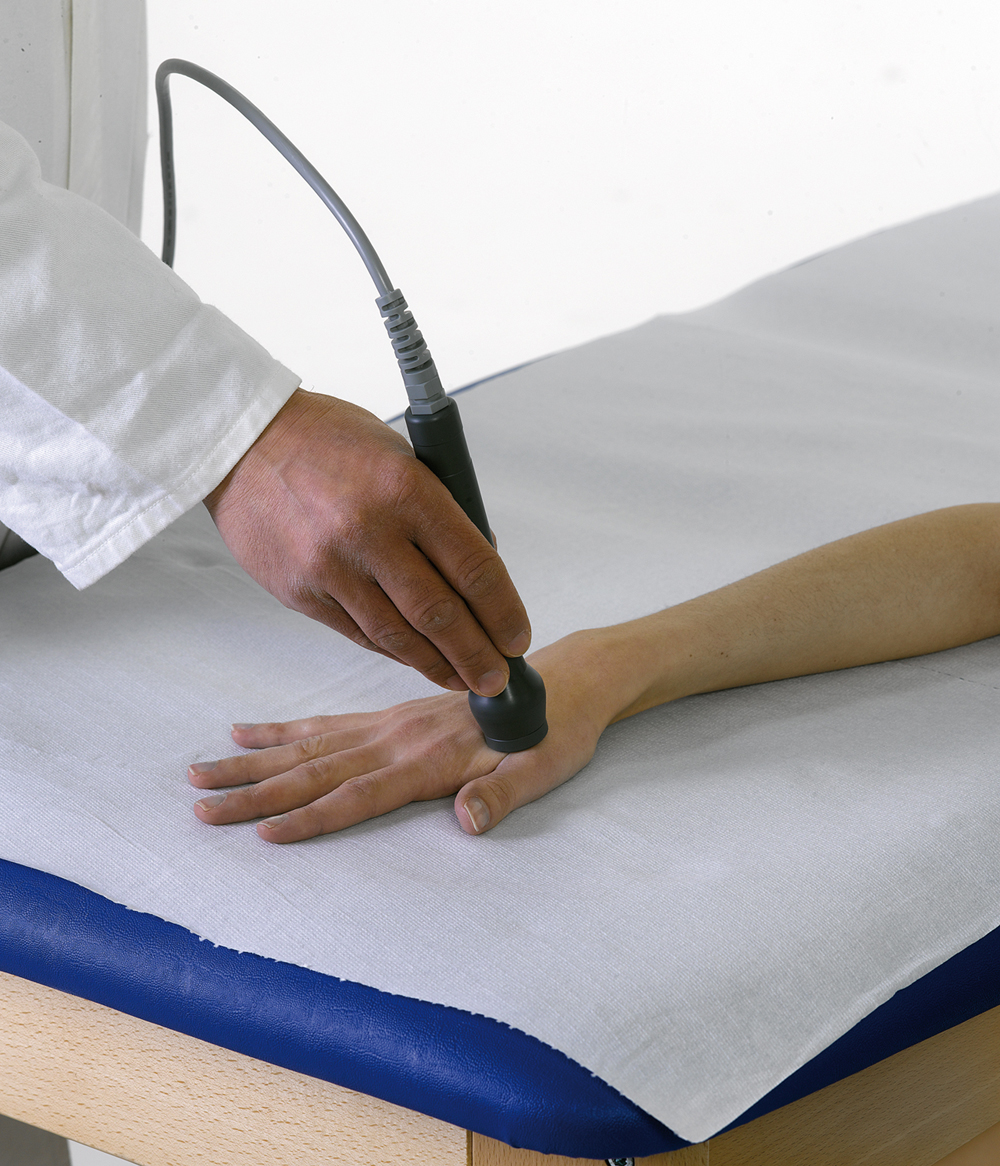

This type of device is used with single-diode or multiple-diode handpieces which are directly put on the skin for the therapeutic treatment. Choosing the laser technology, based on the emission by diodes is motivated by its greater efficiency when considering energy, its longer working life and a simpler maintenance if compared to other technologies which have similar therapeutic results. Twelve different handpieces are available (optional accessories). They are interchangeable and their difference is based on the number of diodes (1-8) and the nominal power transmitted by each diode (25mW – 100mW) up to a maximum of 800 mW for an area of up to 5 cm2. Each handpiece not only has the afore mentioned diodes for therapy emissions (905nm), they also guarantee a perfect pointing of the therapy by the presence of a guiding light generated by other two pointing diodes which generate a visible red light.



The devices propose some pre-set protocols with the recommendable fluence rate for each type of treatment. The operator is free to adjust the treatment time or the frequency, according to the area to be treated and the power of the handpiece in use, in order to convey the fluence rate necessary for the treatment. These devices are provided with secret access code and security key (Interlock), as established by law.


ACCESSORIES SUPPLIED

  • 1 Mains power supply cable
  • 1 User’s manual
  • 2 Spare fuses
  • 1 MLA1 Laser probe 25mW
  • 2 Safety laser goggles
  • 1 Interlock connector
  • 1 Smart-card

DIODE / PROBE CHARACTERISTICS

- Peak power for single diode: 25 W, 50 W, 100 W, 500 W

- Target pointing device characteristics:

  • Target pointing device UNI EN 60601-2-22: 2 light-drive
  • Light-drive device: Led-diode
  • Light-drive color: red
  • Light-drive representation on the impact point: Spot with red as colour
  • Laser-beam positioning: Always to the centre of the simmetry axis of 2 red spots



RECOMMENDED FIELDS:

  1. Rheumatology
  2. Orthopedics
  3. Dermatology
  4. Dentistry
  5. Otorlaryngology
  6. Neurology
  7. Laser acupuncture
Accessories

Accessories

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.

Carry Case

EL0016
Carry case for the unit transport

1-Diode Handpiece - 25mw

EL0028
Handpiece 1 diode, 25mW

1-Diode Handpiece - 50mw

EL0029
Handpiece 1 diode, 50mW

1-Diode Handpiece - 100mw

EL0030
Handpiece 1 diode, 100mW.

3-Diode Handpiece - 75mw

EL0031
Handpiece 3 diode, 75mW.

3-Diode Handpiece - 150mw

EL0032
Handpiece 3 diode, 150 mW.

3-Diode Handpiece - 300mw

EL0033
Handpiece 3 diode, 300 mW.

5-Diode Handpiece - 125mw

EL0034
Handpiece 5 diode, 125mW.

5-Diode Handpiece - 250mw

EL0035
Handpiece 5 diode, 250 mW.

5-Diode Handpiece - 500mw

EL0036
Handpiece 5 diode, 500 mW.

8-Diode Handpiece - 200mw

EL0037
Handpiece 8 diode, 200 mW.

8-Diode Handpiece - 400mw

EL0038
Handpiece 8 diode, 400 mW.

8-Diode Handpiece - 800mw

EL0039
Handpiece 8 diode, 800 mW.

Laser Arm - For 1 Diode Handpiece

EL0040
Arm for 1 diode handpiece with possibility of fixing to trolley.

Laser Arm - For 3/5/8 Diode Handpiece

EL0041
Arm for 3-5-8 diode handpiece with possibility of fixing to trolley.

l1 Arm - For 1 Diode Handpiece

EL0042
Pantograph arm for 1 diode handpiece. Free fixing.

l3-5-8 Arm - For 3/5/8 Diode Handpiece

EL0043
Pantograph arm for 3-5-8 diode handpieces. Free fixing.

Trolley

EL12003
Trolley with tabletop and possibility of fixing non wheeled electromedical equipment and the arms.
Technical Spec.

Technical Spec.

Mains voltage:
230 Vac, 50-60Hz
Mains voltage (on request):
115 Vac, 50-60Hz
Max. Power absorption:
15 VA
Interlock socket/Safety key:
3 contact DIN socket
Backlit LCD Display:
graphic w/b 320 x 240 pixel
Programmable treatment time:
up to 99 minutes
Diode Laser wave length emission:
905 nm
Laser classification EN 60825-1:
3B
Device class 93/42/CEE directive:
II B
Electrical insulation UNI EN 60601-1:
I/BF
Degree of protection by the liquid access UNI EN 60601-1:
IPX0
Programmable pulse frequency:
(200-10.000) Hz
Pulse duration:
100 nsec
Typology for emission of the treatment:
Manual, automatic, continuous emission
Output channels:
1
Stored protocols:
79
Storable protocols on the smart-card:
50
External size:
39 x 13 x 32 cm without probe-holders
Weight:
4,3 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799871

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 40 x 28 h kg 7 mc 0.0672
Documents

Documents


EL12061 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 1.19 MB
Register to access the content

EL12061 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 1.3 MB
Register to access the content

EL12061 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 114.98 KB
Register to access the content

EL12061 - Certificate

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 1.95 MB
