FISIOLASER EXCELLENT 12W - Excellent Line

E
L
1
2
0
8
7
Quantity:

Description

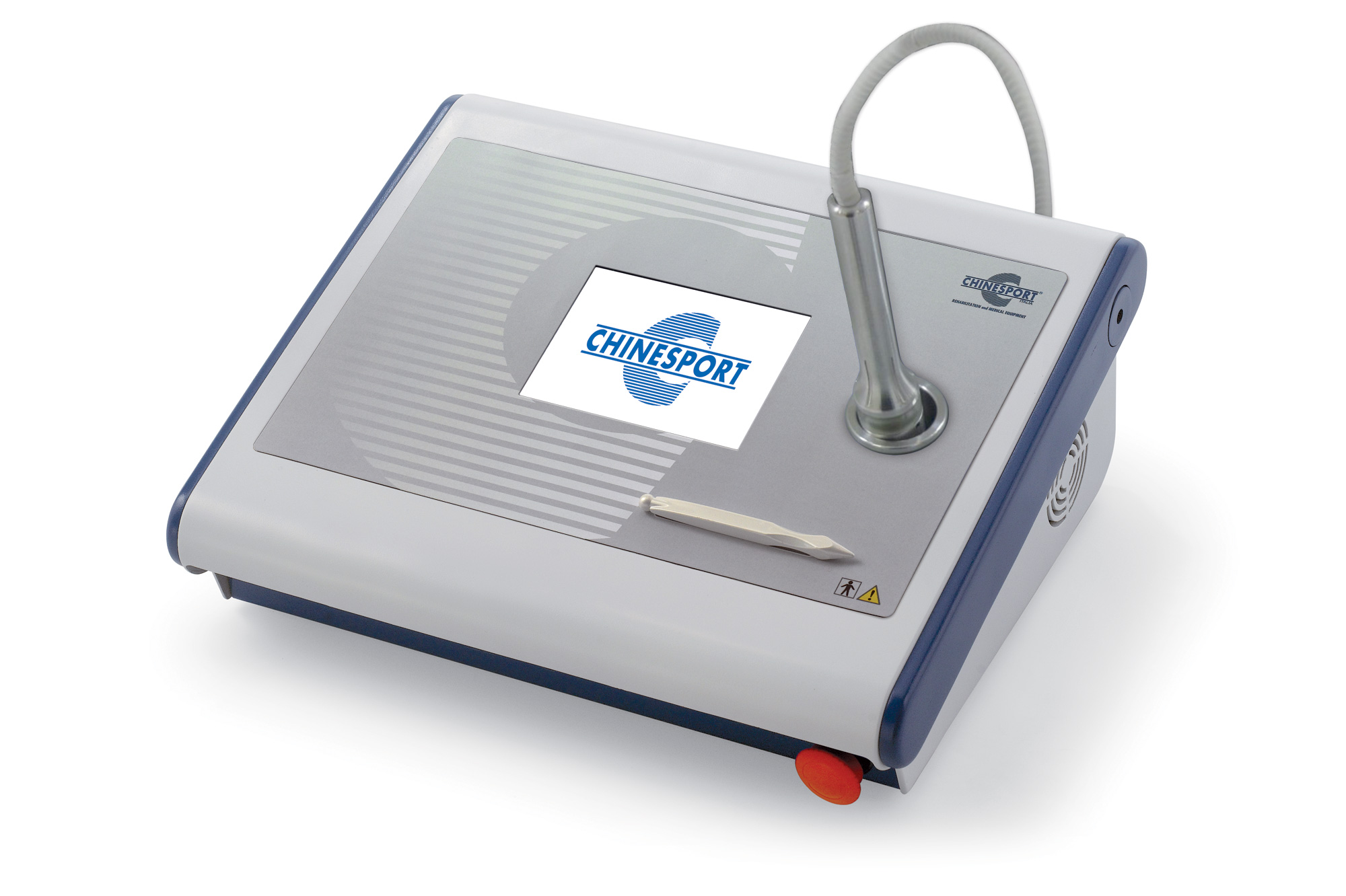

High power (12W) fibre optic laser therapy equipment. FISIOLASER EXCELLENT 12W is an laser system with two length (810nm + 980nm), providing max power output of 12W, in continuous and pulsed modes.



808nm wave length has a great penetration in tissues, and allows the best bio-stimulation effect.
976nm wave length with its good level of water absorption, produce a good local antalgic effect.



The device features pre-loaded tips with standard parameters derived from clinical trials. The effectiveness of the preset protocol is strongly conditioned by the type of patient undergoing treatment. You can select the protocol’s work in relation to the anatomical region to treat pain , therapeutic treatments suggested, o for card patients, as shown in the table below:



Anatomic region Treatments Card patients
According to the anatomical area of the body, the operator can select the most appropriate therapy. In this section will list all the therapeutic protocols for use with FISIOLASER EXCELLENT 8W and 12W In this section, the operator can choose whether to create a card or load an existing patient and stored on secondary storage.



FISIOLASER EXCELLENT 12W is indicated in the treatment of superficial pathologies, for example in general medicine and dermatology fields, and in the treatment of pathologies of the orthopaedic and sport-medicine fields (contusions, bursitis, tendinitis, etc.).

It has a strong bio-stimulating effect, as it spans over the whole therapeutic window of high power therapeutic lasers (HPLS --> High Power Laser System) and it has a very high output power (12watts).


ACCESSORIES SUPPLIED

  • 1 Power cable
  • 2 Fuses
  • 1 Manual of therapies
  • 2 Laser goggles
  • 1 Interlock key
  • 1 Distributor pedal
  • 1 Pen for touch-screen display
  • 1 Smart Card
Accessories

Accessories

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.

Carry Case

EL0016
Carry case for the unit transport

Trolley

EL12003
Trolley with tabletop and possibility of fixing non wheeled electromedical equipment and the arms.
Technical Spec.

Technical Spec.

Power supply:
230 Vac, 50-60 Hz
Power supply (on request):
115 Vac, 50-60 Hz
Maximum power absorbed by the net:
75 VA
Interlock key:
3-pole contacts
Max power:
12W ± 20%
LCD back-lit display:
320 x 240 pixel TOUCH SCREEN
Wavelength:
808 nm - 980 nm
Laser classification:
IV
Selectable percentage of emitted power:
10% - 100%
Emission frequency:
100 Hz – 10000 Hz
Pulsed mode:
10% - 100%
Classification 93/42/CEE:
IIB
Emission:
Continous
Class of isolation EN 60601-1:
I / BF
Protection level from the entrance of liquids EN 60601-1:
IPX0
Programmable treatment:
1-99 min
Protocols in memory:
32
Storable protocols in user memory:
200
Storable protocols in smart card:
200
Dimensions:
39 x 13 x 32 cm
Weight:
4.65 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0800897

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 43 x 50 x 45 h kg 11 mc 0.09675
Video

Video

Documents

Documents


EL12087 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 812.58 KB
Register to access the content

EL12087 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 792.96 KB
Register to access the content

EL12087 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 114.98 KB
Register to access the content

EL12087 - Certificate

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 1.95 MB
