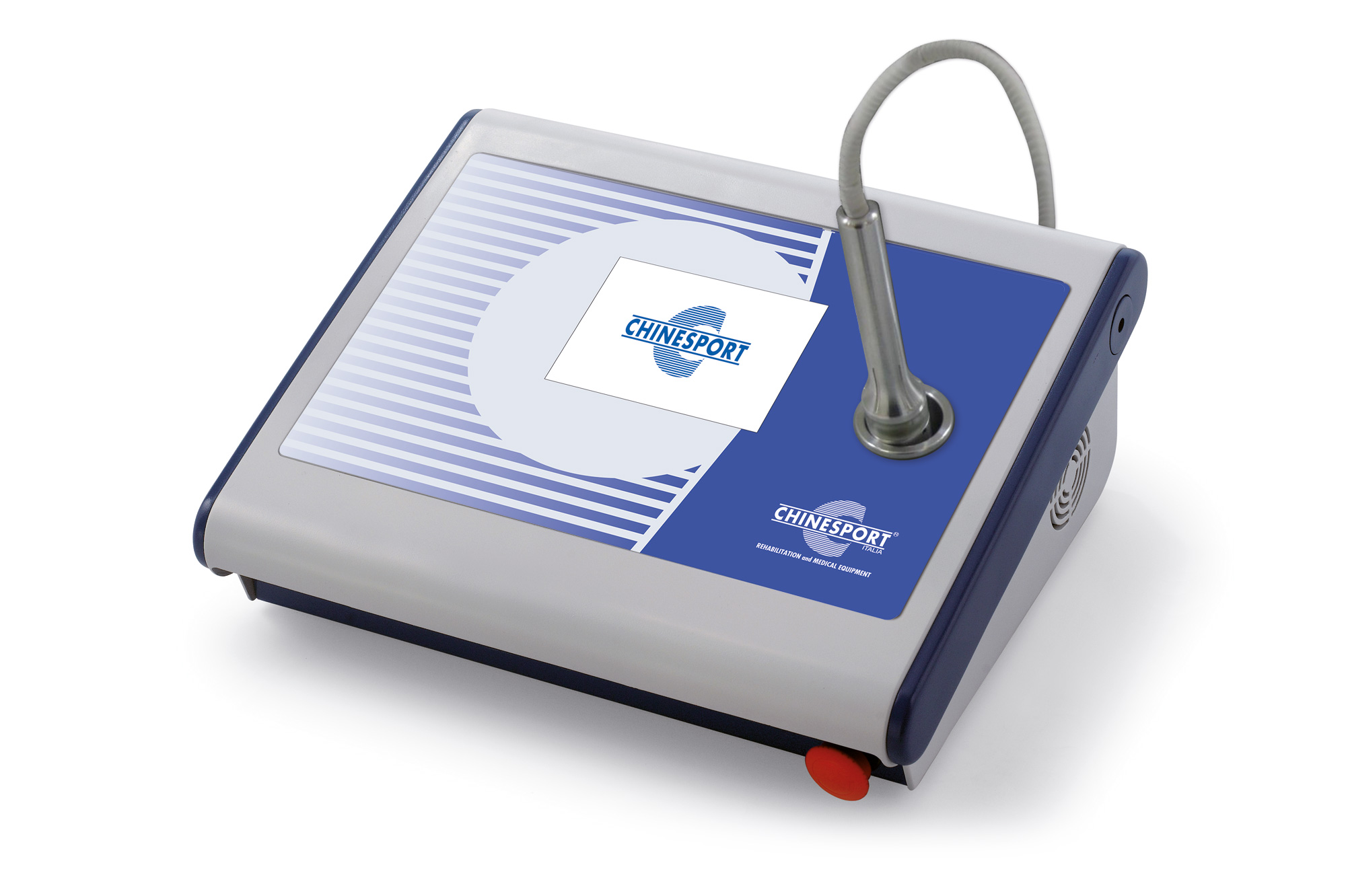

FISIOLASER EXCELLENT 8W Excellent Line

E
L
1
2
0
8
6
Quantity:

Description

FISIOLASER EXCELLENT 8W is a high power laser working with a single wave length of 940nm. With its peak power is possible to supply up to 8W making sure a therapeutic action as an impressive regenerative stimulation in chronic pathologies, in the acceleration of the inflammation resolution and of the edema in acute pathologies as well as the rapid resolution of painful articul, muscular, neurogenal and soft tissue syndromes.



The device features pre-loaded tips with standard parameters derived from clinical trials. The effectiveness of the preset protocol is strongly conditioned by the type of patient undergoing treatment. You can select the protocol’s work in relation to the anatomical region to treat pain , therapeutic treatments suggested, o for card patients, as shown in the table below:



Anatomic region Treatments Card patients
According to the anatomical area of the body, the operator can select the most appropriate therapy. In this section will list all the therapeutic protocols for use with FISIOLASER EXCELLENT 8W and 12W In this section, the operator can choose whether to create a card or load an existing patient and stored on secondary storage.



The new series of high power laser is realised in optical fibre as a vehiculator of high laser power (8W-12W) directly to the skin, without any dispersion. Therefore, FISIOLASER EXCELLENT 8W allow an immediate improvement in the symptoms of inflammatory and degenerative pathologies in the orthopaedic, neurologic, dermatologic domain and a reduction of recovery times and presents itself as an indispensible therapy, especially in Sports Medicine, since it allows rapid recovery for many sportsmen, for whom time is a determining factor in their career.



ACCESSORIES SUPPLIED

  • 1 Power cable
  • 2 Fuses
  • 1 Manual of therapies
  • 2 Laser goggles
  • 1 Interlock key
  • 1 Distributor pedal
  • 1 Pen for touch-screen display
  • 1 Smart Card
Accessories

Accessories

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.

Carry Case

EL0016
Carry case for the unit transport

Trolley

EL12003
Trolley with tabletop and possibility of fixing non wheeled electromedical equipment and the arms.
Technical Spec.

Technical Spec.

Power supply:
230 Vac, 50-60 Hz
Power supply (on request):
115 Vac, 50-60 Hz
Maximum power absorbed by the net:
70 VA
Interlock key:
3-pole contacts
Max power:
8W ± 20%
LCD back-lit display:
320 x 240 pixel TOUCH SCREEN
Wavelength:
940 nm
Laser classification:
IV
Selectable percentage of emitted power:
10% - 100%
Emission frequency:
100 Hz – 10000 Hz
Pulsed mode:
10% - 100%
Classification 93/42/CEE:
IIB
Emission:
Continous
Class of isolation EN 60601-1:
I / BF
Protection level from the entrance of liquids EN 60601-1:
IPX0
Programmable treatment:
1-99 min
Protocols in memory:
32
Storable protocols in user memory:
200
Storable protocols in smart card:
200
Dimensions:
39 x 13 x 32 cm
Weight:
4.65 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0800892

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 50 x 45 x 45 h kg 10 mc 0.10125
Video

Video

Documents

Documents


EL12086 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 812.58 KB
Register to access the content

EL12086 - User and maintenance manual

User and Maintenance Manual
Language: English
DOWNLOAD
PDF 792.96 KB
Register to access the content

EL12086 - Declaration of Conformity

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 114.98 KB
Register to access the content

EL12086 - Certificate

Declaration of conformity
Language: English/Italian
DOWNLOAD
PDF 1.95 MB
