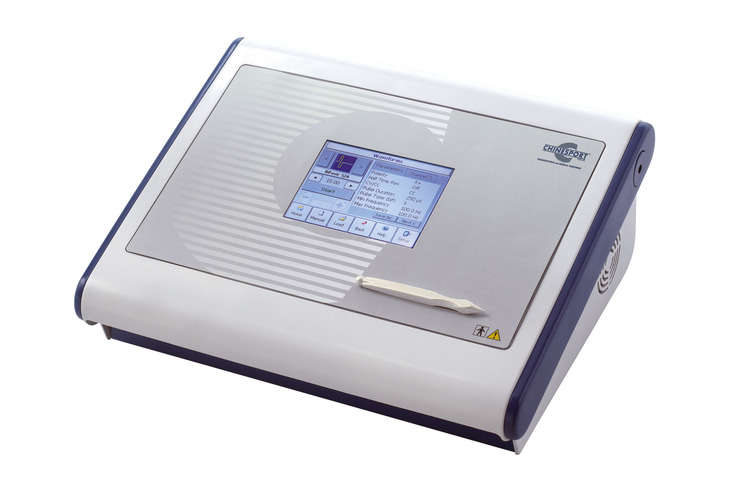

MEDICSTIM EXCELLENT - Excellent Line

E
L
1
2
0
8
4
Quantity:

Description

Electro therapy equipment with 2 channels. Muscular monitoring.



MEDICSTIM units are a high quality devices that assures complete patient and operator safety (the unit complies with international regulations) in addition to offering numerous types of therapeutic applications. The electrotherapy units in the MEDICSTM series feature a control panel that is optimized in accordance with the specific field of application. All operating parameters are managed and controlled in real time by the user thorugh a large, backlit interface: the display shows all operational messages, the state of the unit during normal therapeutic operation, and any error messages.



 WAVE FORMS PROVIDED

GALVANIC

continuous; interrupted; MF

DIADYNAMIC

single-phase; diphase; sync. single-phase; sync. diphase; short period; long period

IMPULSES

rectangular; triangular; traebert

FARADIC

rectangular; triangular; neodynamic

TENS

burst; random; modulated; at tens

BIPHASIC

symmetric; asymmetric

INTERFERENTIAL

quadripolar, iso-planar; vectorial; bipolar; stimulating: russian current (Kotz)


Micro currents - High Voltage HVPC - H Waves - APS - Creation of I/T Rheobase and Chronaxy curve



You can create customized therapeutic programs, customized sequences, customized I/t curves. As default the device allows storage of the customized programs on the user memory, but you can save the customized program on the smart card. You can change the output channel and modify any parameter. You can also store I/t curves in the same Smart Card that the treatment protocols are stored in. The I/t CURVE is the graphic representation of perceptible thresholds of muscle stimulation. It is useful for checking progress following therapy or an operation. The I/t curve can be generated by the user, by creating some points and it can be saved in the internal memory or in the smart-card.



Medicstim Excellent can provide electrotherapy treatments for the following conditions:

  • Ankle pain
  • Knee pain
  • Algodistrophies reflex
  • Local dermal anesthesia (Fentanyl)
  • Peripheral anesthesia
  • Hips osteoarthritis
  • Ankle osteoarthritis
  • Cervical osteoarthritis
  • Knee osteoarthritis
  • Elbow osteoarthritis
  • Foot osteoarthritis
  • Hand osteoarthritis
  • Elbow osteoarthritis
  • Mandibular osteoarthritis
  • Wrist osteoarthritis
  • Shoulders osteoarthritis
  • Rheumatoid arthritis
  • Bursitis
  • Peri-articular calcifications
  • Cervico-brachialgia
  • Keloids
  • Muscular contractions
  • Contusions
  • Macular degeneration
  • Reduction in articular mobility
  • Primary dysmenorrhea
  • Peripheral circulatory disorders
  • Sprains
  • Post-surgical acute pain
  • Post-surgical chronic pain
  • Phantom limb pain
  • Dorsalgia
  • Lymphatic drainage
  • Sequential drainage- legs
  • Sequential drainage- upper arms
  • Cystoid macular edema (uc)
  • Epicondylitis
  • Medial epicondylitis (golfer’s elbow)
  • Plantar fasciitis
  • Fibromyalgia
  • Fractures due to missed union (uc)
  • Faecal incontinence
  • Post-surgery faecal incontinence
  • Stress urinary incontinence
  • Urgency urinary incontinence
  • Post-surgery urinary incontinence
  • Lower limbs moderate venous insufficiency
  • Ionto-PatchTest
  • Hyperkeratosis
  • Palmar-plantar hyperhidrosis
  • Post traumatic muscle hypotrophy
  • Muscular lesions
  • Lichen planus
  • Lymphoedema
  • Acute lumbago
  • Chronic lumbago
  • Lumbosciatic pain
  • Metatarsalgia
  • Myalgia
  • Big muscles myalgia
  • Small muscles myalgia
  • Peripheral neuropathy
  • Neuralgia
  • Trigeminus neuralgia
  • Inter-costal neuralgia
  • Radial neuralgia
  • Ulnar neuralgia
  • Post herpetic neuralgia
  • PEFS phase 1
  • Hips periarthritis
  • Shoulder periarthritis
  • Decubitus ulcers
  • Prev/delay non-use atrophy
  • Pubalgia
  • CMV retinitis in people with AIDS
  • Retinitis pigmentosa
  • Diabetic retinopathy
  • Muscular rheumatism
  • Facial rejuvenation
  • Muscular passive warm-up
  • Rhizoarthrosis
  • Sacralgia
  • Osgood-Schlatter syndrome
  • Stargardt’s syndrome
  • Volkmann syndrome
  • Myofascial pain syndrome
  • Shoulder-hand syndrome
  • Musclular spasms and contractures
  • Ligamentous sprains
  • Tendonitis
  • Biceps tendonitis
  • Achilles tendonitis
  • Patellar tendonitis (jumper’s knee)
  • Tendinosis
  • Muscular passive tonification
  • Muscular anti-fatigue treatment
  • Pain management Gate Mechanism
  • Revitalizing tonifying treatment
  • Muscoloskeletal injuries
  • Carpal Tunnel syndrome
  • Venous stasis ulcer
  • Diabetic ulcers
  • Cutaneous ulcers
  • Warts
  • Vitiligo


ACCESSORIES SUPPLIED

  • 1 Power cable
  • 1 Manual
  • 2 Fuses
  • 4 Electrodes 6x8 cm
  • 4 Electrode sponges 8x10 cm
  • 4 Electrodes 5x5 cm
  • 4 Electrode sponges 7x6 cm
  • 2 Elastic band 100 cm
  • 2 Elastic band 60 cm
  • 1 Electro therapy output cable
  • 1 Smart card
  • 1 TouchScreen pen
Accessories

Accessories

Elastic Band 60x3 H Cm

AC0665
Elastic band, cm 60x3

Elastic Bands 100x3 H Cm

AC0667
Elastic band, cm 100x3

Personal Smart Card

EL0001
10-pack to programme the patients' rehabilitation protocol, so as to facilitate and expedite the times of machine use.

Sponges 7 X 6, 2 Pcs

EL0009
Sponges 7 X 6 cm, 2 pieces.

Sponges 8 X 10 Cm, 4 Pcs

EL0010
Sponges 8 x 10 cm, 4 pieces

Electrodes, 5 X 5 Cm, 2 Pcs

EL0011
Electrodes 5 x 5 cm, set of 2 pieces

Electrodes, 6 X 8.5 Cm, 4 Pcs

EL0012
Electrodes, 6 x 8.5 cm, set of 4 pieces

Output Cable

EL0015
Additional 2-channel output cable

Carry Case

EL0016
Carry case for the unit transport

Link Cable

EL0082
Cable to connect electrotherapy and ultrasound machines.

Trolley

EL12003
Trolley with tabletop and possibility of fixing non wheeled electromedical equipment and the arms.

Vacuum Therapy

EL12004
The Vacuum therapy is a therapeutical method which uses the effect of the vacuum in the body by combining the improvement of the tissue microcirculation with...

Urology Kit

EL12005
This kit consists of: 2 probes and two rings (1 vaginal and 1 anorectal) for KOMBI and MEDICSTIM models.

Sponges 7x6 Cm

EL13009
Sponges, set of 25 pieces, 7 x 6 cm.

Sponges 8 X 10 Cm, 25 Pcs

EL13010
Sponges 8 x 10 cm, set of 25 pieces

Electrodes, 5 X 5 Cm, 25 Pcs

EL13011
Electrodes 5 x 5 cm, set of 25 pieces

Electrodes, 6 X 8.5 Cm, 25 Pcs

EL13012
Electrodes, 6 x 8.5 cm, set of 25 pieces

Elastic Straps 60x3 H Cm, 20 Pcs

EL13013
Elastic straps 60 x 3 cm, set of 20 pieces

Elastic Straps 100x3 H Cm, 20 Pcs

EL13014
Elastic straps, cm 100, set of 20 pieces
Technical Spec.

Technical Spec.

Mains power supply:
230 Vac, 50-60Hz, ±10%
Mains power supply:
115 Vac, 50-60Hz, ±10% * upon request
Max absorbed power from the mains:
35 VA
Backlit LCD display:
color 320 x 340 Touch screen
Programmable treatment time:
up to 60 minutes
Electrical insulation class UNI EN 60601-1:
I / BF
Device class 93/42/CEE:
II B
Degree of protection against liquids UNI EN 60601-1:
IPX0
Emission frequency:
32 waveform families; 39 waveform in total
Operation:
constant voltage; constant current
Peak currents (Load resistance 1Kohm):
pulsed currents - 100mA; diadynamic currents - 70mA; continuous currents - 50mA
Peak voltage (Load resistance 1Kohm):
pulsed currents - 100V; diadynamic currents - 70V; continuous currents - 50V
Muscular monitoring:
I/t curve, rheobase and chronaxy
Output channels:
2
Stored protocols:
243
Storable protocols in SmartCard:
100
Storable protocols:
200
External size (width x height x depth):
39 x 13 x 32 cm
Unit body weight:
4.7 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0799827

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 40 x 30 h kg 10 mc 0.072
